11 DATA SHEETS IVO SMART 12/50-2 117V
MAIN INFORMATION
Design : by MASTERVOLT
Manufacturer : ISO 9001 certified
Model / name : IVO Smart 12/50-2
Product : battery charger/rectifier
Article no : 04-31-15010
Colour : • RAL 5021, wasserblau
• RAL 7037, grey
• RAL 9006 silver grey
Weight excl. packing : 2.6 kg
Shipping weight : 4 kg
Cabinet typ : Smart 1 cabinet
Dimensions : (hxwxd) 4’ x 8.3’ x 12.3’ 82 x 187 x 313 mm
(excl. mounting brackets)
Carton dimensions : (hxwxd) 5.1’ x 8.7’ x 13.8’ 130 x 220 x 350 mm
Type of packing : carton recycable
Available : for 117V / 60 Hz
Availability : normally from stock
TECHNICAL SPECIFICATIONS
Function apparatus : charging of 12V lead acid batteries and power simultanously loads
Nominal input voltage : 120V AC, 1ph, 3wire, 50/60 Hz
Input voltage range full specs : 90..160V, 50/60 Hz, ± 5%
Input voltage range no-defects : 0..160V, 33-80 Hz
Input current : at 120V AC: 6.4A
Inrush current : no inrush current, soft start, according to IEC 1003-3
Power factor : 1, power factor controlled
Max. input power : 850 Watt
Efficiency : 81%
Output voltage : nominal 12V DC
Output current : nominal 50 Amps
Charge characteristic : three-step, fully automatic, IUoUo, programmable
Kind of batteries : open & sealed lead acid batteries
Charge voltage 25°C : • bulk voltage 14.40V • absorption 14.25V
• wet float 13.25V • gel float 13.8V
Return Amps : 2.5 Amps
Min. Absorption time : 15 minutes
Max. Bulk/abs. time : 8 hours
Return new cycle voltage : 12.8V, delay 30 seconds
Temperature compensation : 30 mV/°C, by temperature sensor
Voltage sense : fully automatic compensation
Ripple voltage : max. 100mV rms, resistive load, full power
Voltage accuracy : voltage ± 2%
Current accuracy : current ± 3%
Maximum output : • 50 Amps at 120 Volt at 77°F (25°C) ambient
• 45 Amps at 120 Volt at 104°F (40°C) ambient
DC leakage drain : < 10 mA
Number of outputs : one main output and one 3 Amps Slave Charger
DC connections : external
Jumper selections : • gel/wet battery selection
• forced to float
• diode splitter compensation
DATA SHEETS

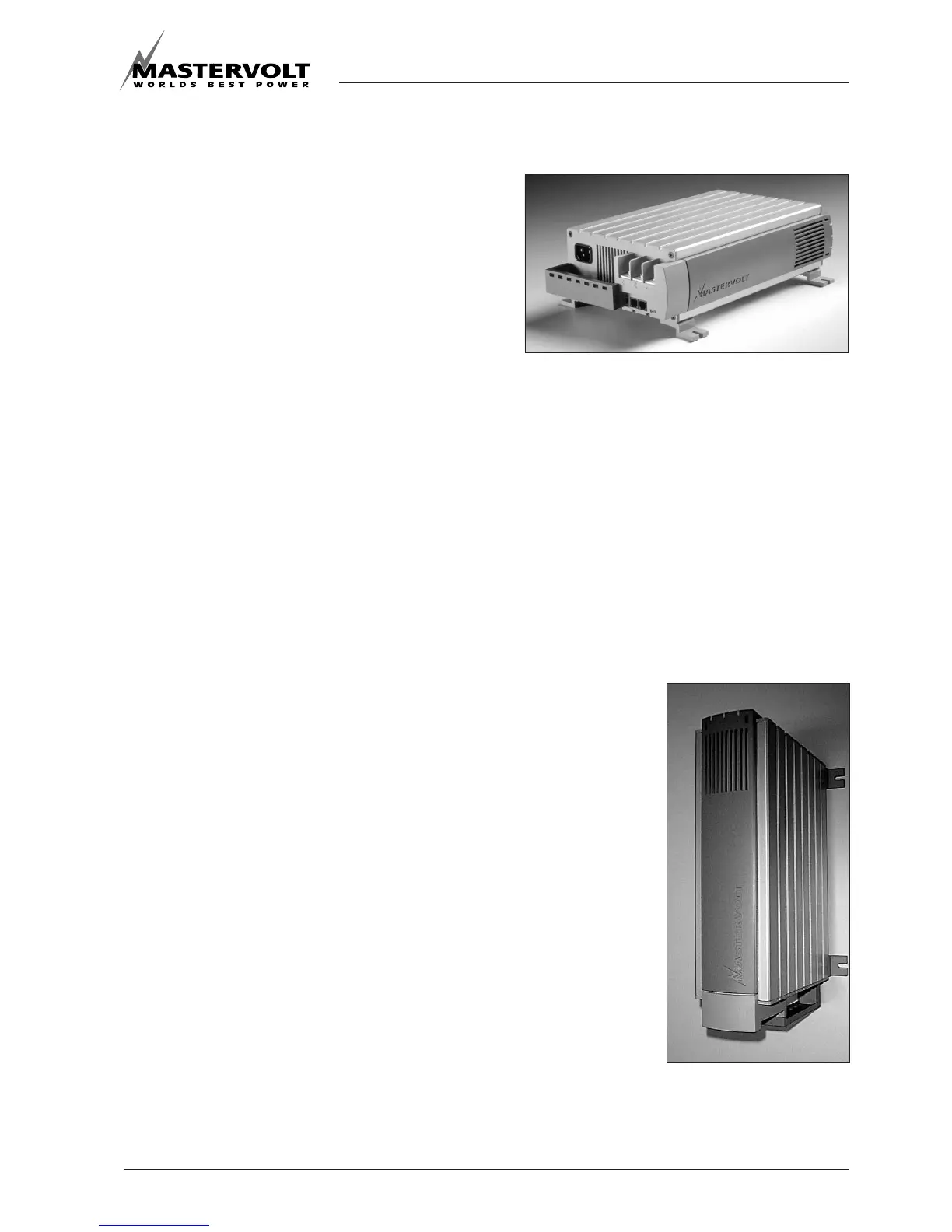

IVO Smart 12/50-2 battery charger.
The IVO Smart can be installed in
various ways. The mounts can be
used in four different positions
(floor/wall/ceiling position).
