Mass Charger 24/50-2, 24/75, 24/75 (120V), 24/100, 3-24/100, 48/25, 48/50 – User and Installation Manual
WARNING
Let installation work be done by a licensed
electrician. Before beginning with the
connection of the wiring, make the AC
distribution as well as the DC distribution
voltage free.
CAUTION!
Too-thin cables and/or loose connections can cause
dangerous overheating of the cables and/or terminals.
Therefore tighten all connections well, in order to limit
transition resistance as far as possible. Use cables of
the correct size.
If the battery temperature remains within
15-25°C, the battery temperature sensor is
optional.
The Mass Charger supports MasterBus and RS 232
compatible remote control panels.
The following schematic illustrates the general placement of the Mass Charger. It is not meant to provide detailed wiring
instructions for any particular electrical installation.

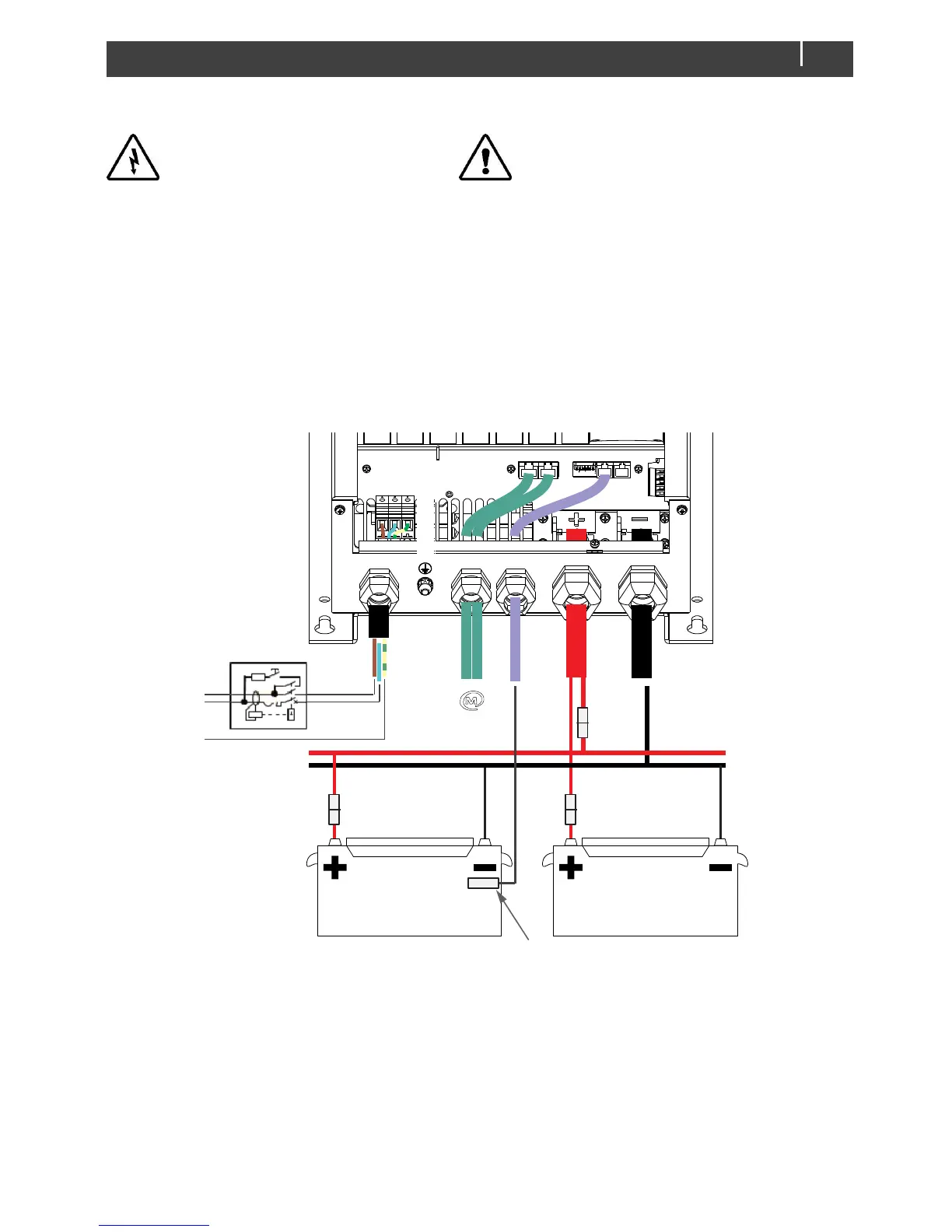

Figure 5. Installation drawing of the Mass Charger
BATTERY BANK 1
(main battery bank)
Temperature sensor
BATTERY BANK 2
Battery
fuse
Battery
fuse
Charger
fuse
L
N
PE/GND
RCD
