Mastervolt Whisper 12 User Manual

EN / WHISPER 6 /12 Mobile / November 2004 9
INFORMATION
2
3
4
8
9
18
1617 36 22 38
37
11
20
24
18
35
30
32
31
29
26
5 33 25 1 28 21
19
20
24
18
17
35
23
3627181638
14 15
7
121234
13
6
39
40
41
42
11
44
43

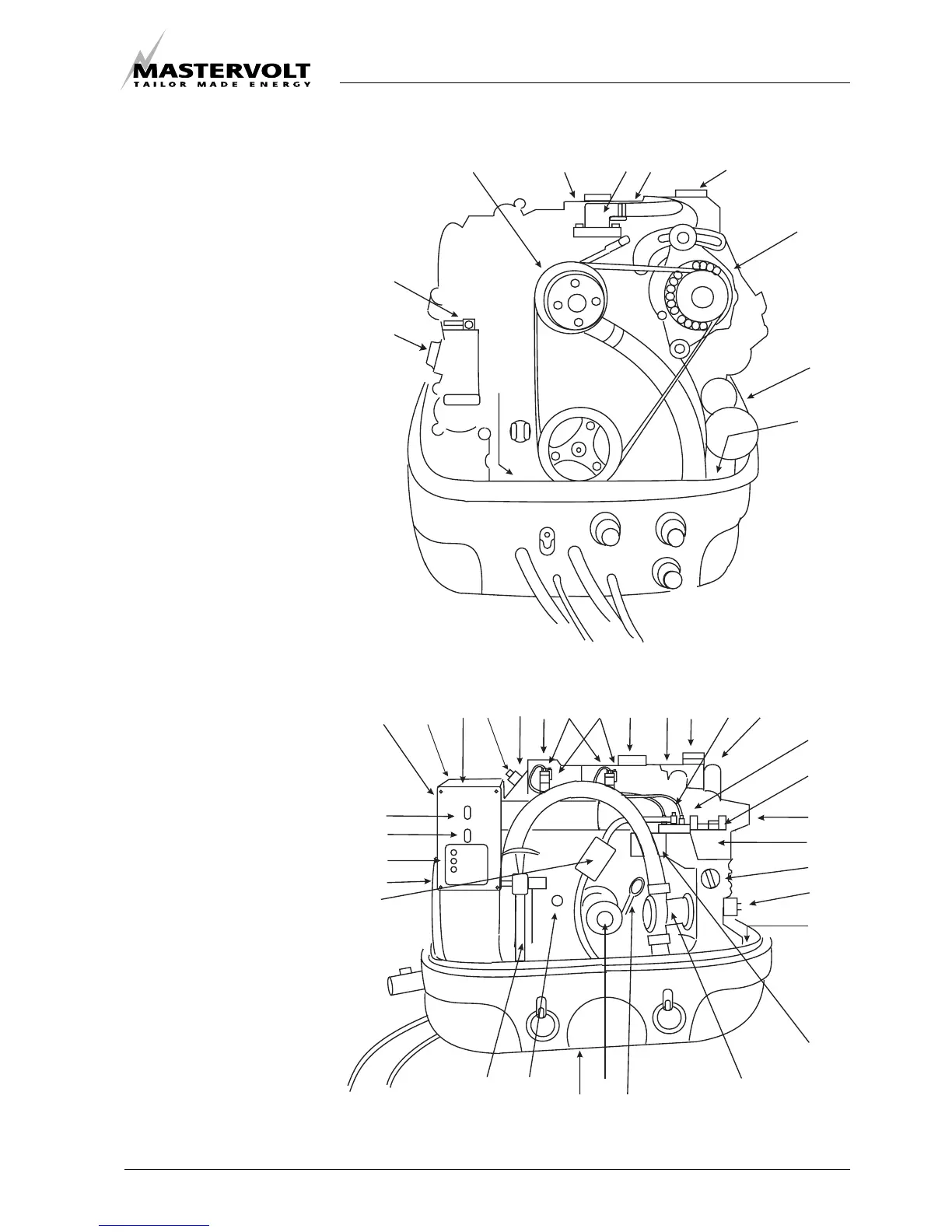

Fig. 2: Overview Whisper 6/ 12.
2.4 COMPONENTS
2.4.1 Main components to identify
1 Air inlet;
2 Starter motor;
3 Battery connection ( negative);
4 Battery connection ( positive);
5 AC 230V wiring;
6 AC 230V output connection box;
7 Fuel filter;
8 Fuel pipe inlet;
9 Fuel pipe return;
10 Bypass hose air vent;
11 Cooling connections;
12 Exhaust manifold (water cooled);
13 Thermo-switch alternator;
14 Injector 2x W6000; 3x W12000;
15 Glowplug 2x W6000: 3x W12000;
16 Valve cover;
17 Circulation pump engine cooling;
18 Filling cap oil 2x;
19 Solenoid;
20 Electric fuel lift pump;
21 Water pump alternator cooling;
22 Cooling liquid temperature switch;
23 Fuel pressure pump
24 Oil pressure switch;
25 Oil sump pump;
26 Exhaust connection;
27 Fuel vent screw;
28 Oil level indicator;
29 Control panel;
30 Capacitors / (optional:
W12000 voltage regulator);
31 Fuse 1;
32 Fuse 2;
33 Remote control cable;
34 Cooled exhaust bent;
35 RPM adjustment screw;
36 Thermostat housing;
37 Alternator;
38 Filling cap coolant;
40 Drain plug coolant;
41 Stop lever;
42 Oil filter;
43 Digital Diesel Control Unit;
44 Air ventilation connection.
