Mastervolt WHISPER 3,5 Installation Manual

July 2005 / MOBILE WHISPER 3,5 / EN 27
DIAGRAMS
& DRAWINGS

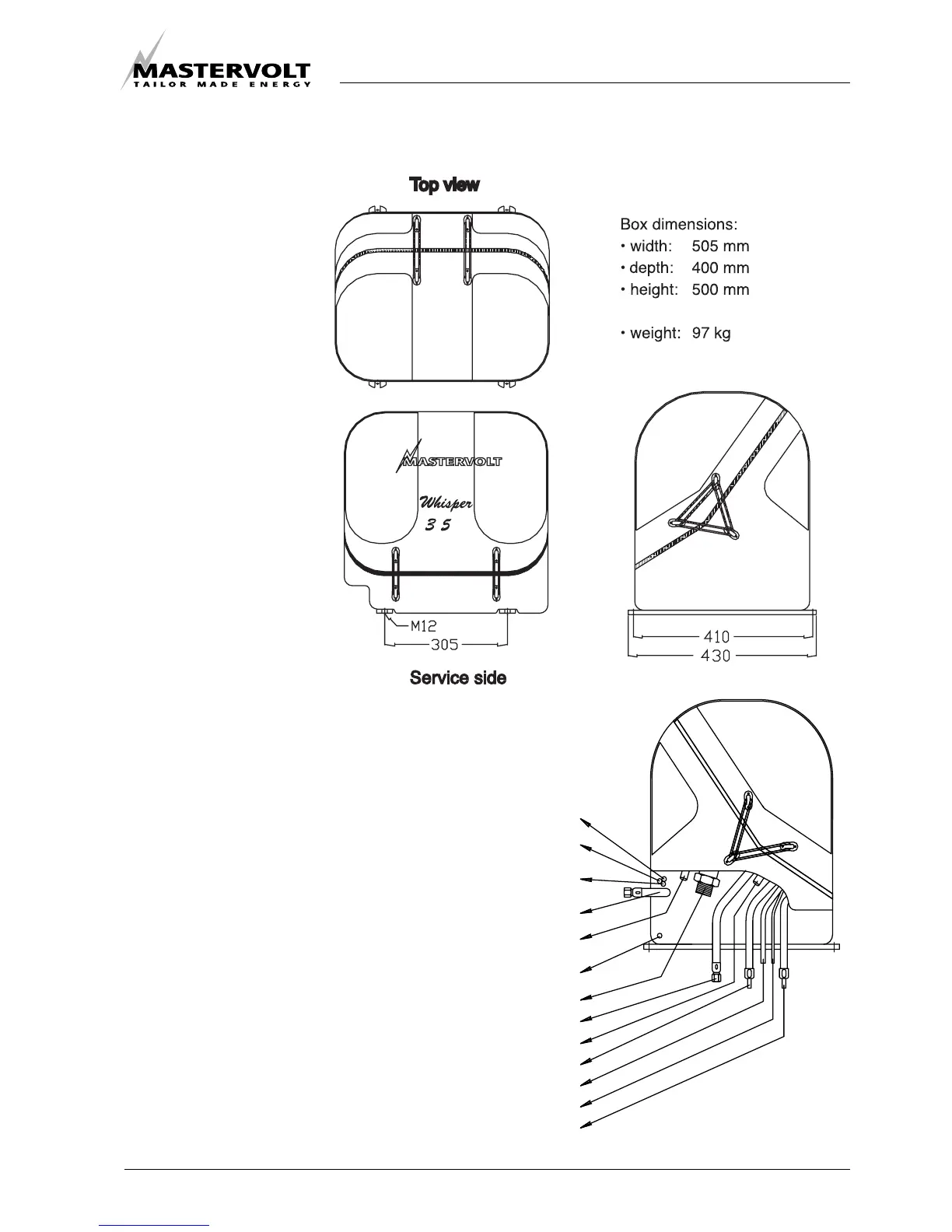

4.6 WHISPER 3,5 DIMENSIONS
,
1
2
3
4
5
6
7
8
9
10
11
12
13
Fig. 32.
1 Fuel lift pump cable (41)
2 battery connection (positive) (3)
3 Connectors radiator temperature switch (13)
4 oil pipe out (42)
5 Cooling water out (10)
6 Battery connection (negative) (4)
7 Exhaust connection (26)
8 Oil pipe in (43)
9 Cooling water in (11)
10 Fuel pipe return (9)
11 AC 230V wiring (5)
12 Remote control cable (33)
13 Fuel pipe inlet (8)
