INSTALLATION
8 Copyright © 2009 Mastervolt / May 2009 / Whisper 6/8/12/16 Ultra for mobile applications / EN

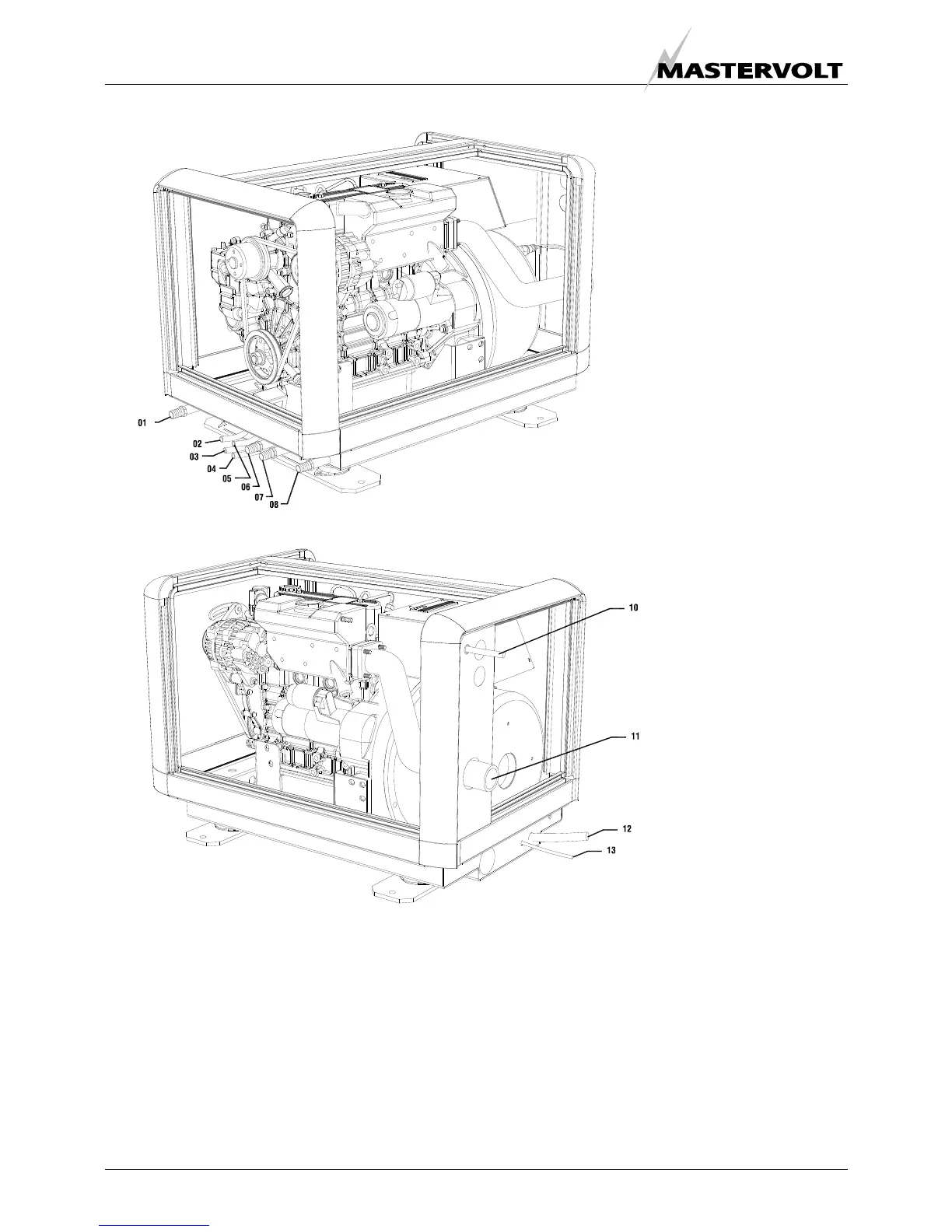

Fig. 7 Connections Whisper 6 Ultra for mobile application
01 Coolant generator in
02 Battery positive (+)
03 Fuel out Ø8mm
04 Fuel in Ø8mm
05 Battery negative (–)
06 Coolant engine out
07 Coolant engine in
08 Coolant generator out
10 Expansion tank
11 Exhaust 1½”
12 AC power output
13 Remote control
