Mastervolt WHISPER 6 ULTRA

DIAGRAMS & DRAWINGS
EN/ Whisper 6/8/12/16 Ultra for mobile applications / May 2009 / Copyright © 2009 Mastervolt 33
4 DIAGRAMS & DRAWINGS
4.1 LAYOUT GENERATOR CONTROL FOR WHISPER 6, 8 AND 12 ULTRA WITH 230VAC FAN

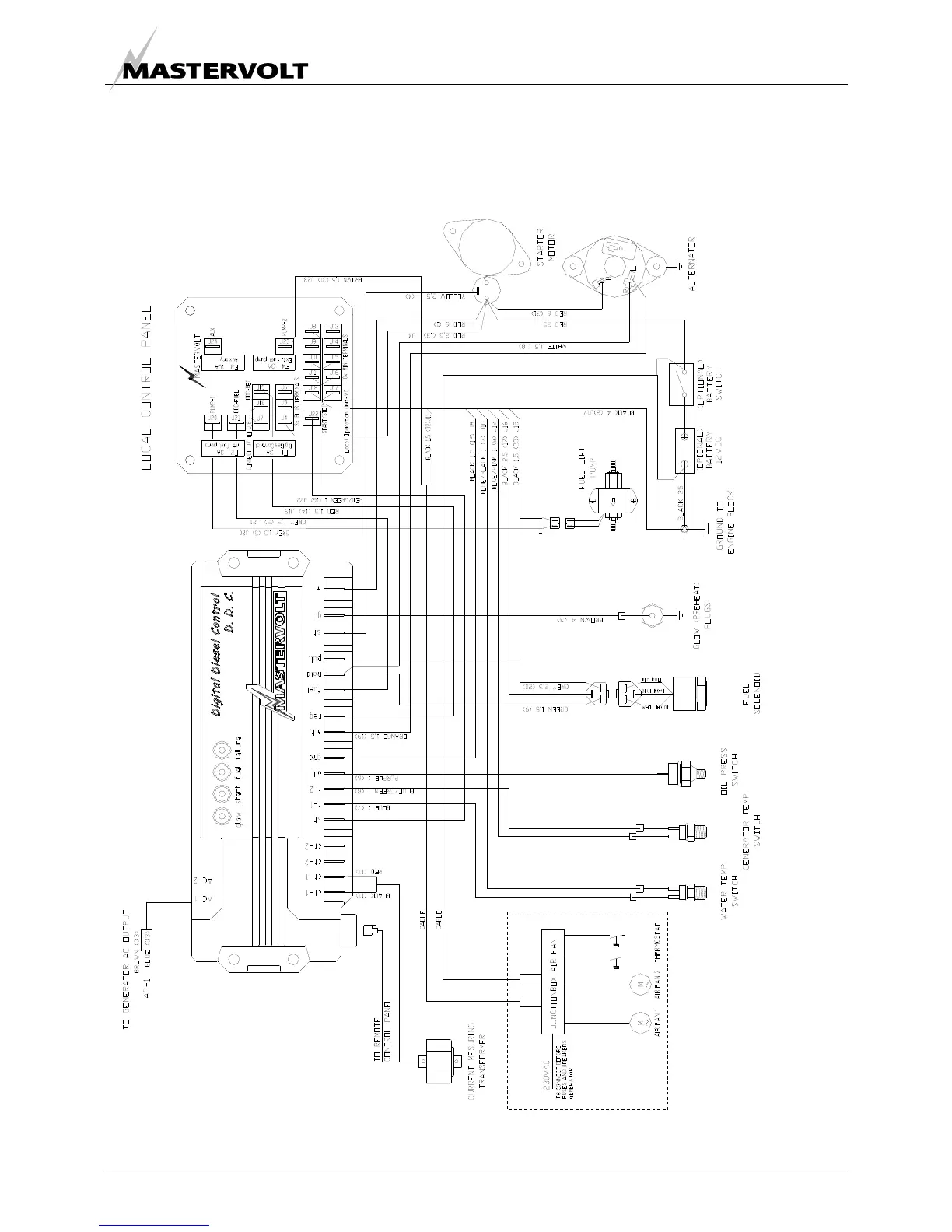

Fig. 39: Layout generator control for Whisper 6 Ultra, 8 Ultra and 12 Ultra with 230VAC radiator fan
Optional control for two speeds fans. See chapter 4.8
