INSTALLATION SPECIFICATIONS
US / WHISPER 15/20 ULTRA - Three Phase / October 2008 / Copyright © 2008 Mastervolt 23

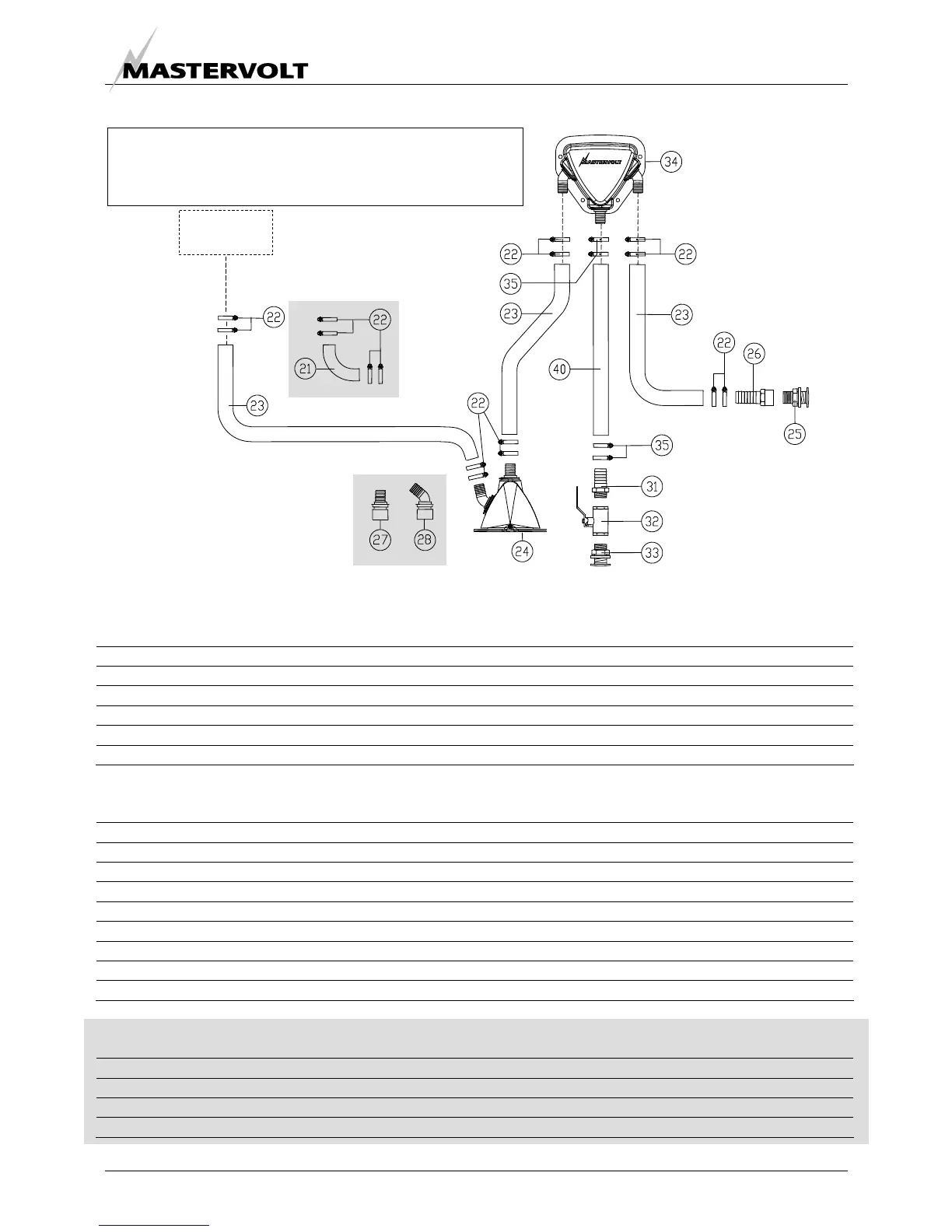

Figure 26: Delta exhaust kit 51 mm and Delta Water/gas separator kit 51mm
DELTA EXHAUST KIT 51 mm
pos. qty article no description
22 8 50221505 Hose clamp stainless 40-60 mm
23 3m 50220035 Marine exhaust hose 51mm (2")
24 1 50230094 Waterlock 51 mm Delta
25 1 50230034 Brass hull fitting hose connection 1½"x70
26 1 50221024 Female hose connection 1½"x 50
TOTAL 50230252 DELTA EXHAUST KIT 51 mm
DELTA WATER/GAS SEPARATOR KIT 51MM
pos. qty article no description
22 4 50221505 Hose clamp stainless 40-60 mm
35 4 50221504 Hose clamp stainless 32-44 mm
23 2.5m 50220035 Marine exhaust hose 51mm (2")
40 1.5m 50220033 Marine exhaust hose 40 mm (1⅝”")
31 1 50221015 Male hose connection 1¼” x 40mm
32 1 50230044 Lever operated ball valve FF 1¼”
33 1 50230033 Brass through hull fitting 1¼” x 70
34 1 50230098 Water/gas separator 51/40/51mm Delta
TOTAL 50230262 Delta water/gas separator kit 51mm
OPTIONAL INSTALLATION MATERIALS
pos. qty article no description
21 1 50230077 Elbow 90° adapter exhaust hose 51mm
22 4 50221505 Hose clamp stainless 40-60 mm
27 1 50230114 Straight coupling Delta 51mm
28 1 50230115 Elbow (45º) Delta 51mm
According to ABYC recommendations all hose connections
must be fitted with two hose clamps
Maximum torque hose clamps: 12Nm / 105 InLbs
