INSTALLATION SPECIFICATIONS
24 Copyright © 2008 Mastervolt / October 2008 / WHISPER 15/20 ULTRA - Three Phase / US

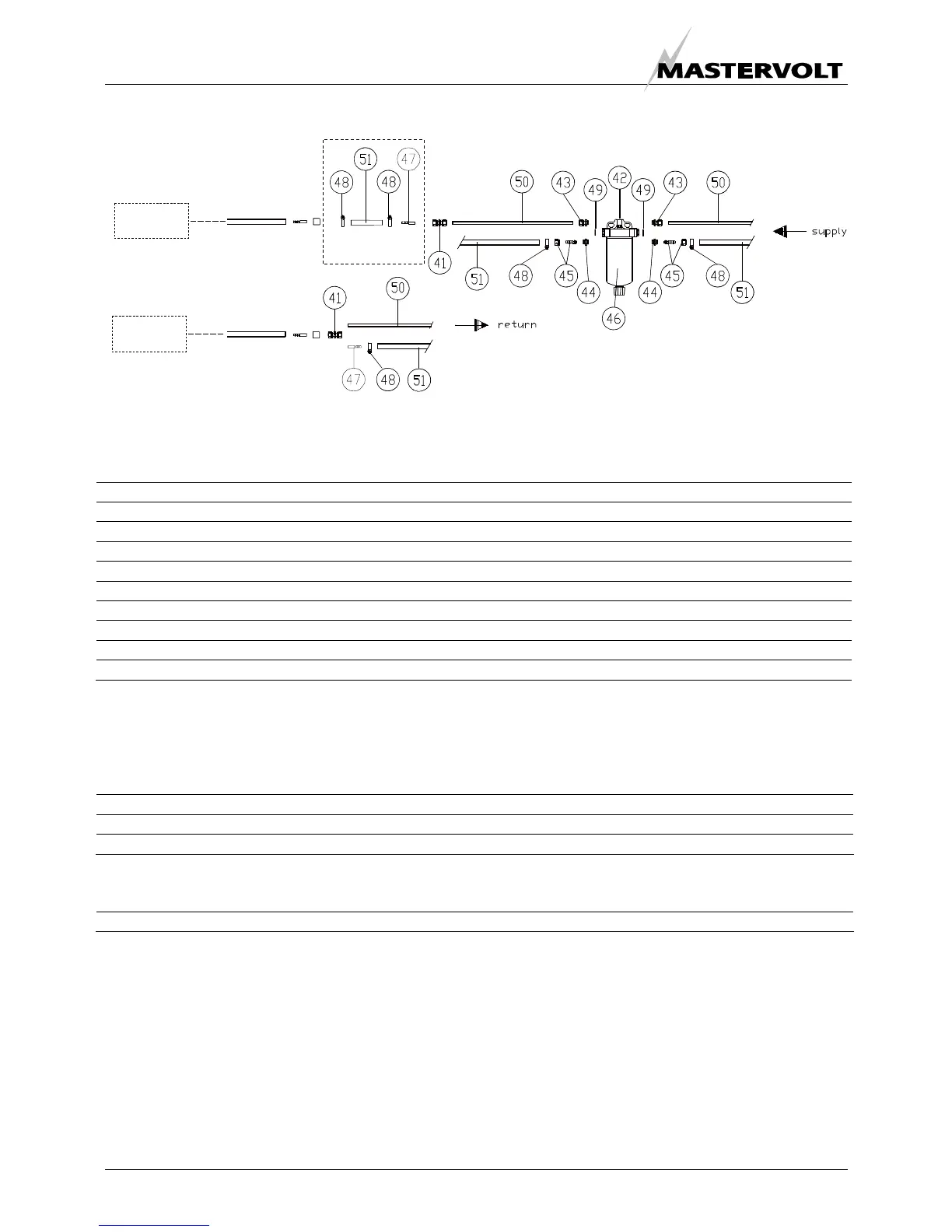

Figure 27: Installation materials fuel supply kit
FUEL SUPPLY KIT
pos. qty article no description
41 2 50221203 Straight coupling 8 mm
42 1 50230091 Filter head strainer fuel/water separator
43 2 50221618 Parallel male coupling M14- 8 mm
44 2 50221619 Parallel male coupling M14- 10 mm
45 2 50221620 Hose connection 8 mm outer cone
46 1 50230092 Filter for strainer fuel/water separator
47 2 50221252 Nipple hose pipe 8-8
48 4 50221522 Hose clamp stainless 10-16
49 2 50221632 Copper gasket ring 18x14x1,5 mm
TOTAL 50230205 FUEL SUPPLY KIT
Note: fuel pipes / fuel hoses are not included in the delivery of the fuel supply kit.
OPTIONAL INSTALLATION MATERIALS
• Additional installation parts
pos. qty article no description
48 50221522 Hose clamp stainless 10-16
50 50222020 Copper fuel pipe per meter
51 50220063 Fuel hose per meter
• Spare parts
pos. qty article no description
46 50230092 Filter for strainer fuel/water separator
