3.9 DIMENSIONS WHISPER 20 ULTRA THREE PHASE

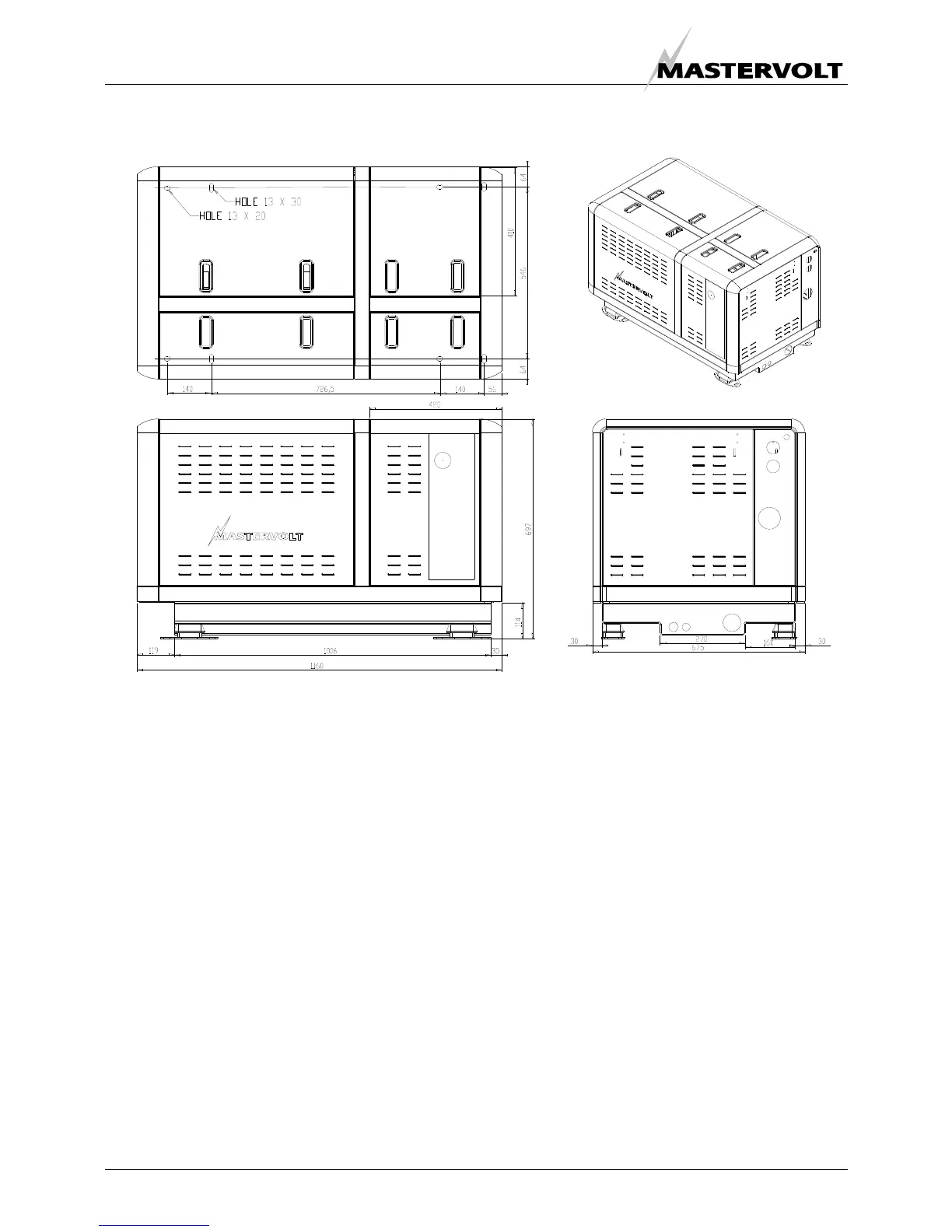

Fig. 37: Outer dimensions (mm) Whisper 20-Ultra Three Phase
CONNECTIONS WHISPER 20 Ultra Three Phase: BOX DIMENSIONS WHISPER 20 ULTRA Three Phase
• exhaust: 2” (51 mm) • length 45.7”(1160 mm)
• fuel hose: 5/16” (8 mm) • width 26.8” (680 mm)
• sea water in: 1” (25.4 mm) • height 27.6” (700 mm )
• air vent connection: 1” (25.4 mm) • weight 1000lbs (454kg)
• battery +: AWG-2 (35 mm2)
• battery -: AWG-2 (35 mm2)
A template to drill the mounting holes of the Whisper 20
Ultra Three Phase is included in the delivery.
POWERCABLES ISO 13297 annex A
• 5 x AWG9 (6 mm2) (not included)
REMOTE CONTROL:
• 45 ft (15 meter) 8 wire communication cable (included)
