Match PP 41DSP - Connectors and Control Units; Connection Ports; Control and Indicator Elements

14

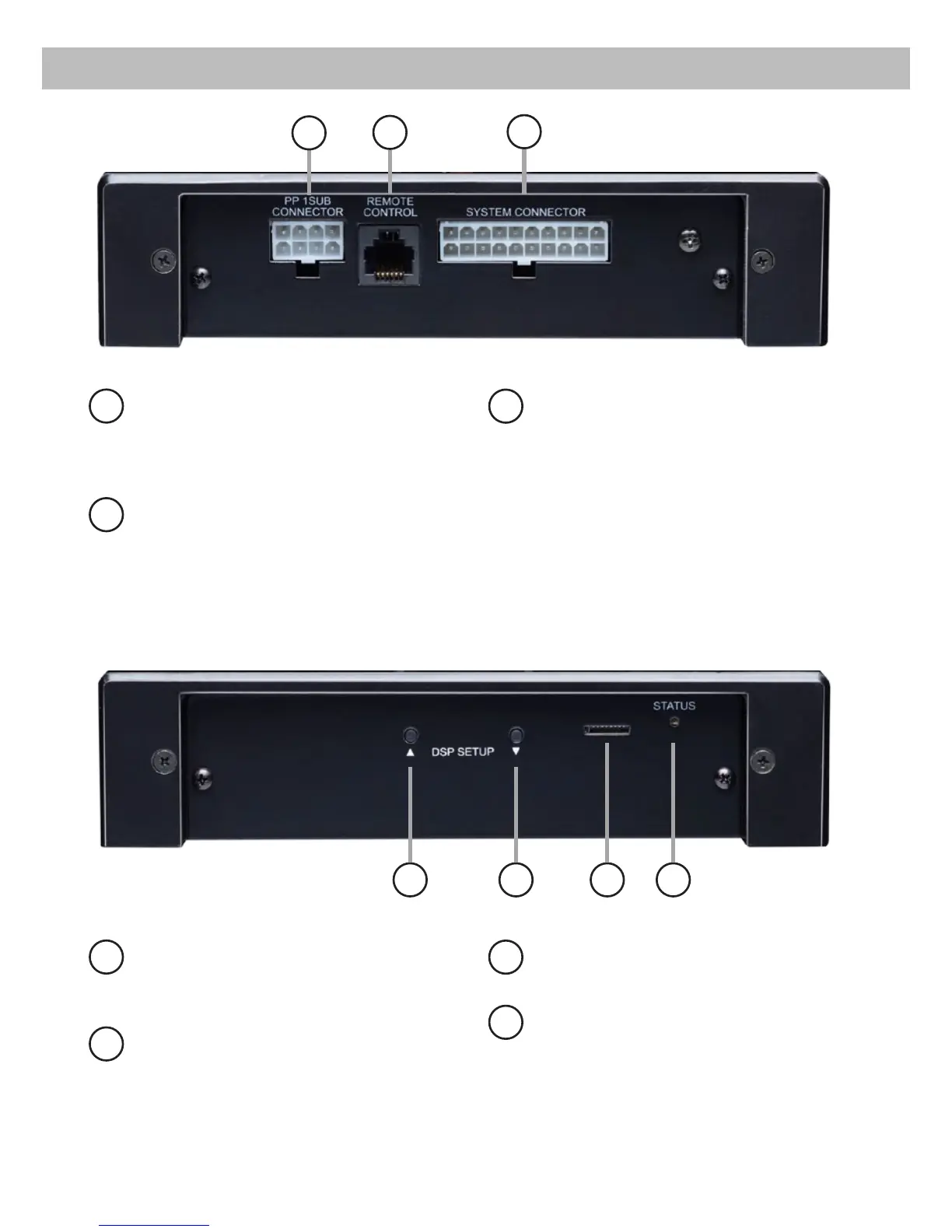

Connectors and control units
4 5 6 7
1
PP 1SUB Connector
Output connector for the external subwoofer
amplier PP 1SUB. Never connect a sub-
woofer directly to this output!
2
Remote Control
Connector for two different kinds of remote
controls. There is one version available for
demonstration purposes, the other one for
adjusting the subwoofer level.
3
System Connector
Connector for the MATCH cable harness.
Make sure that you only use the original ca-
ble that comes with the amplier to connect
the PP 41DSP with your car radio.
4
DSP Setup push button ▲
This push button allows selecting the next
setup that is stored in the amplier.
5
DSP Setup push button ▼
This push button allows selecting the
previous setup that is stored in the amplier.
6
Service Interface
This interface is only intended for servicing!
7
Status LED
This LED indicates the operating mode of
the amplier.
1
2
3
