Match PP 41DSP - Page 16

H
I
4
5
18

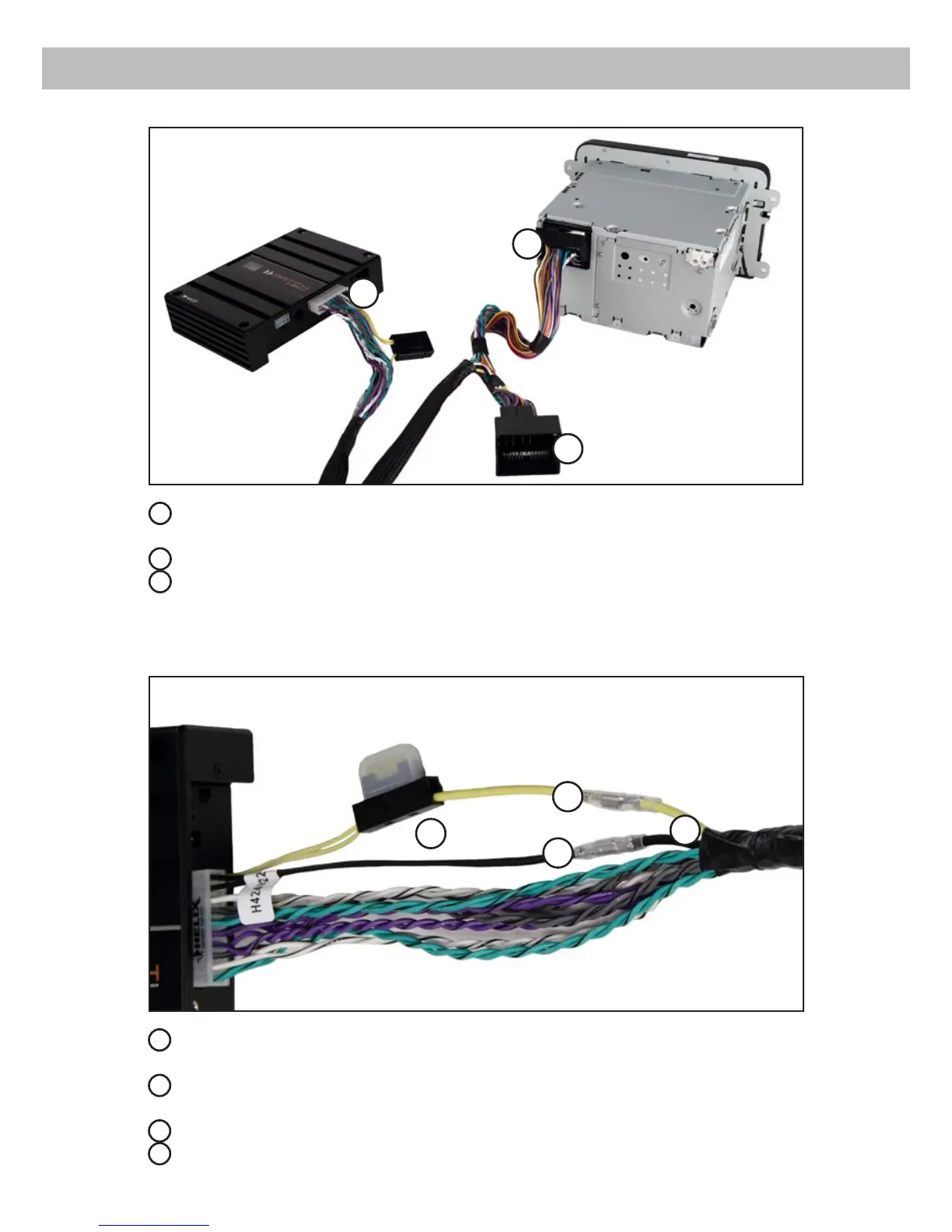

Fig. 3 Connection of the amplier to the car radio
2
3
1
1
This male connector will be plugged into the vehicle harness that has been discon-
nected from the car radio.
2
The female connector will be plugged into the car radio.
3
The 20-pole connector will be plugged into the MATCH PP 41DSP amplier.
Fig. 4 Possibility for direct power supply from the battery
4
This side of the cable harness will be directly connected to the car’s battery. Therefore
you have to separate the cable joints I and H.
5
After separating the joints I and H the unused open wire ends have to be properly
insulated with tape or other appropriate material.
I
The +12 volts wire has to be connected to the positive terminal of the car’s battery
H
The ground wire has either to be connected to the negative terminal of the battery or
directly to the car’s chassis
