MT1835 4 Rev. 06/18/08

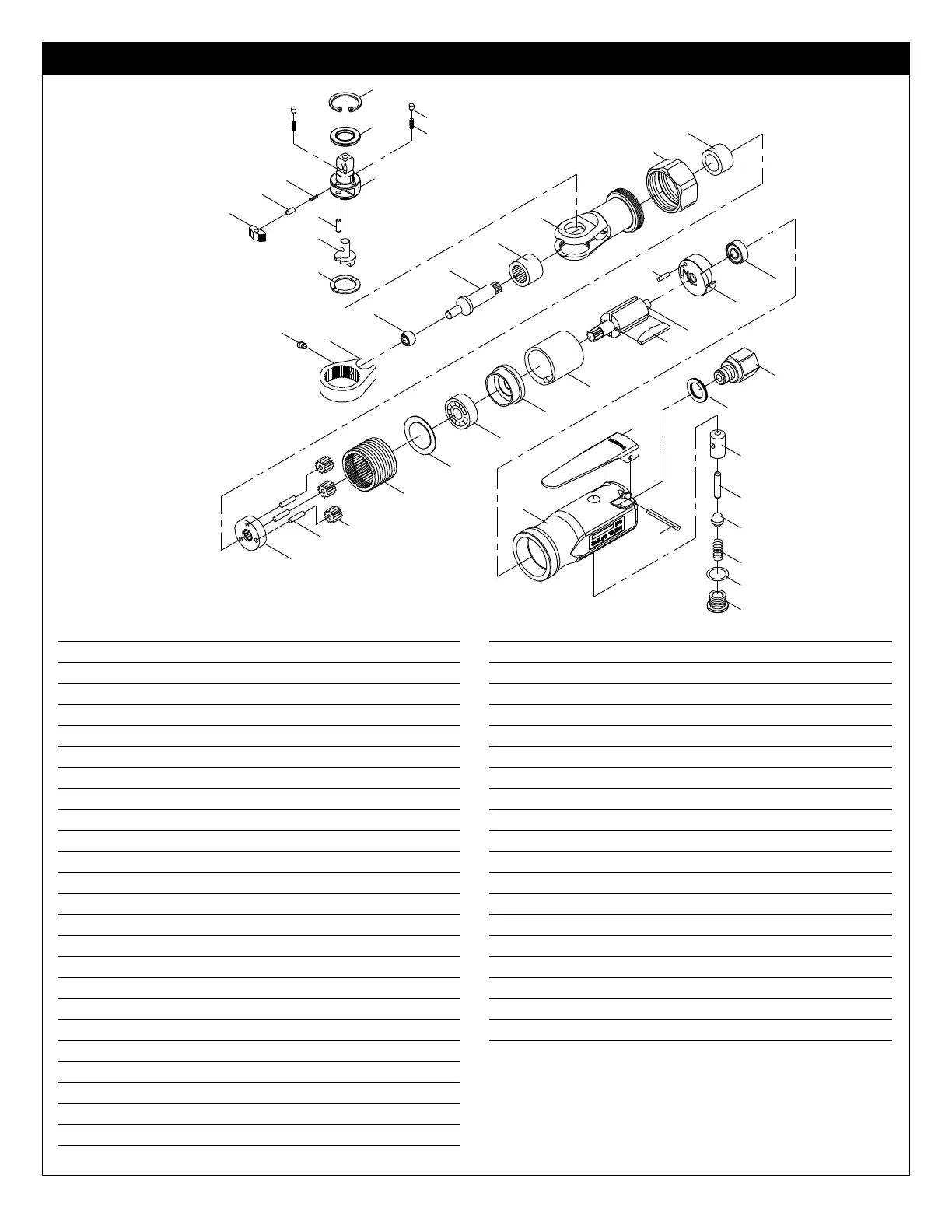

MT1835 1/4" Heavy Duty Air Ratchet
REF. NO. PaRt NO. DEscRiPtiON Qty.
1 RS63801 Plug 1
2 RS63802 O-Ring 1
3 RS63803 Throttle Valve Spring 1
4 RS63804 Valve 1
5 RS63805 Valve Stem 1
6 Valve Bushing (included with #10) 1
7 RS183507 Air Inlet Bushing 1
7-1 RS183507-1 Muffler 1
8 RS183508 Throttle Lever 1
9 RS183509 Spring Pin 1
10 RS183510A Handle (Includes #6) 1
11 RS30516 Ball Bearing 1
12 ** RS62512R Rear End Plate 1
13 RS183513 Spring Pin 1
14 RS62514 Rotor 1
15 RS62515 Rotor Blade 4
16 ** RS183516R Cylinder 1
17 RS62517 Front End Plate 1
18 RS30524 Ball Bearing 1
19 RS62519 Washer 1
20 RS62520 Internal Gear 1
21 RS62521 Planet Gear 3
22 Gear Pivot (Included in #23) 3
23 RS62523K Gear Plate Assembly (Incl. #22) 1
REF. NO. PaRt NO. DEscRiPtiON Qty.
24 RS183524 Bushing 1
25 RS183525 Clamp Nut 1
26 RS183526 Ratchet Housing 1
27 RS62527 Needle Bearing 1
28 RS183528 Crank Shaft 1
29 RS183529 Drive Bushing 1
30 RS183530 Ratchet Yoke (Incl. #30-1) 1
30-1 Grease Fitting (Included in #30) 1
31 * Washer 1
32 * Reverse Button 1
33 * Pawl Pivot 1
34 * Ratchet Anvil 1
35 * Spring 1
36 * Spring Cap 1
37 * Ratchet Pawl 1
38 * Friction Spring 2
39 * Post 2
40 * Thrust Washer 1
41 * Retaining Ring 1
* Available only as a head kit, part # MT1835RHK.
** New improved parts standard on tools with the serial number
EGF126001 and above. On tools with earlier serial numbers, if
replacing rear end plate or cylinder with improved part, both must
be replaced.
36
35
06
05
04
03
02
08
09
20
19
18
17
16
15x4
14
12
25
24
26
30
29
28
27
01
11
07
32
21
23
07-1
31
30-1
10
34
13
38
39
40
41
33
37
2 2
US patent #6,305,246
To Next Page
