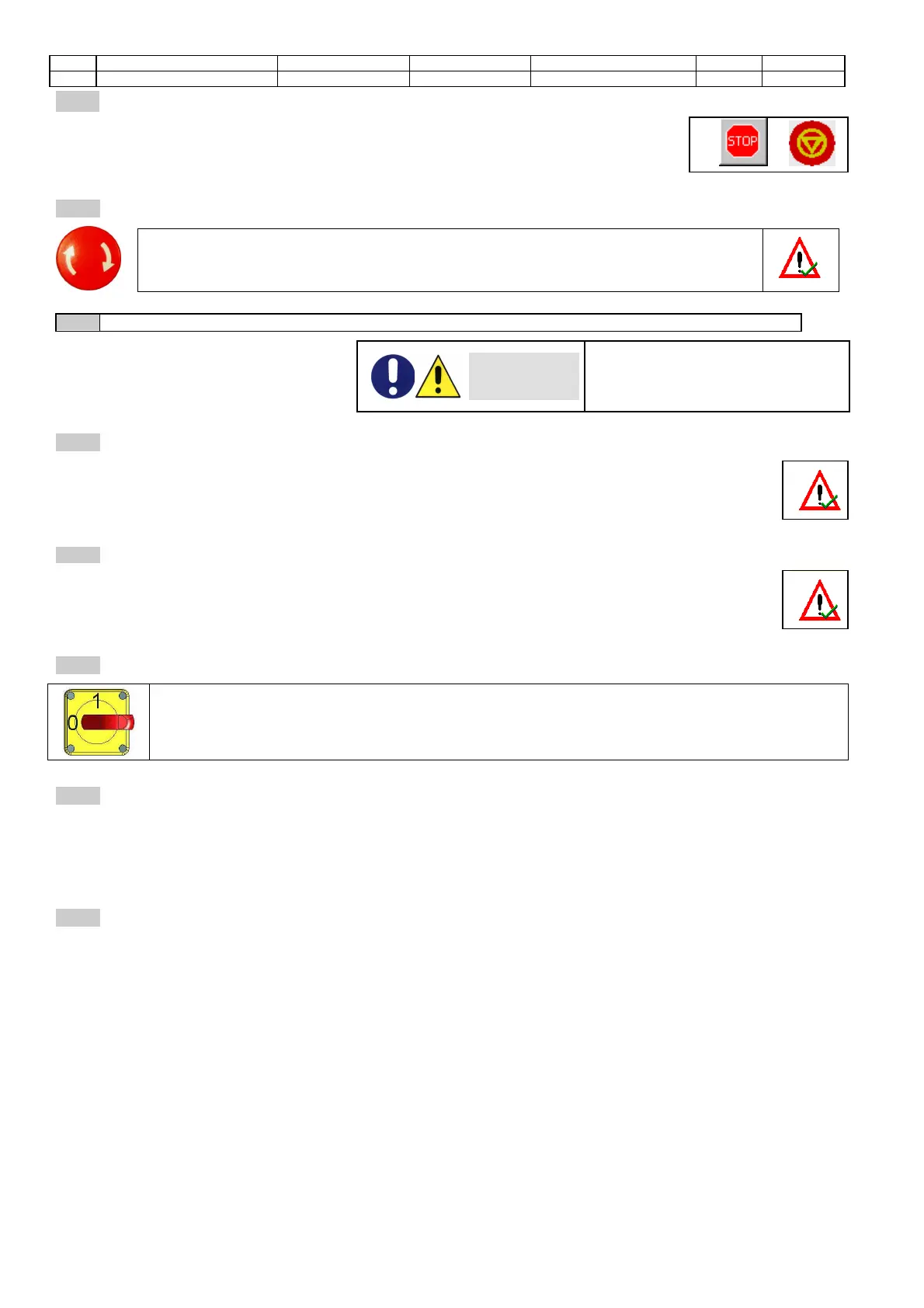

Matest B041 - Page 37

Rev. Descrizione Redatto/Gestito Approvato Cod.Ident. Pagine Data Em.
0.6 Manuale Istruzioni GN UTEC B041.M01.EN 37/47 07/2014
7.06
NORMAL STOP
The test can be stopped by pressing the buttons.
For an emergency stop of the machine, it is necessary to press the emergency
button located on the top cover of the digital control unit.
or .
7.07
EMERGENCY STOP
The test can be stopped in every moment by pushing the red safety button.
The active alarm icon will be shown on the display.
7.08
START UP AFTER STOP COMMANDED BY SAFETY CIRCUIT
Put the emergency button in its initial
position by turning it.
WARNING
DANGER
It is recommended to find the causes
that stop the test and set the initial
conditions
7.09
STOP COMMANDED BY SAFETY CIRCUIT
if for some reason the guard is opened during the compaction and not during the pause phase, the test
is immediately stopped and the alarm icon will be shown on the display.
7.10
START UP AFTER STOP COMMANDED BY SAFETY CIRCUIT
Close the window. Confirm the vision of alarm and reset it by pressing the button.
7.11
SWITCHING OFF
To switch off the machine position the main switch on “0”.
7.12
TEST START UP
Before using the appliance regularly check it is working correctly by carrying out at least one complete empty
cycle according to the previous instructions.
Should there be any problem consult the chapter “DIAGNOSTICS”.
If the instructions in this manual do not provide the solution to the problem, contact Sales Assistance.
7.13
PACTICAL EXAMPLE: HOW TO USE THE MACHINE
A short description of the test execution is provided here below. For further and detailed information, refer to the
instructions provided by the International Standards in force.
• Pour the bituminous mixture into the mould accurately.
• Put the mould on the working bench.
• Drag and put the mould into the machine testing chamber; position it accurately in its correct working position.
(N.B.: OIL ACCURATELY THE BASE DISC OF THE MACHINE TESTING CHAMBER).
• Turn the machine on and set the test parameters.
• Start the test.
• Save or print the test results once the test is completed.
• Take the mould out of the testing chamber and extract the specimen using the automatic specimen extruder.
• Clean accurately the mould and the base.
