CHAPTER 4: Stepper parts and assembly GuidesCHAPTER 4: Stepper parts and assembly Guides
1) Feed the heart rate wires of the handlebar through the small hole located in the back of the Console Mast. Pull these wires up through the hole at the top
of the Console Mast. Attach the handlebar to the console mast using two bolts (Z04) and one belt (Z06) for tightening.
1) Attach the lower handle supports to the rear foot using the four bolts (Z11) and washers (Z09).
Tighten with the #5 Allen Wrench (Z32).
2) Install the upper handle supports to the lower handle supports by using the four bolts (Z05) and
washers (Z10). Tighten up all bolts in this step with the #5 Allen Wrench (Z32). And, insert the
left and right upper handle supports together.
Z09
Z11
Z05
Z10
Z09
Z11
Z05
Z10
Z10
Z05
Z10
Z05

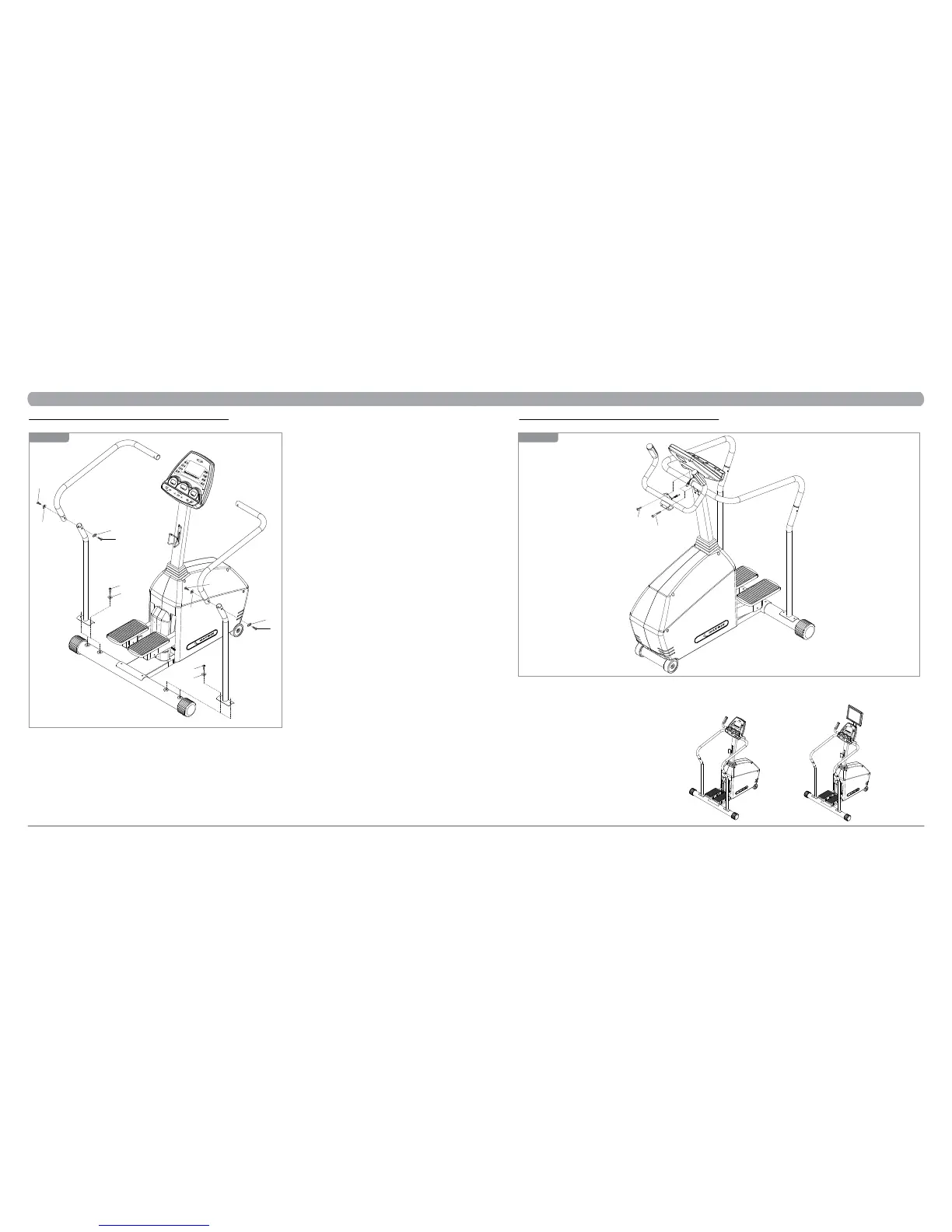

STEP 3
Z06
Z04
STEP 4
4.3 ASSEMBLY STEPS
4.3 ASSEMBLY STEPS
ASSEMBLY COMPLETE
Assembly is complete.
Final assembly and optional entertainment shown.
