Matrix A7xi - Page 8

1514
ALL
MODELS
ALL
MODELS

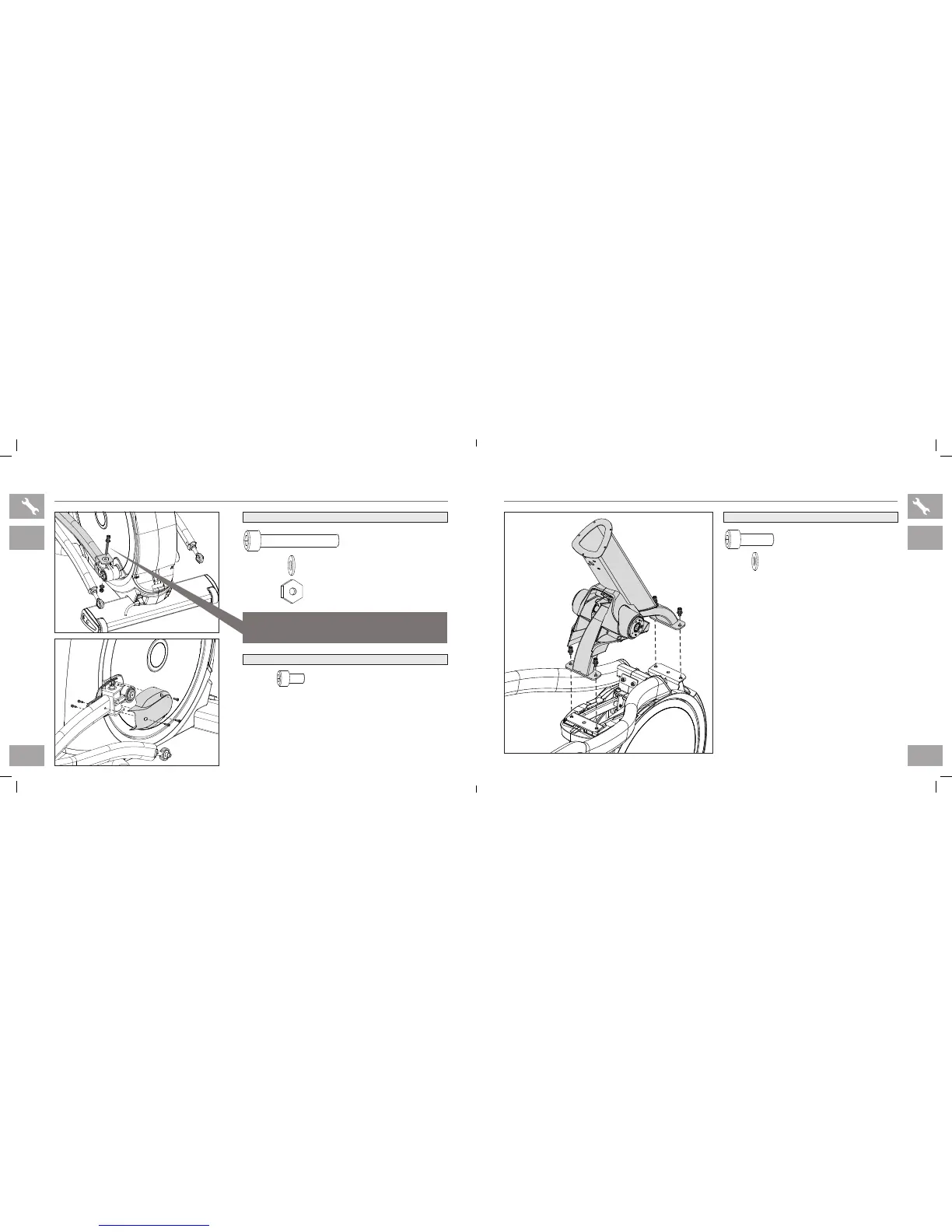

ASSEMBLY STEP 4
QTY
1
QTY
2
QTY
1
SOCKET HEAD CAP SCREW
(M10x1.5Px100L)
12.9 GRADE MINIMUM
FLAT WASHER
(Ø10.2xØ20x2.0T)
HEX NUT
(M10) CLASS 10
QTY
5
SCREW
(M5x0.8Px10L)
GREEN HARDWARE BAG CONTENTS
QTY
1
QTY
2
QTY
1
SOCKET HEAD CAP SCREW
(M10x1.5Px100L)
12.9 GRADE MINIMUM
FLAT WASHER
(Ø10.2xØ20x2.0T)
HEX NUT
(M10) CLASS 10
QTY
5
SCREW
(M5x0.8Px10L)
WARNING!!
Use torque wrench and tighten to (70 N-m - 90 N-m)
YELLOW HARDWARE BAG CONTENTS
ASSEMBLY STEP 5
QTY
4
QTY
4
SOCKET HEAD CAP SCREW
(M10x1.5Px25L)
10.9 GRADE MINIMUM
FLAT WASHER
(Ø10.2xØ20x2.0T)
RED HARDWARE BAG CONTENTS :
MX14_AEALB3x_5x_7xe_7xi_OM_Rev1_1.indd 14-15 6/4/14 11:24 AM
