CHAPTER 4: Elliptical parts and assembly Guides

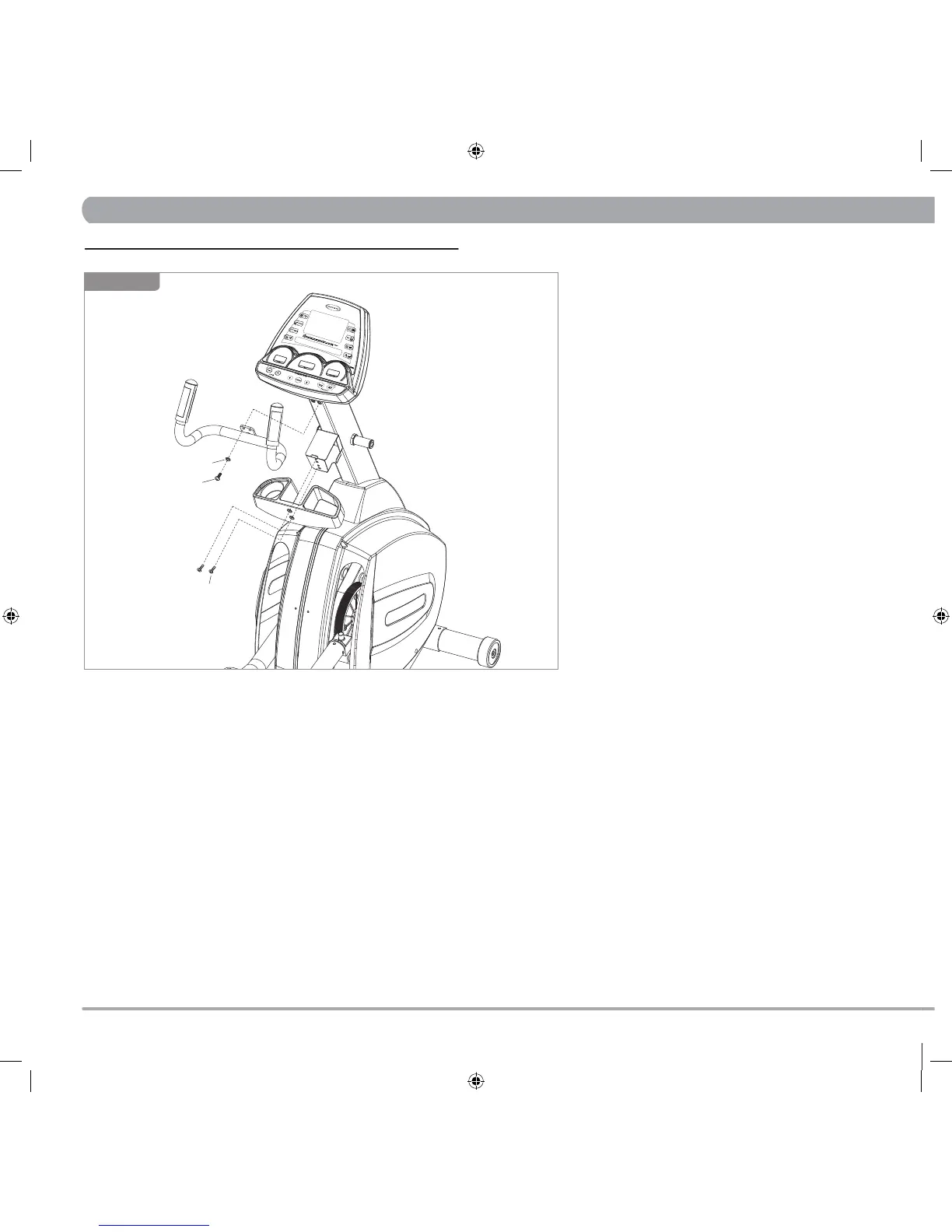

HR HANDGRIPS
Plug in the heart rate wires to the wires from the Console Mast.
Attach the heart rate handgrips to the Console Mast by using four screws (Z25) and washers (Z24).
ACCESSORY TRAY
Attach the Accessory Tray to the positioned base of the accessory tray by using two screws (Z22).
1)
2)
1)
STEP 3
4.3 ASSEMBLY STEPS
