CHAPTER 4: Elliptical parts and assembly Guides

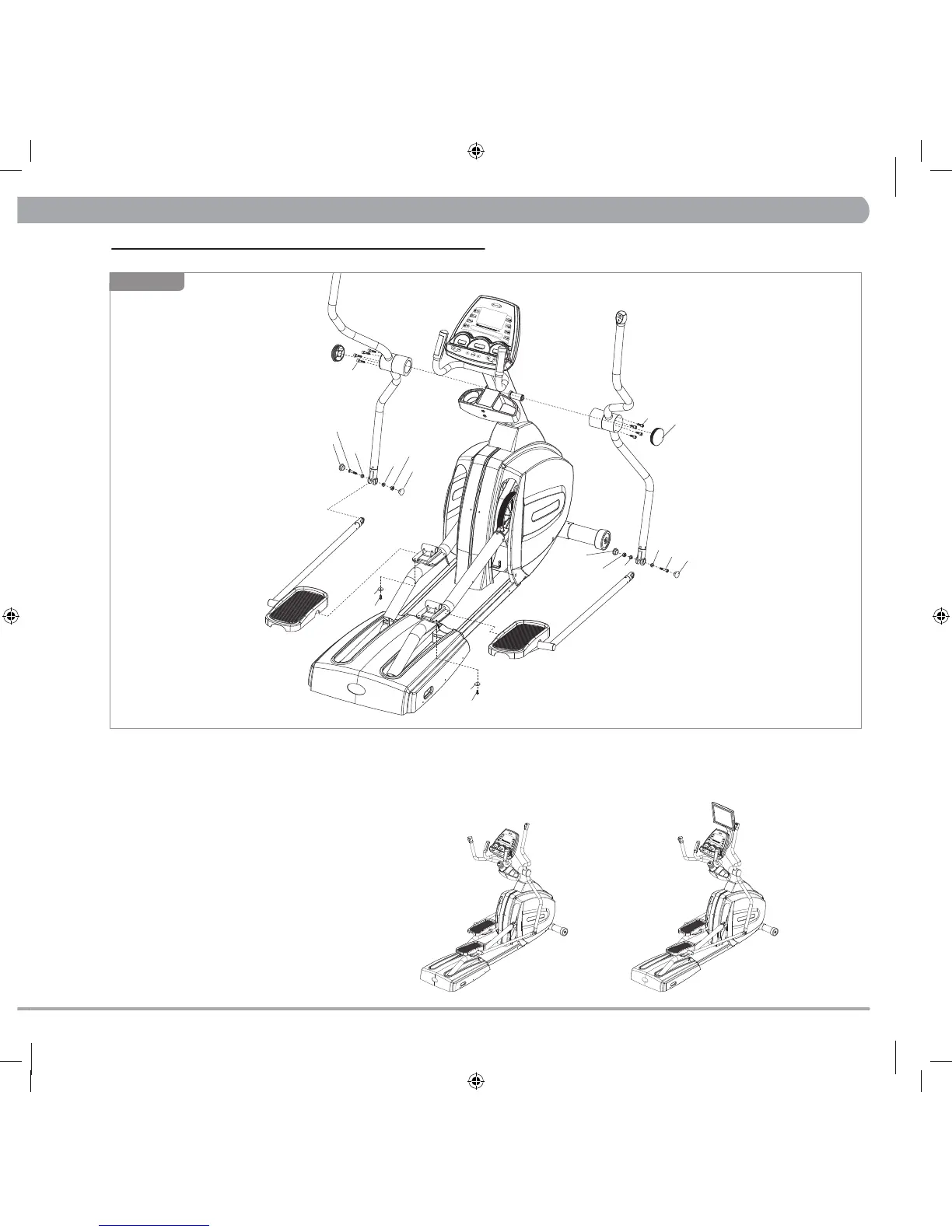

Attach the Dual-Action handrail (R) and (L) to the Console Mast using screws (Z18), and place the Handlebar Caps around the Handlebars.
Fasten the Link Arm (R) and (L) to the Pedal Arms using screws (Z01) and washers (Z02).
Attach the Dual-Action handrails to the link arms using bolts (Z06), bushings (Z05), and nylon nuts (Z07).
Align the cut-out inside the link arm caps (Z08) with the link arm mounting hole. Apply pressure to the cap until it snaps into place.
1)
2)
3)
4)
