GROUNDING INSTRUCTIONS
The equipment must be grounded. If it should malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric shock.
The unit is equipped with a cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances. If the user does
not follow these grounding instructions, the user could void the MATRIX limited warranty.
ADDITIONAL ELECTRICAL INFO
In addition to the dedicated circuit requirement, the proper gauge wire must be used
from the circuit breaker box, to each outlet that will have the maximum number of units
running off of it. If the distance from the circuit breaker box to each outlet, is 100 ft
(30.5 m) or less, then 12 gauge wire should be used. For distances greater than 100 ft
(30.5 m) from the circuit breaker box to the outlet, a 10 gauge wire should be used.
ENERGY SAVING / LOW-POWER MODE
All units are congured with the ability to enter into an energy saving / low-
power mode when the unit has not been in use for a specied period of
time. Additional time may be required to fully reactivate this unit once it has
entered the low-power mode. This energy saving feature may be enabled
or disabled from within the ‘Manager Mode’ or ‘Engineering Mode.’
ADD-ON DIGITAL TV (LED, PREMIUM LED)
Additional power requirements are not needed for the add-on digital TV.
An RG6 coaxial cable with ‘F Type’ compression ttings will need to be
connected between the video source and each add-on digital TV unit.
DEDICATED CIRCUIT AND ELECTRICAL INFO
A “Dedicated Circuit” means that each outlet you plug into should not have
anything else running on that same circuit. The easiest way to verify this is
to locate the main circuit breaker box, and turn off the breaker(s) one at a
time. Once a breaker has been turned off, the only thing that should not have
power to it is the unit in question. No lamps, vending machines, fans, sound
systems, or any other item should lose power when you perform this test.
Non-looped (isolated) neutral/grounding means that each circuit must have an individual
neutral/ground connection coming from it, and terminating at an approved earth
ground. You cannot “jumper” a single neutral/ground from one circuit to the next.
ELECTRICAL REQUIREMENTS
For your safety and to ensure good treadmill performance, the ground on this circuit
must be non-looped (isolated). Please refer to NEC article 210-21 and 210-23. Your
treadmill is provided with a power cord with a plug listed below and requires the listed
outlet. Any alterations of this power cord could void all warranties of this product.
For units with an integrated TV (like the TOUCH and TOUCH XL), the TV power requirements
are included in the unit. An RG6 coaxial cable with ‘F Type’ compression ttings on each
end will need to be connected between the cardio unit and the video
source. For units with an add-on digital TV (LED only), the machine in
which the add-on digital TV is connected to powers the add-on digital TV.
Additional power requirements are not needed for the add-on digital TV.
110 V UNITS
110 V units require the use of a 100-125 V, 60 Hz and a 20 A “Dedicated
Circuit”, with a non-looped (isolated) neutral/ground for power. This
outlet should be a NEMA 5-20R and have the same conguration
as the plug. No adapter should be used with this product.
220 V UNITS
220 V units require the use of a 216-250 V, 50 Hz and a 20 A “Dedicated
Circuit”, with a non-looped (isolated) neutral/ground for power. This
outlet should be a NEMA 6-20R and have the same conguration
as the plug. No adapter should be used with this product.

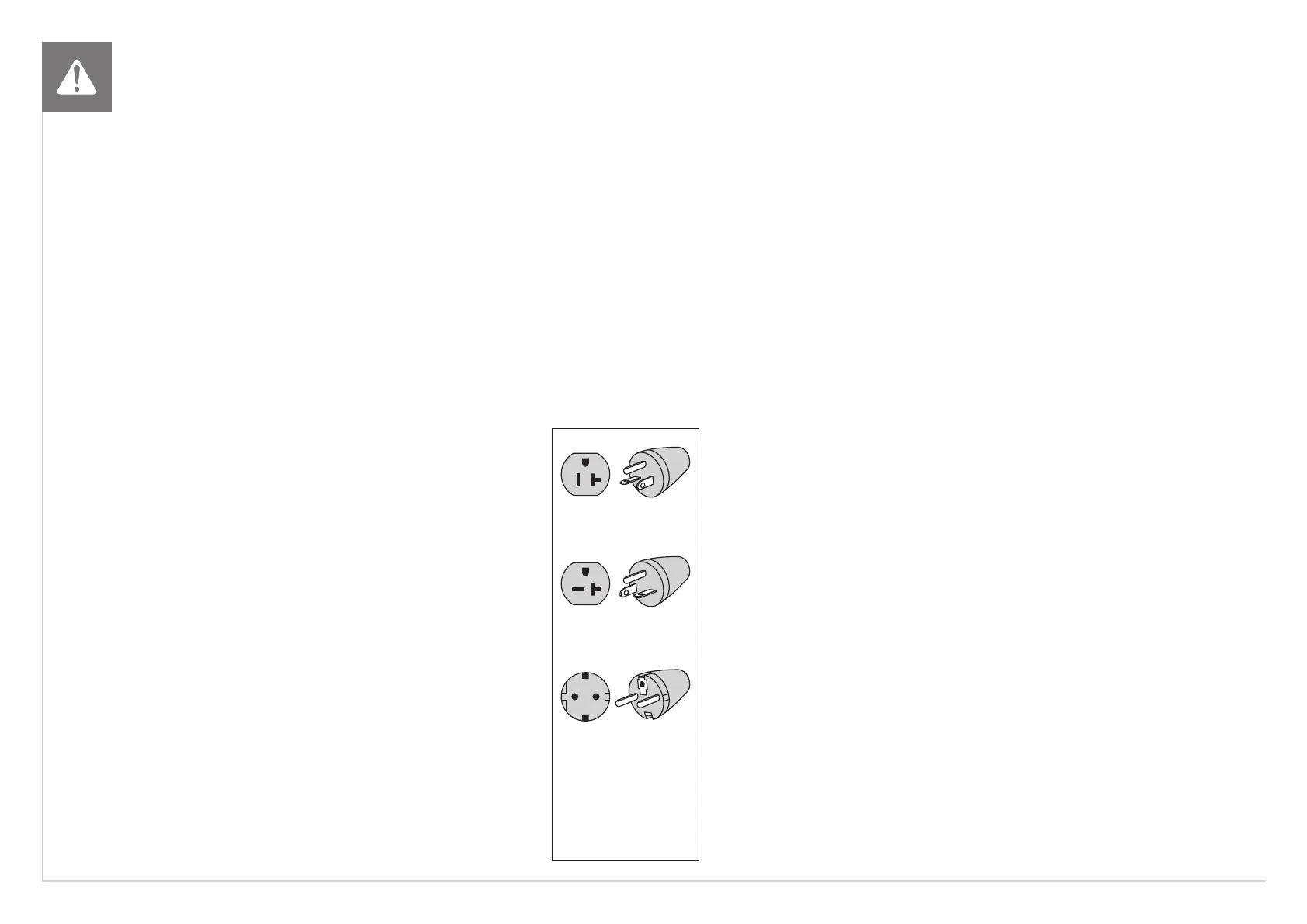

POWER REQUIREMENTS
North American and
European power
cord plugs shown.
Depending on your
country, the plug
type may vary.
110 NEMA 5-20P
PLUG (N.A.)
220 NEMA 6-20P
PLUG (N.A.)
EURO PLUG
(EUROPE)
ENGLISH
To Next Page
