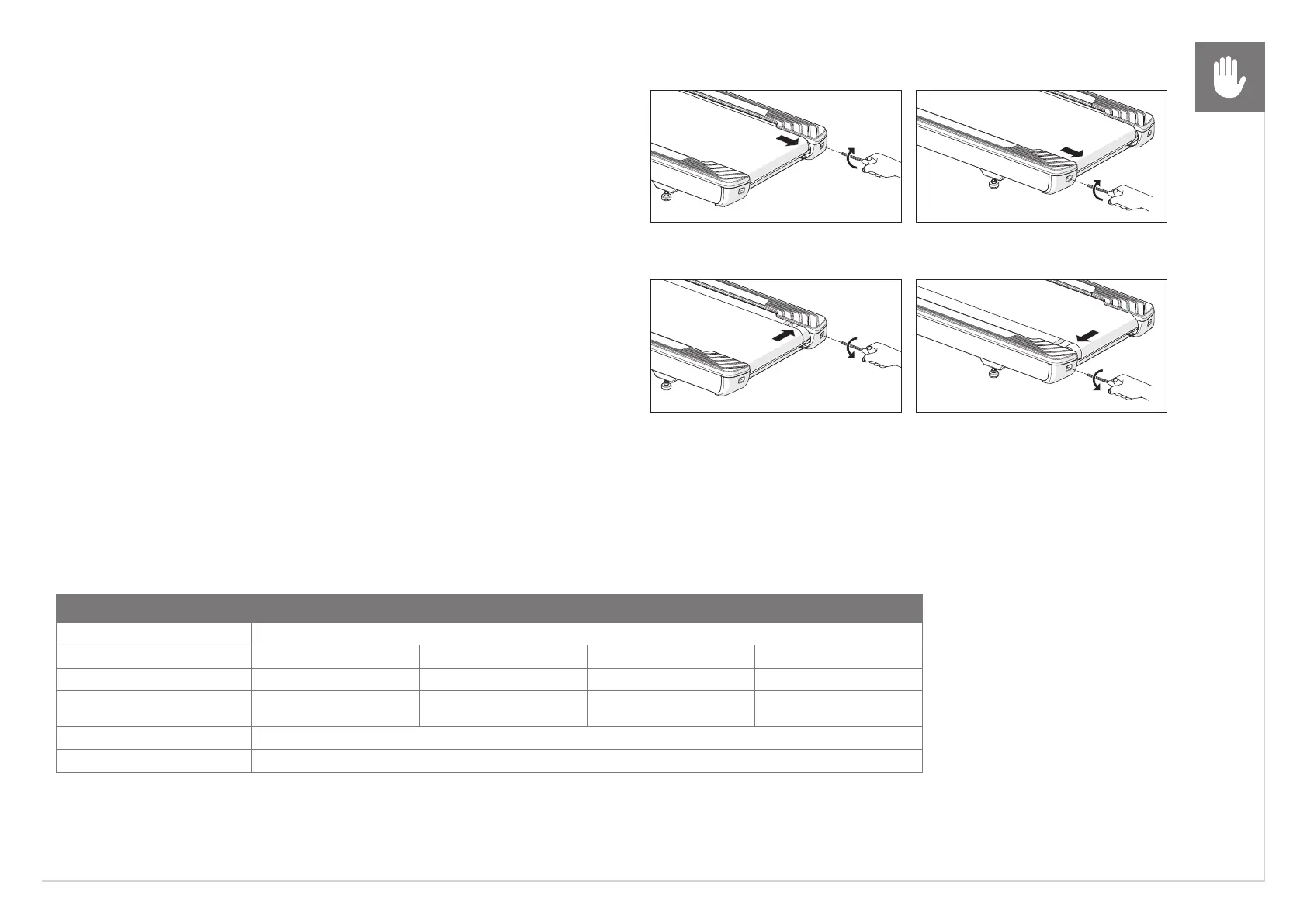

TENSIONING THE RUNNING BELT
After placing the treadmill in the position it will be used, the belt must be checked for
proper tension and centering. The belt might need to be adjusted after the first two
hours of use. Temperature, humidity, and use cause the belt to stretch at different rates.
If the belt starts to slip when a user is on it, be sure to follow the directions below.
1) Locate the two hex head bolts on the rear of the treadmill. The bolts are located at each
end of the frame at the back of the treadmill. These bolts adjust the rear belt roller. Do
not adjust until the treadmill is on. This will prevent over tightening of one side.
2) The belt should have equal distance on either side between the frame. If the belt is touching
one side, do not start the treadmill. Turn the bolts counter clockwise approximately one
full turn on each side. Manually center the belt by pushing the belt from side to side
until it is parallel with the side rails. Tighten the bolts the same amount as when the
user loosened them, approximately one full turn. Inspect the belt for damage.
3) Start the treadmill running belt by pressing the GO buttion. Increase speed to 3 mph
(~4.8 kph) and observe the belt position. If it is moving to the right, tighten the right
bolt by turning it clockwise ¼ turn, and loosen the left bolt ¼ turn. If it is moving
to the left, tighten the left bolt by turning it clockwise ¼ turn and loosen the right
¼ turn. Repeat Step 3 until the belt remains centered for several minutes.
4) Check the tension of the belt. The belt should be very snug. When a person
walks or runs on the belt, it should not hesitate or slip. If this occurs, tighten
the belt by turning both bolts clockwise ¼ turn. Repeat if necessary.
NOTE: Use the orange strip in the lateral position of the side rails as criteria to confirm the belt is properly
centered. It is necessary to adjust the belt until the edge of the belt is parallel to the orange or white strip.
WARNING!
Do not run belt faster than 3 mph (~4.8 kph) while centering. Keep ngers, hair and clothing away from belt at all times.
Treadmills equipped with side handrails and front handlebar for user support and emergency dismount, press emergency button to stop the machine for emergency dismount.
PRODUCT SPECIFICATIONS
ENDURANCE TOUCH XL TOUCH PREMIUM LED LED
Max User Weight 182 kg / 400 lbs
Product Weight 156 kg / 344 lbs 153 kg / 337.3 lbs 151 kg / 333 lbs 150.5 kg / 332 lbs
Shipping Weight 181.6 kg, 400.4 lbs 177 kg / 390 lbs 175 kg / 386.3 lbs 174.5 kg / 384.7 lbs
Overall Dimensions
(L x W x H)*
213 x 87 x 169 cm /
83.9” x 34.3” x 66.5”
213 x 87 x 163 cm /
83.9” x 34.3” x 64.2”
213 x 87 x 163 cm /
83.9” x 34.3” x 64.2”
213 x 87 x 163 cm /
83.9” x 34.3” x 64.2”
Electrical Receptacle & Plug NEMA 5-20R/P 110 V or NEMA 6-20R/P 220 V
Electrical Requirements 20 A dedicated circuit required-non-looped-grounded
* Ensure a minimum clearance width of 0.6 meters (24”) for access to and passage around MATRIX equipment.
Please note, 0.91 meters (36”) is the ADA recommended clearance width for individuals in wheelchairs.
