Matrix PGT 4 in 1-S User Manual

22

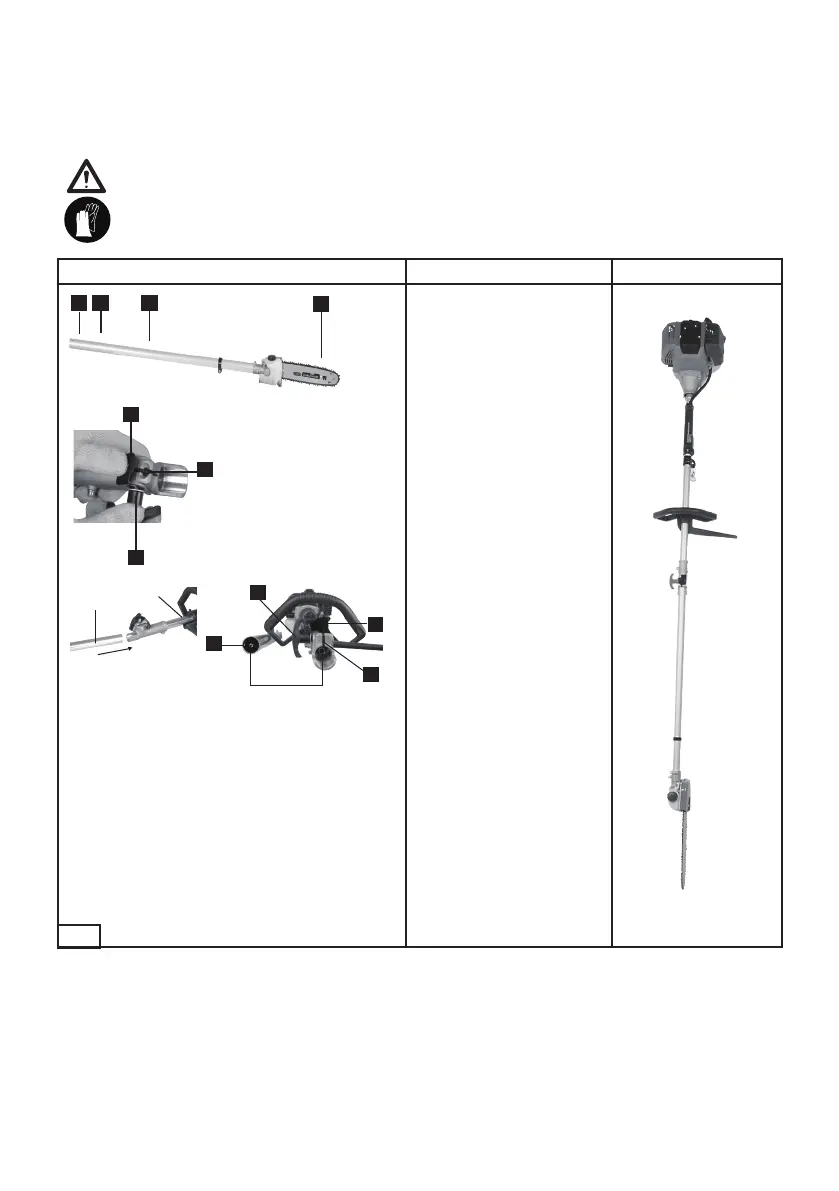

4.5 Brush cutter-Grass trimmer-Pruner-Hedge trimmer-Combination Device: Pole-mounted
powered pruner
RISK OF INJURY
CAUTION: Always wear protective gloves when working on and around cutting tools.
Assembly 5 Assembly
Remove transport cover.
Connecting the drive unit
and assembly:
Insert the ends of the
assemblies to be connected.
Make sure that the locking
pin (26) locks in place. Check
pulling apart on a trial and
error basis. Fold down the
cover (26a) and secure the
assemblies by tightening
the locking screw (12).
Release of drive unit and
assembly:
Loosen the locking screw
(12). The cover (26a) jumps
back. Hold the locking pin
(26) pressed underneath
the cover and loosen the
modules by carefully pulling
them apart simultaneously.
29
28
a
30
A11
12
26a
26
Teil B
Teil C
26
26a
12
a
