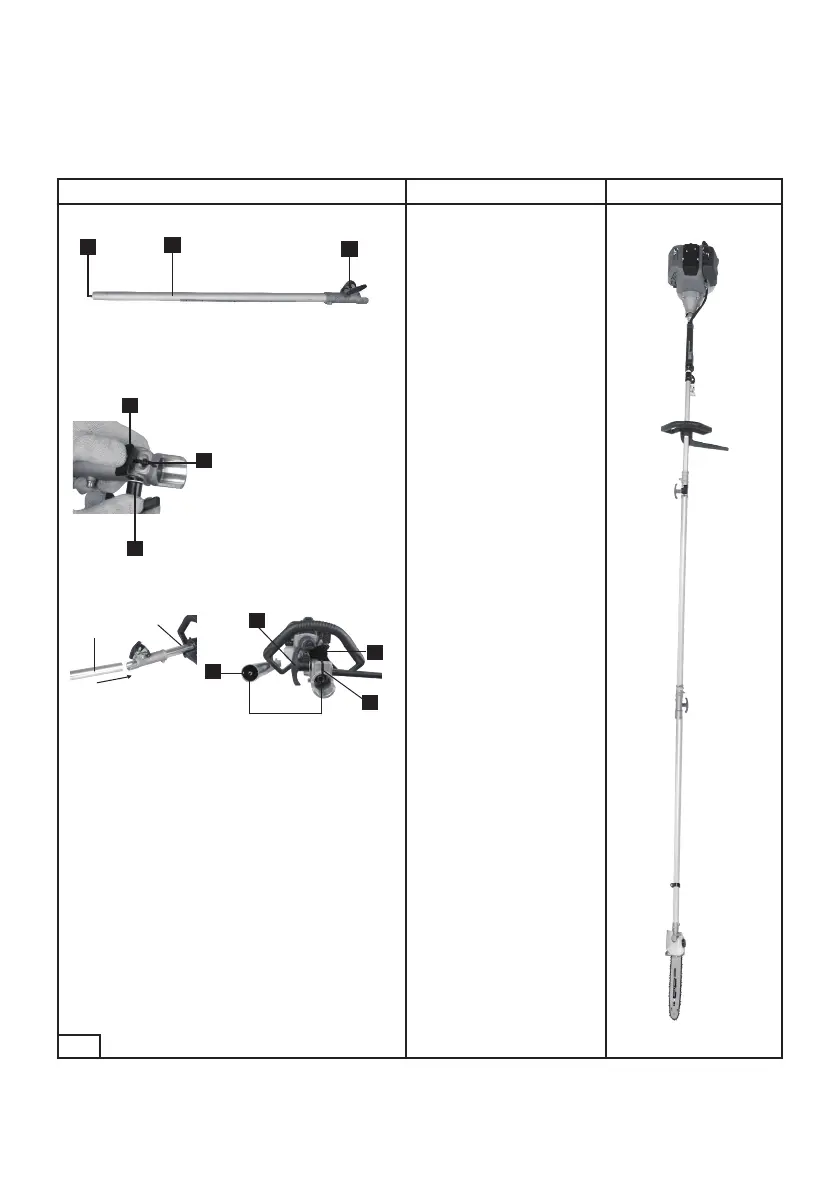

4.6 Brush cutter-Grass trimmer-Pruner-Hedge trimmer-Combination Device: Extension (only
pole-mounted powered pruners)
Assembly 6 Assembly
Remove transport cover.
Connecting the drive
unit, extension and
assembly:
Insert the ends of
the assemblies to be
connected. Make sure that
the locking pin (26) locks in
place. Check pulling apart
on a trial and error basis.
Fold down the cover (26a)
and secure the assemblies
by tightening the locking
screw (12). Carry out
procedure separately for
drive unit and extension.
Release of drive unit,
extension and assembly:
Loosen the locking screw
(12). The cover (26a) jumps
back. Hold the locking pin
(26) pressed underneath
the cover and loosen
the modules by carefully
pulling them apart
simultaneously. Carry out
procedure separately for
drive unit and extension.
A12
12
27
a
Teil B
Teil C
12
26a
26
26
26a
12
a
