Matrix R3XE-01 User Manual

44
9.8 HEART RATE HANDLEBAR REPLACEMENT
1) Remove the seat pad as outlined in Section 9.6.
2) Remove the back pad as outlined in Section 9.7.

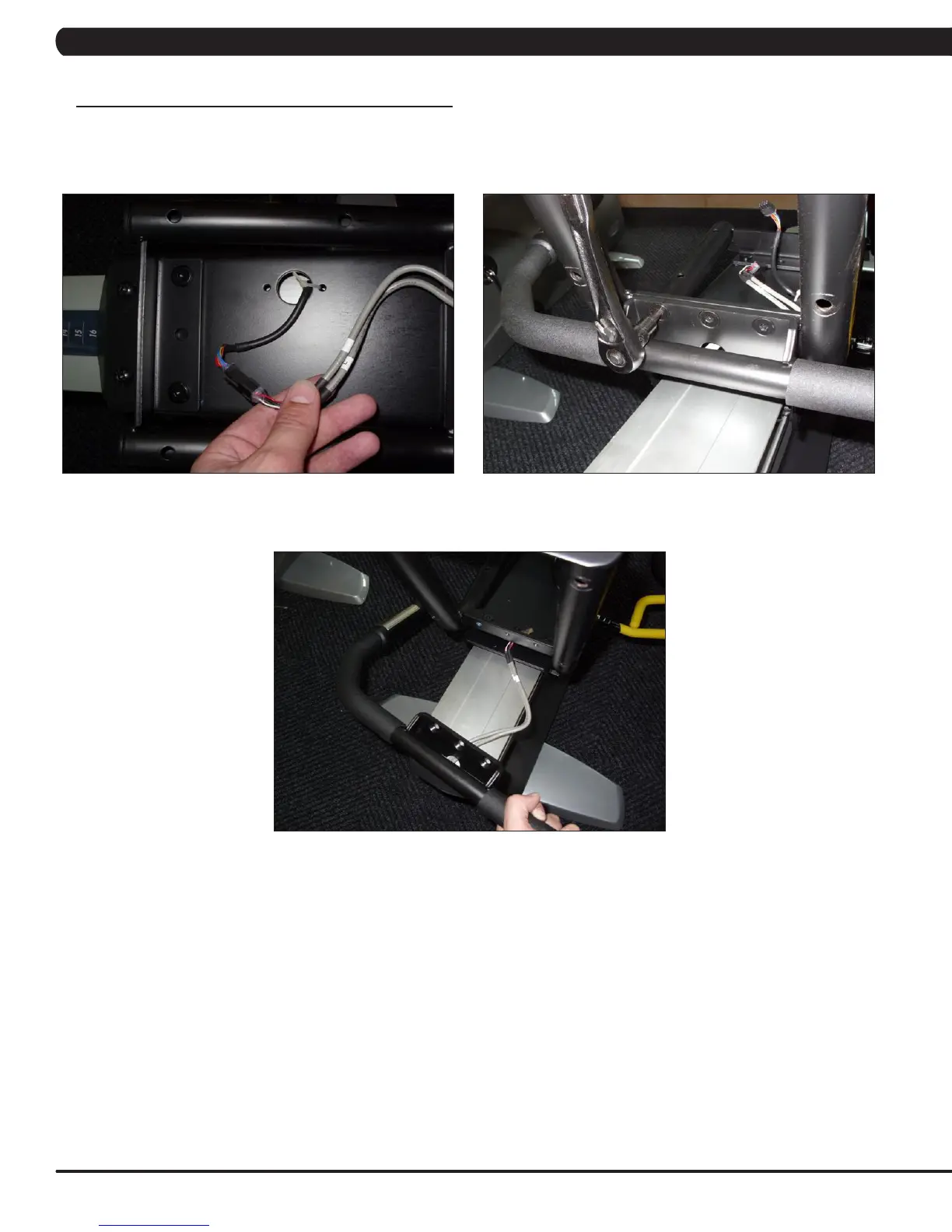

3) Disconnect the heart rate wiring exposed when the seat pad is removed (Figure A).
4) Remove the 3 screws holding the heart rate handlebars to the seat frame (Figure B).
5) Remove the heart rate handlebars from the frame (Figure C).
6) Reverse Steps 1-5 to install a new heart rate handlebar.
7) Test the bike for function as outlined in Section 9.23.
FIGURE A
FIGURE B
FIGURE C
