52

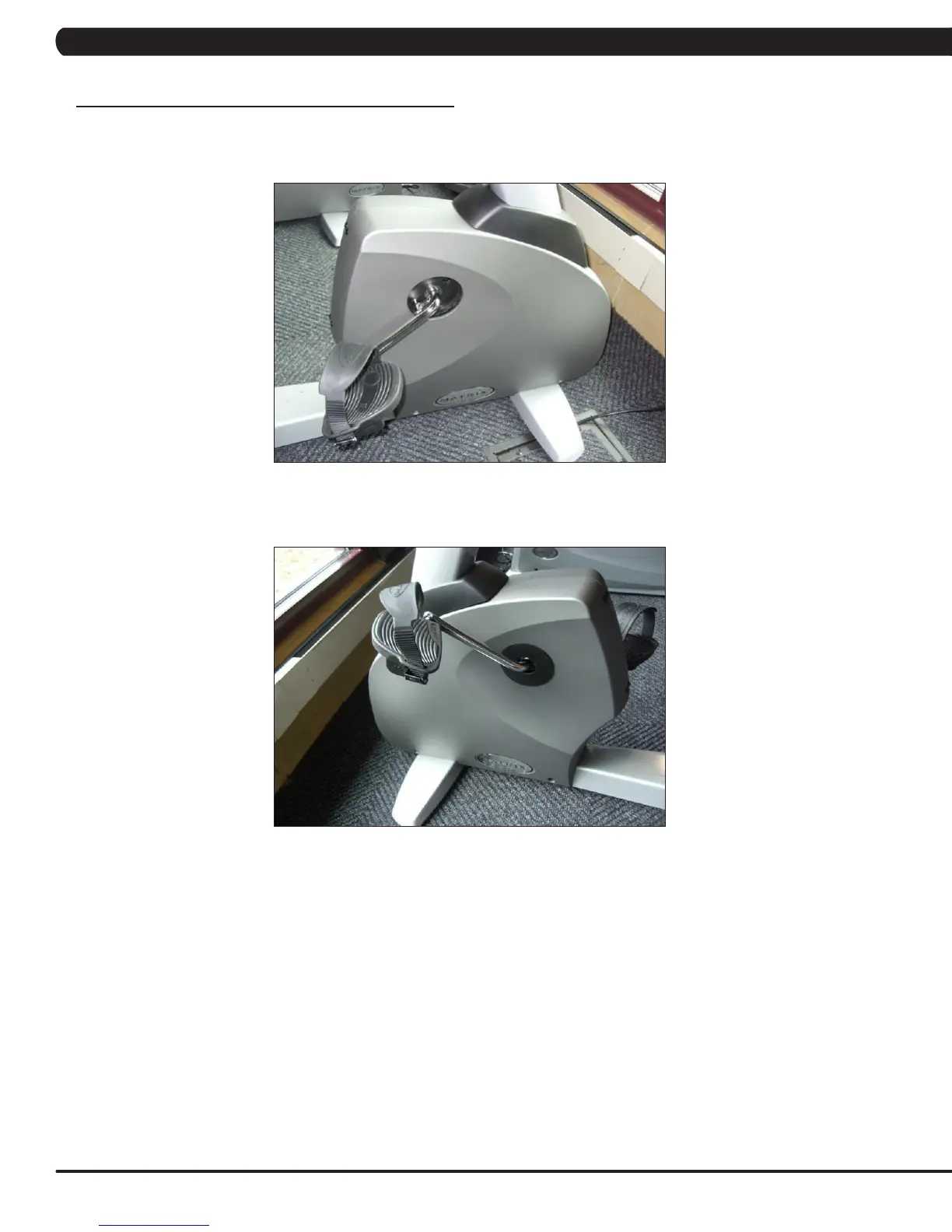

9.15 FRONT SHROUD REMOVAL
1) Remove the pedals as outlined in Section 9.14.
2) Remove the 9 screws holding the right side front shroud to the frame and the left shroud and remove it (Figure A). NOTE: You will need to
angle the shrouds so that the crank passes through the hole in the shroud.
3) Remove the 5 screws holding the left side front shroud to the frame and remove it (Figure B).
4) Reverse Steps 1-3 to install a new front shroud.
FIGURE A
FIGURE B
CHAPTER 9: PART REPLACEMENT GUIDE
