9.17 BATTERY REPLACEMENT
1) Remove the left side rear shroud as outlined in Section 9.11.
2) Disconnect the 2 wires from the battery (Figure A).
3) Remove the wing nut on the battery bracket (Figure B).
4) Swivel the battery bracket out of the way and remove the battery (Figure C).
5) Reverse Steps 1-4 to install a new battery.

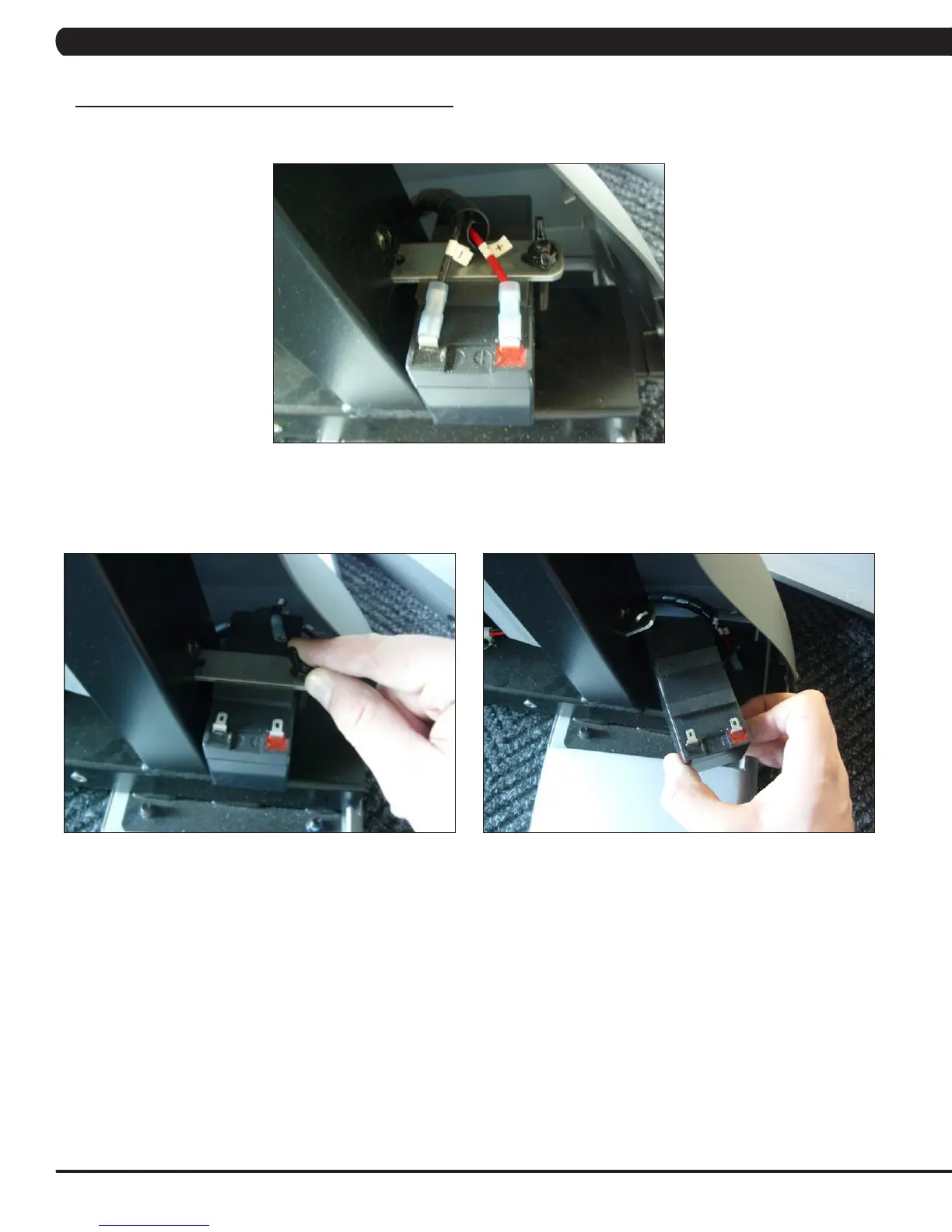

FIGURE CFIGURE B
FIGURE A
CHAPTER 9: PART REPLACEMENT GUIDE
