55
9.18 DRIVE BELT REPLACEMENT
1) Remove the right side front shroud as outlined in Section 9.15.
2) Remove the screw that applies tension to the belt (Figure A).
3) Rotate the tension assembly to remove the tension from the belt (Figure B).
4) Remove the belt (Figure C).
5) Reverse Steps 1-4 to install a new drive belt. NOTE: Be sure to reattach the tension spring. If more tension is needed on the drive belt,
multiple holes are available for the spring attachment (Figure D).
6) Test the bike for function as outlined in Section 9.23.

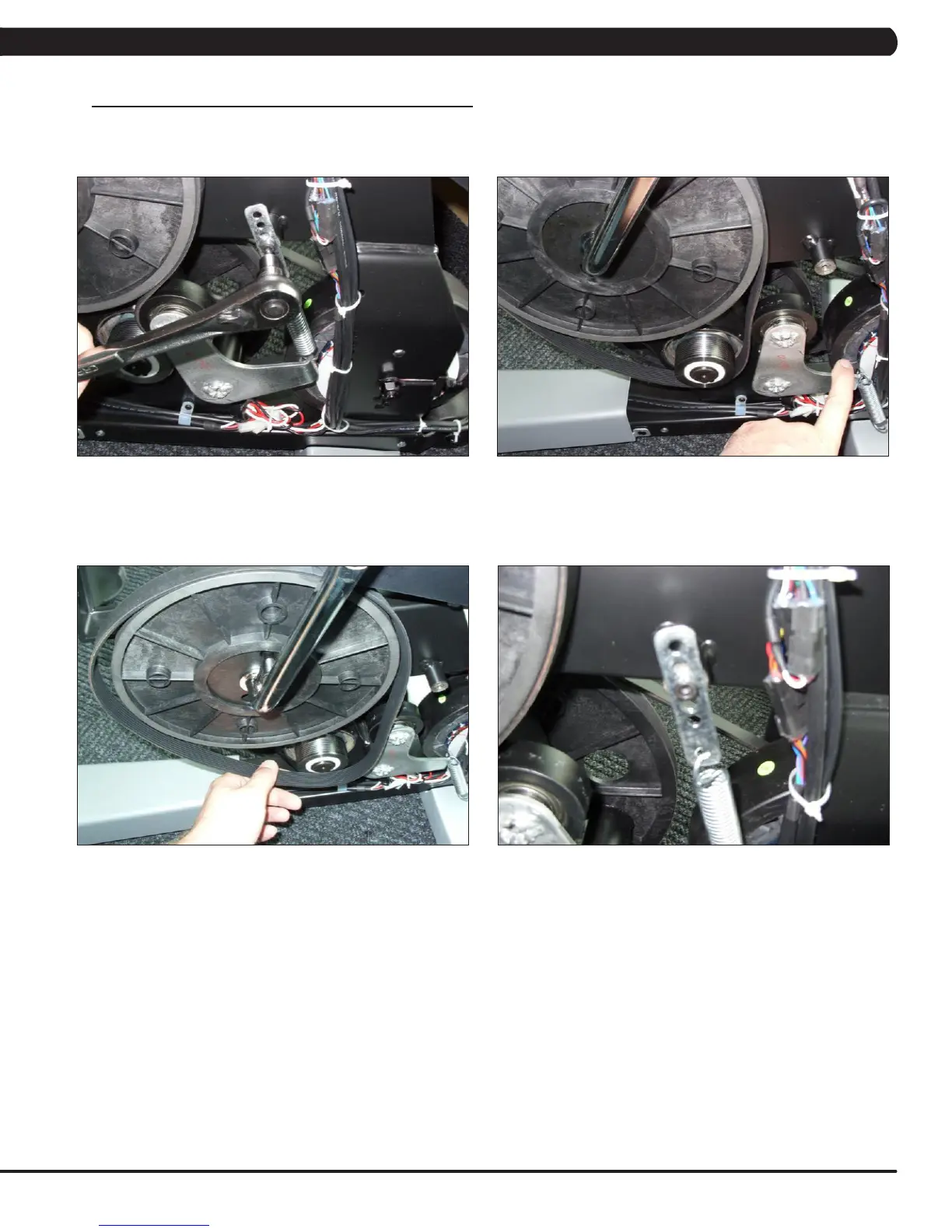

FIGURE A
FIGURE B
FIGURE C
FIGURE D
CHAPTER 9: PART REPLACEMENT GUIDE
