6) Remove the screw holding the rear seat roller to the seat track and remove the roller (Figure G).
7) Remove the 2 screws holding the rear end cap onto the seat track (Figure H).
8) Remove the end cap (Figure I).
9) Depress the seat position lever and pull the lower seat frame off of the seat track (Figure J).
10) Reverse Steps 1-9 to install a new lower seat frame.
11) Test the bike for function as outlined in Section 9.23.

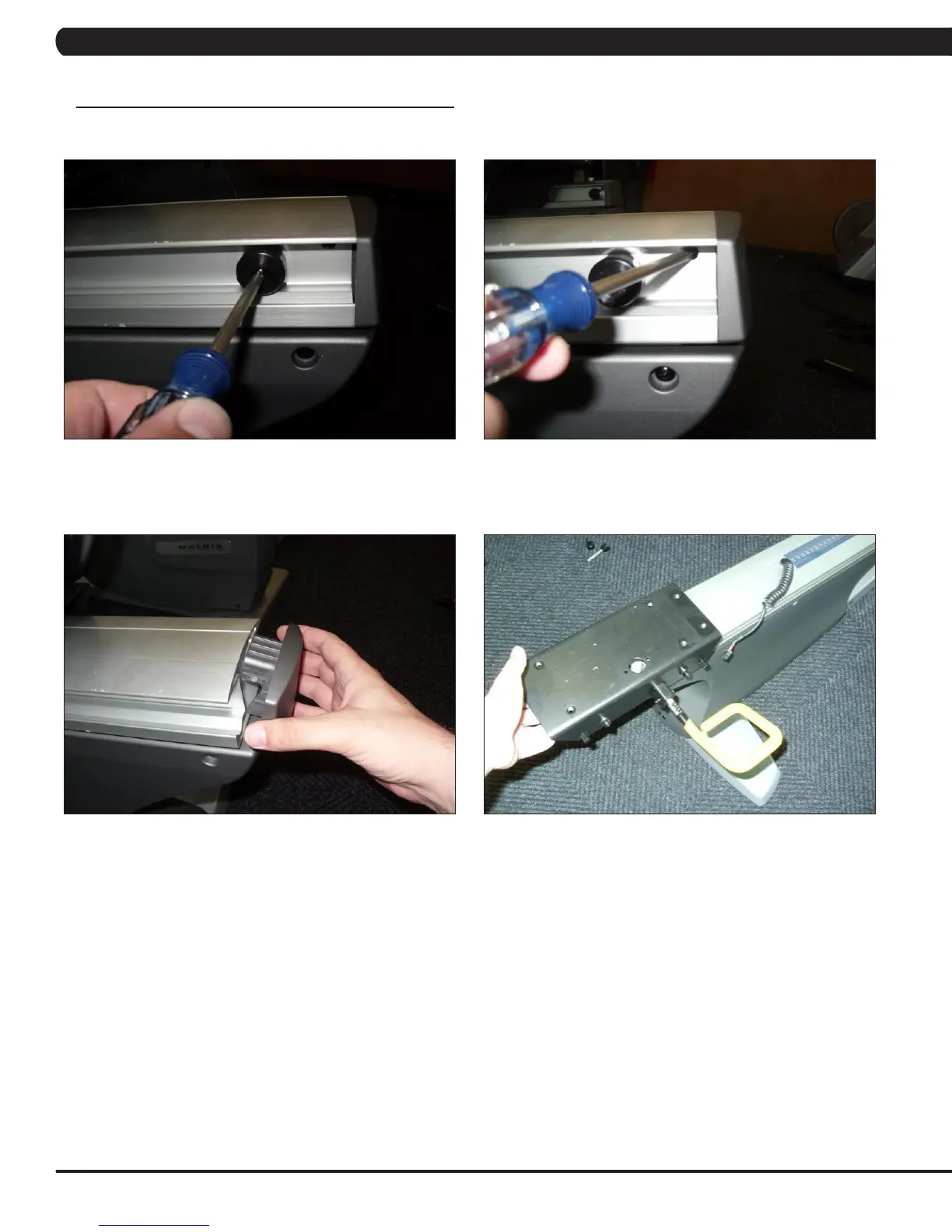

FIGURE G
9.11 LOWER SEAT FRAME REPLACEMENT - CONTINUED
FIGURE H
FIGURE JFIGURE I
CHAPTER 9: PART REPLACEMENT GUIDE
