Matrix R5X-05 User Manual

35

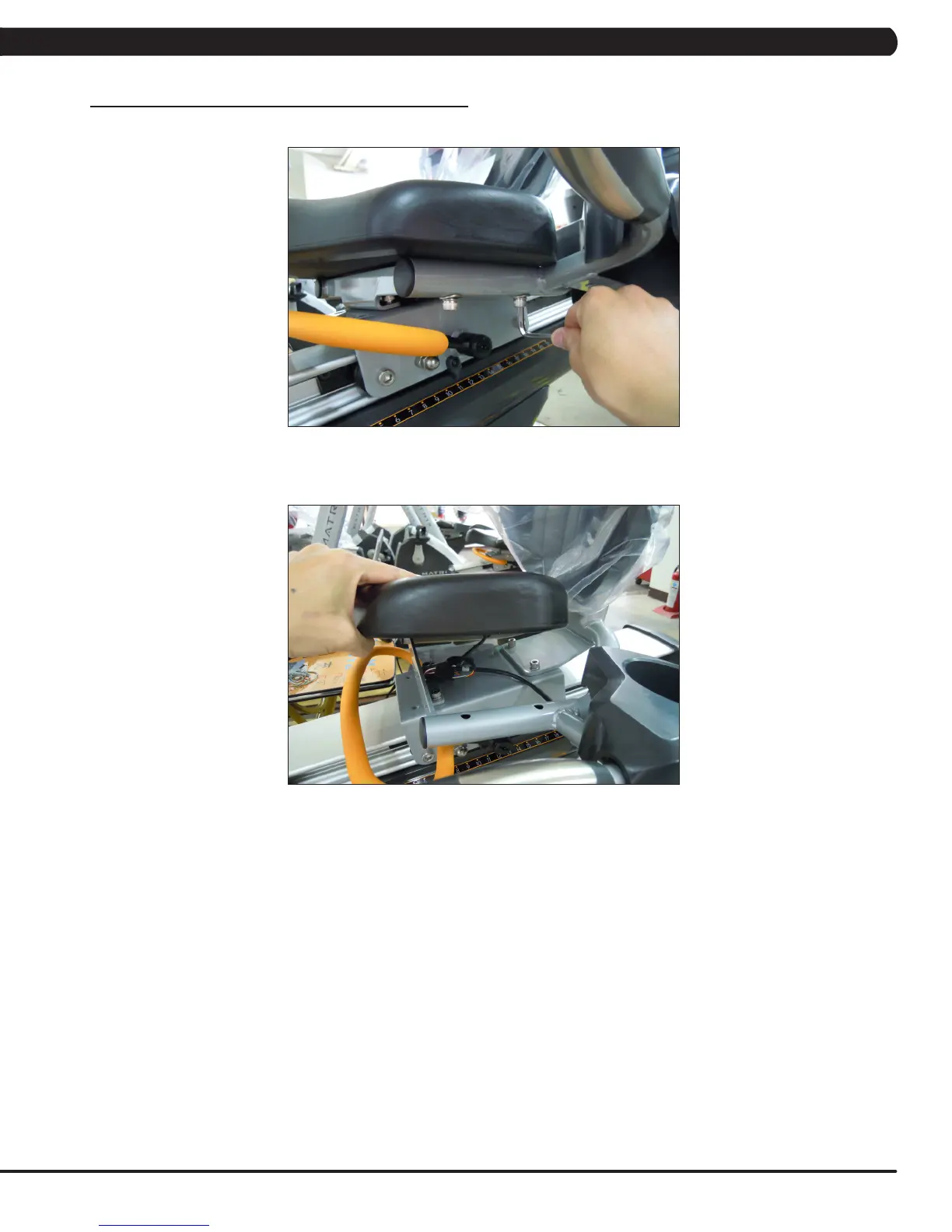

9.5 SEAT PAD REPLACEMENT
FIGURE B
FIGURE A
1) Remove the 4 screws holding the seat pad to the seat frame (Figure A).
2) Lift the seat pad away from the seat frame (Figure B).
3) Reverse Steps 1-2 to install a new seat pad.
CHAPTER 9: PART REPLACEMENT GUIDE
