9.9 SEAT SLIDE SET REPLACEMENT - CONTINUED

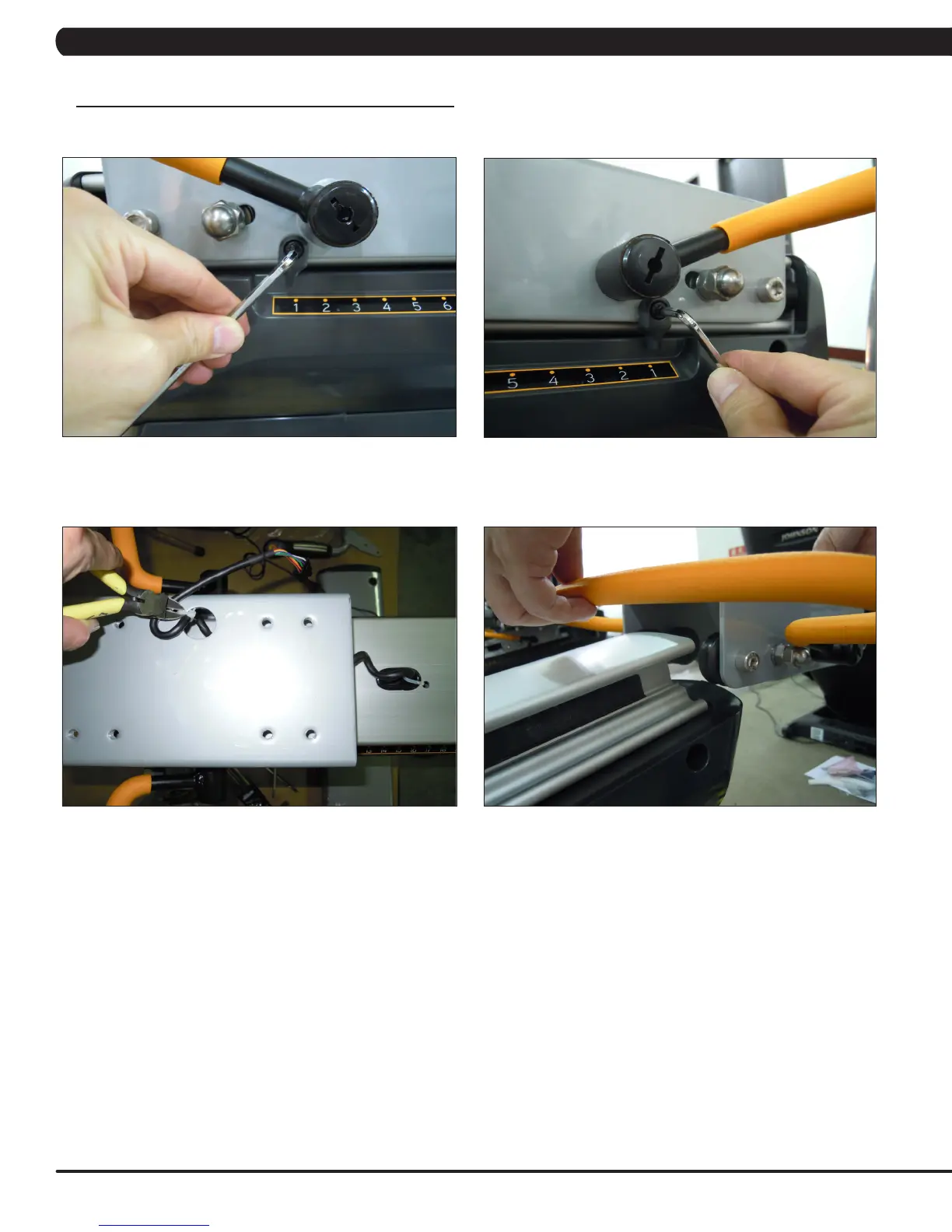

6) Remove the 2 screws holding the indicate cap to the seat slide set (Figure E).
7) Remove the indicate cap (Figure F).
8) Cut the cable tie and disconnect the HR wire from seat slide set (Figure G).
9) Depress the seat position lever and pull off the seat slide set from the guide rail set (Figure H).
10) Reverse Steps 1-9 to install a new seat slide set.
11) Test the bike for function as outlined in Section 9.24.
FIGURE E
FIGURE F
CHAPTER 9: PART REPLACEMENT GUIDE
FIGURE G
FIGURE H
