72
10.5 TV BRACKET INSTALLATION INSTRUCTIONS - CONTINUED
CHAPTER 10: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE

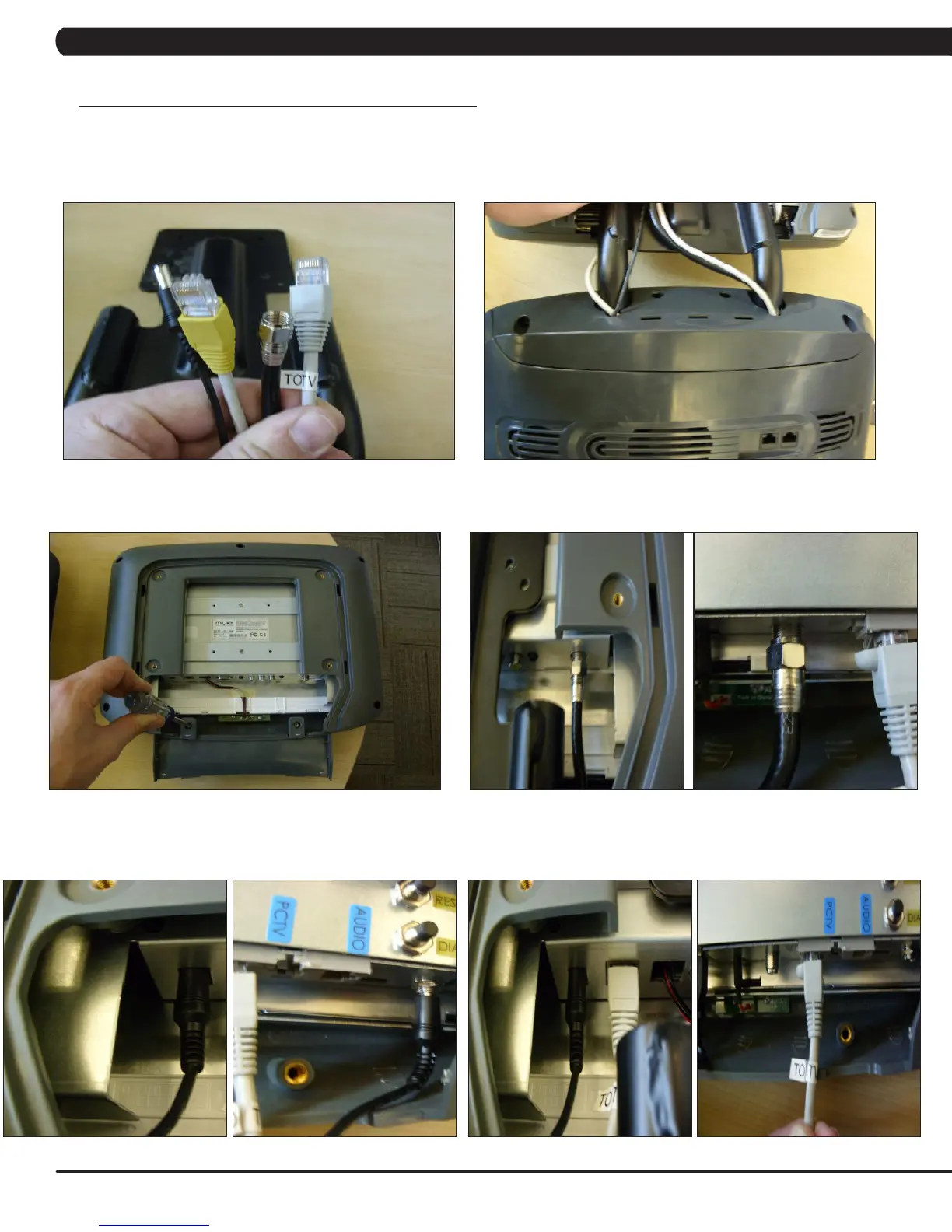

18) There should now be 4 wires sticking out the top of the console - TV power wire, net wire, coax cable, and controller wire (Figure T).
19) Re-attach the console back to the front using the bottom 6 screws removed in Step 2. NOTE: Be sure to route the wiring so that it is not
pinched by the bracket or plastic when installing the top 2 screws (Figure U). The small cover with the Matrix logo that makes up the top of the
rear console cover is no longer used with a TV bracket.
20) Mount the console back onto the unit making sure to make all the necessary wire connections including the coax cable.
21) Mount the plastic front plate to the TV (Figure V).
22) Plug the coax cable into the back of the TV (Figure W).
23) Plug the power wire into the back of the TV (Figure X).
24) Plug the controller wire into the back of the TV (Figure Y). NOTE: The controller wire should be plugged into the PCTV port on the PCTV.
FIGURE T FIGURE U
FIGURE V FIGURE W
FIGURE X FIGURE Y
MYE TV PCTV
MYE TV PCTV MYE TV PCTV
