18
The Service Mode allows an authorized service provider to test and store information on the bike.
1) To enter Service Mode, press ENTER, 3, 0, 0, 1, ENTER on the upper display. Service Mode will appear on the display (Figure A).
2) Select the key next to the setting that needs to be changed, and follow the prompts to change.
3) Press the ENTER key once the desired setting is correct to save.
4) Press HOME or press and hold the STOP key for 3-5 seconds to return to normal operation. NOTE: If a setting has been changed, the unit
and console power should be reset. Cycle the power switch, and press and hold the CHANNEL UP and CHANNEL DOWN keys for 3-5 sec-
onds to reset the console power.

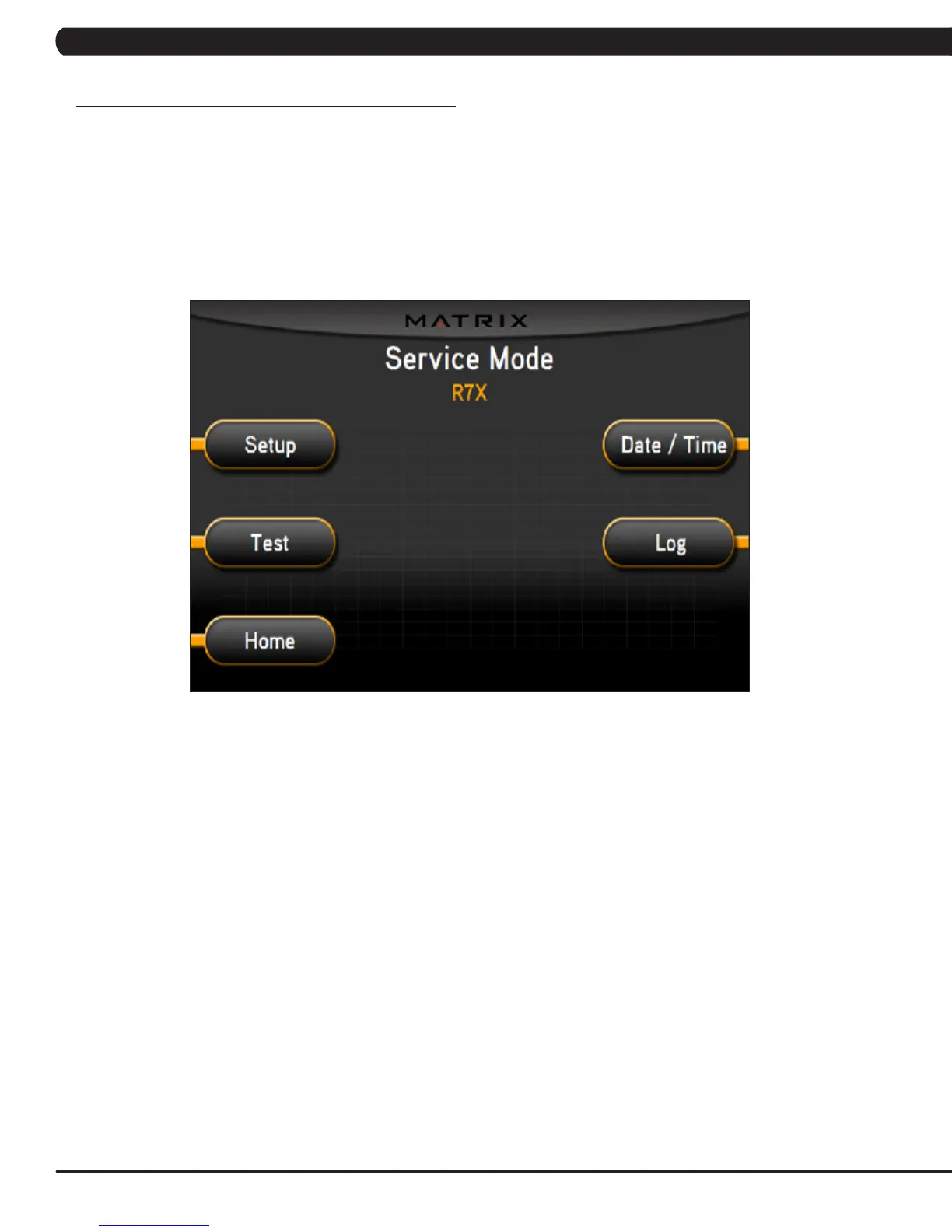

FIGURE A
7.1 SERVICE MODE OVERVIEW
CHAPTER 7: SERVICE MODE
