9.13 REAR SHROUD REPLACEMENT

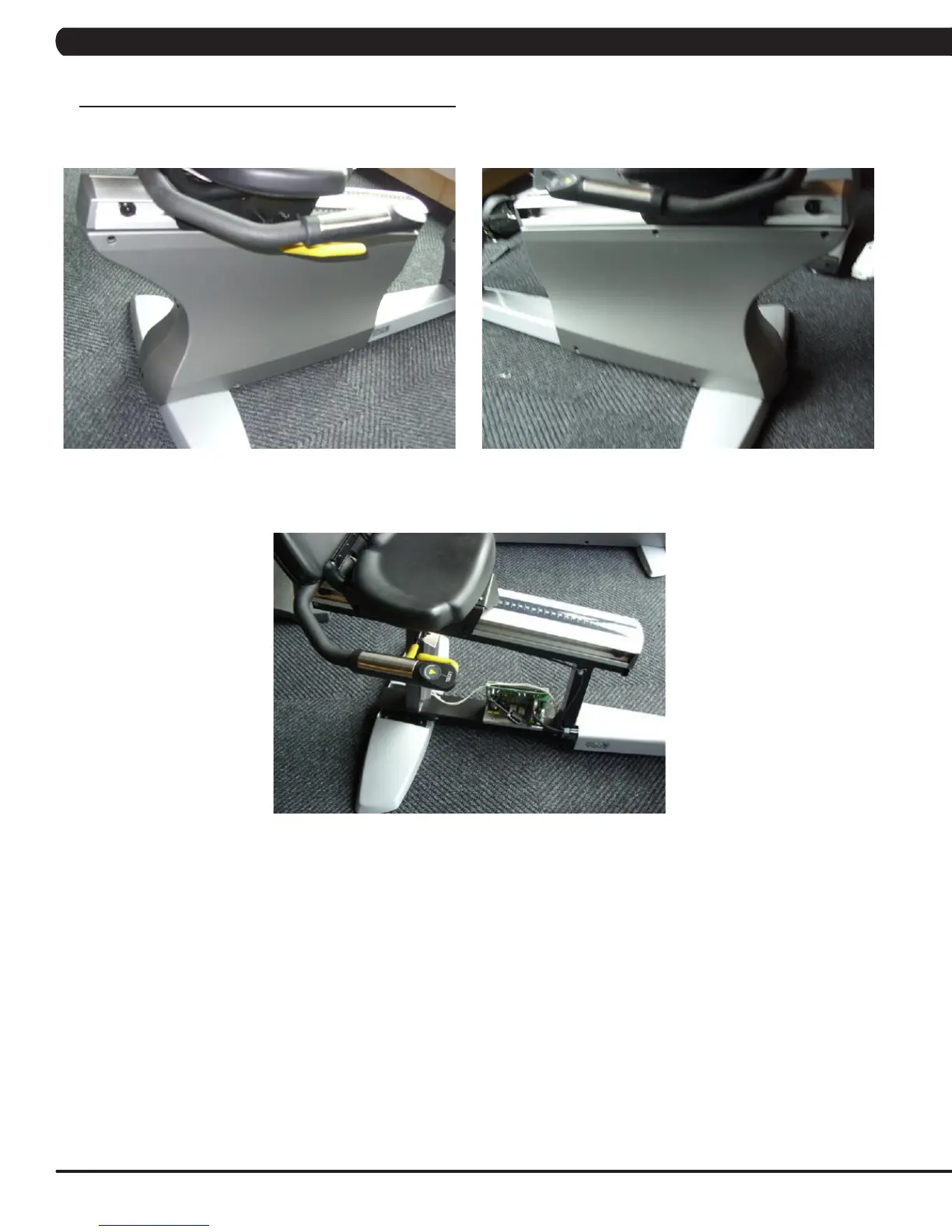

1) Remove the 8 screws holding the right side shroud to the frame and left shroud and remove it (Figure A).
2) Remove the 6 screws holding the left side shroud to the frame and remove it (Figure B).
3) Figure C shows the bike with both rear shrouds removed.
4) Reverse Steps 1-2 to install a new rear shroud.
FIGURE A
FIGURE B
FIGURE C
