Matrix ROWER-02 Service Manual

16
9.1 RECEIVER SET REPLACEMENT - CONTINUED
CHAPTER 9: PARTS REPLACEMENT GUIDE

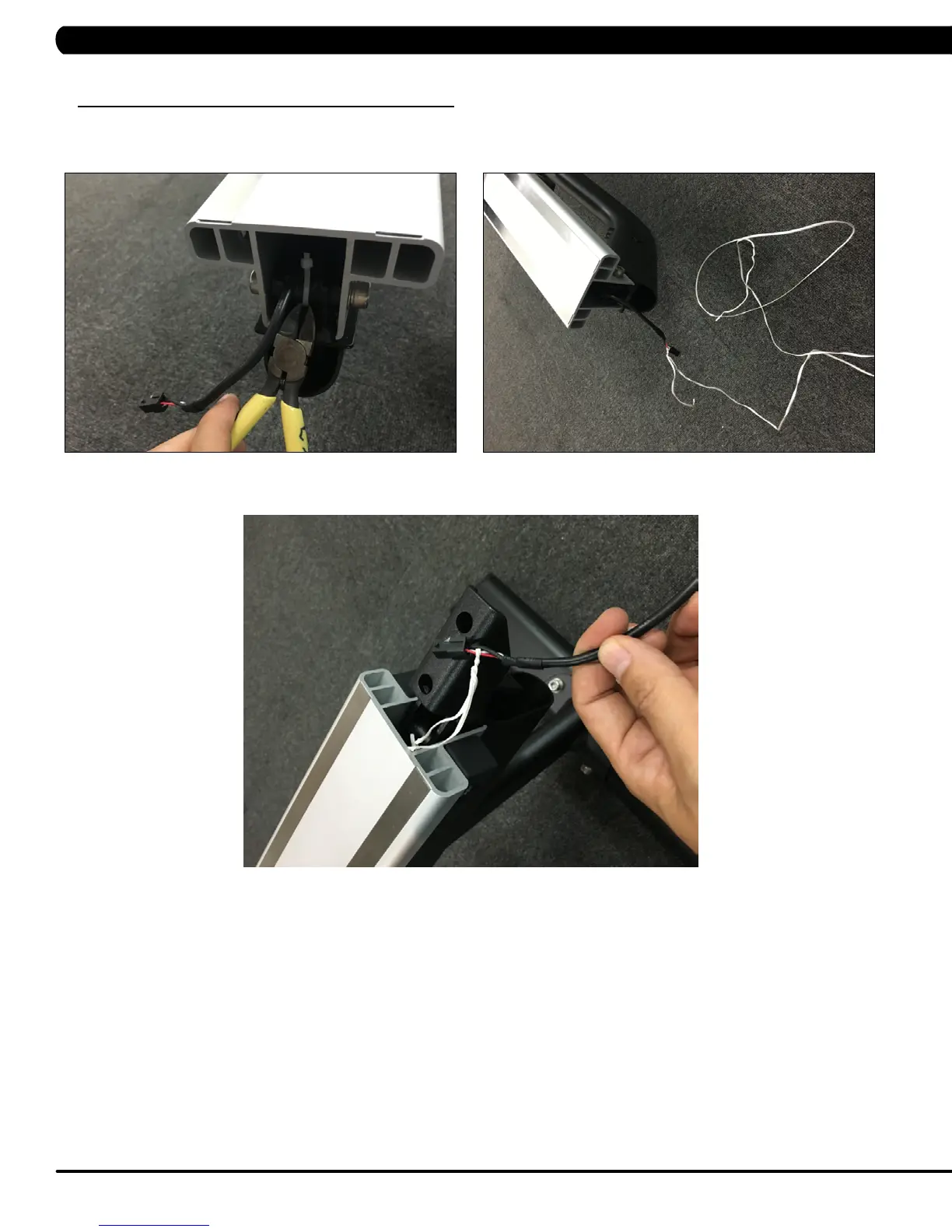

5) Cut off the cable tie (Figure E).
6) Tie the wire on damaged Receiver Set (When you pull out Receiver Set, the wire will be inside the rail. It will be easier to replace new
Receiver Set) - Figure F.
7) Take off the damage Receiver Set (Figure G).
FIGURE E
FIGURE F
FIGURE G
