9.1 RECEIVER SET REPLACEMENT

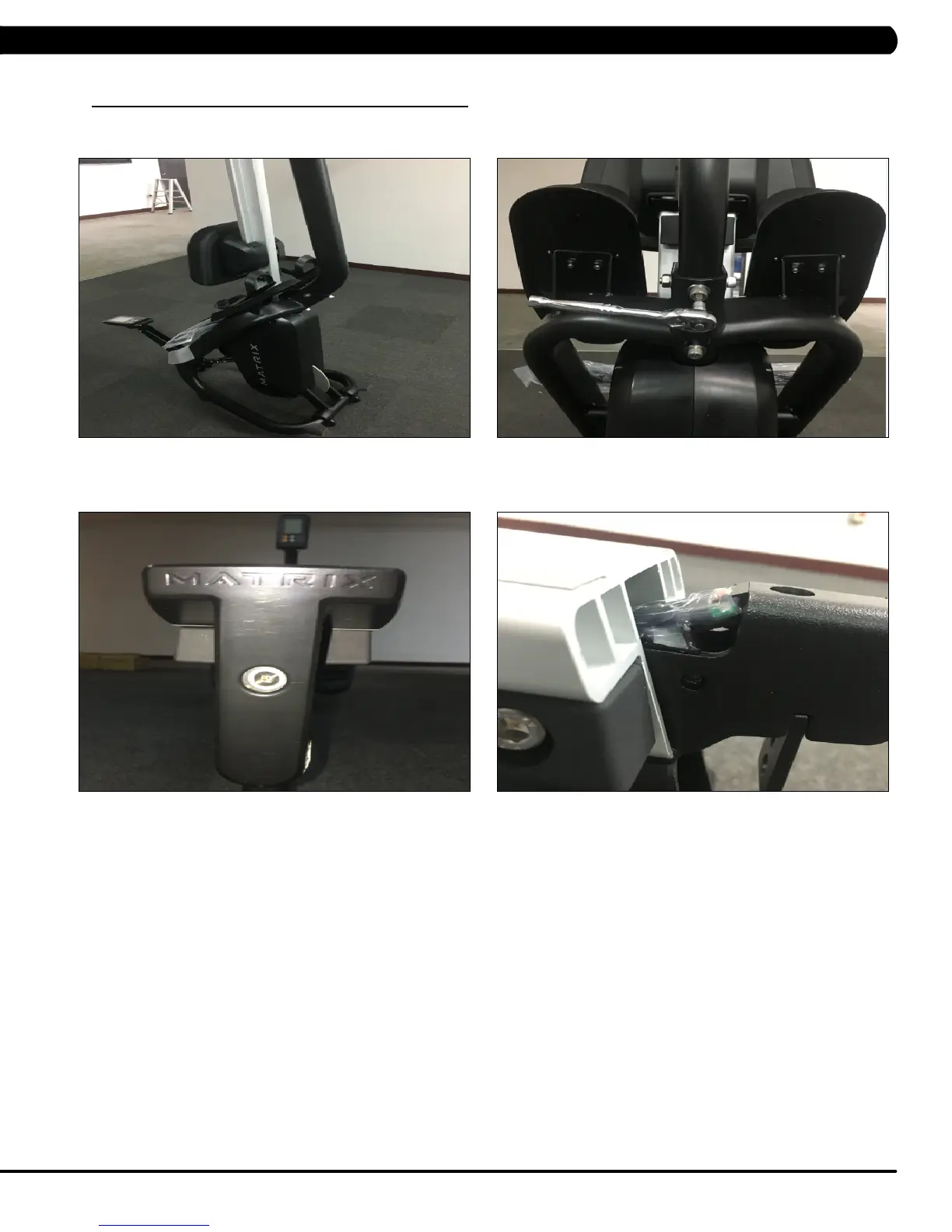

1) Upright the machine (Figure A).
2) Remove the 3 screws holding rail set to the frame (Figure B).
3) Remove the one screw holding end cover to the rail (Figure C).
4) Remove the 2 screws holding Receiver Set to the rail (Figure D).
FIGURE C
FIGURE D
CHAPTER 9: PARTS REPLACEMENT GUIDE
FIGURE A
FIGURE B
