9.4 TENSION CONTROL REPLACEMENT
CHAPTER 9: PARTS REPLACEMENT GUIDE
1) Refer to 9.3.1 and 9.3.2 to remove the covers.
2) Remove the spring (Figure A).
3) Turn the cover to left and it will be removed (Figure B).
4) Remove the 2 screws holding tension knob to the frame (Figure C).
5) Remove the tension knob (Figure D).

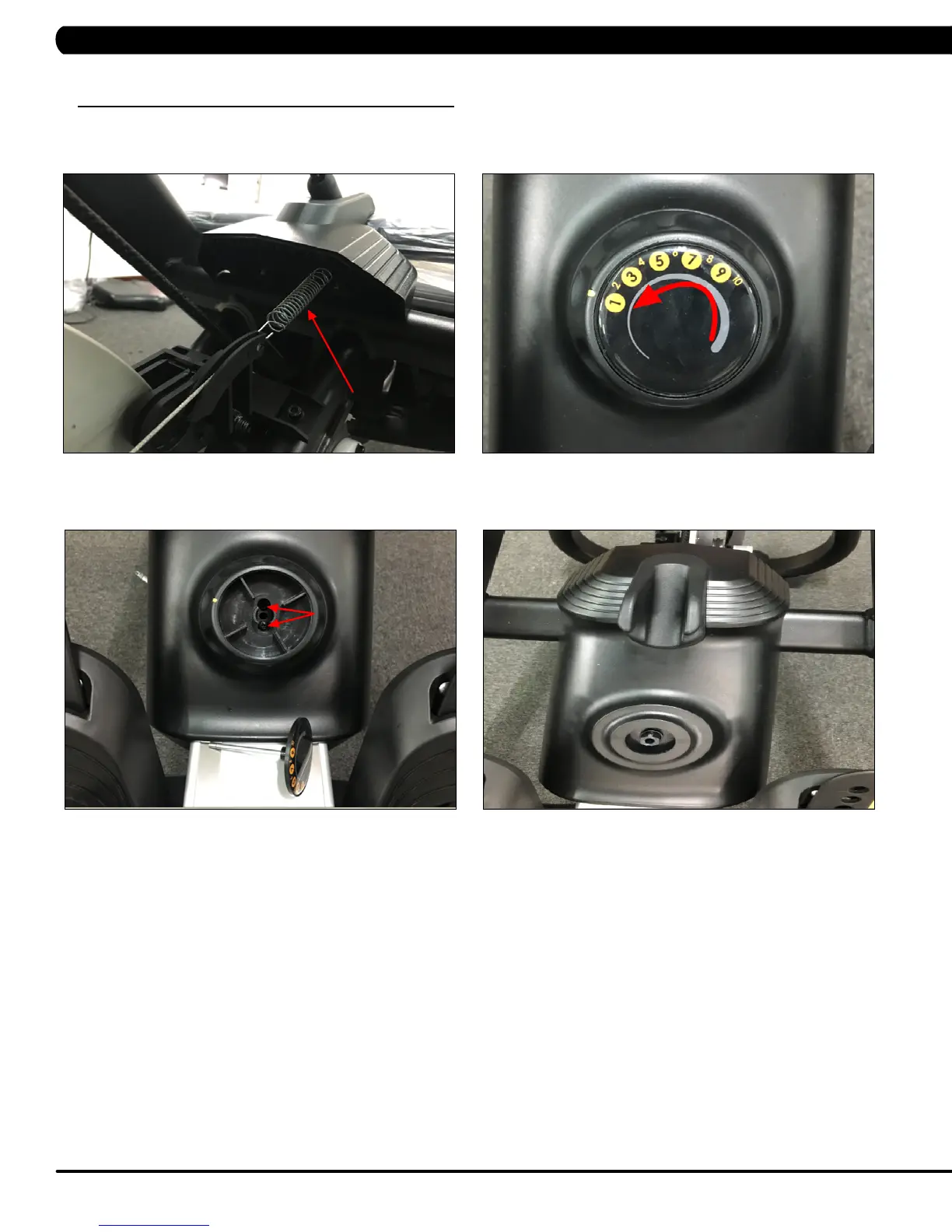

FIGURE A
FIGURE B
FIGURE C
FIGURE D
