9.3 ECB REPLACEMENT - CONTINUED
CHAPTER 9: PARTS REPLACEMENT GUIDE

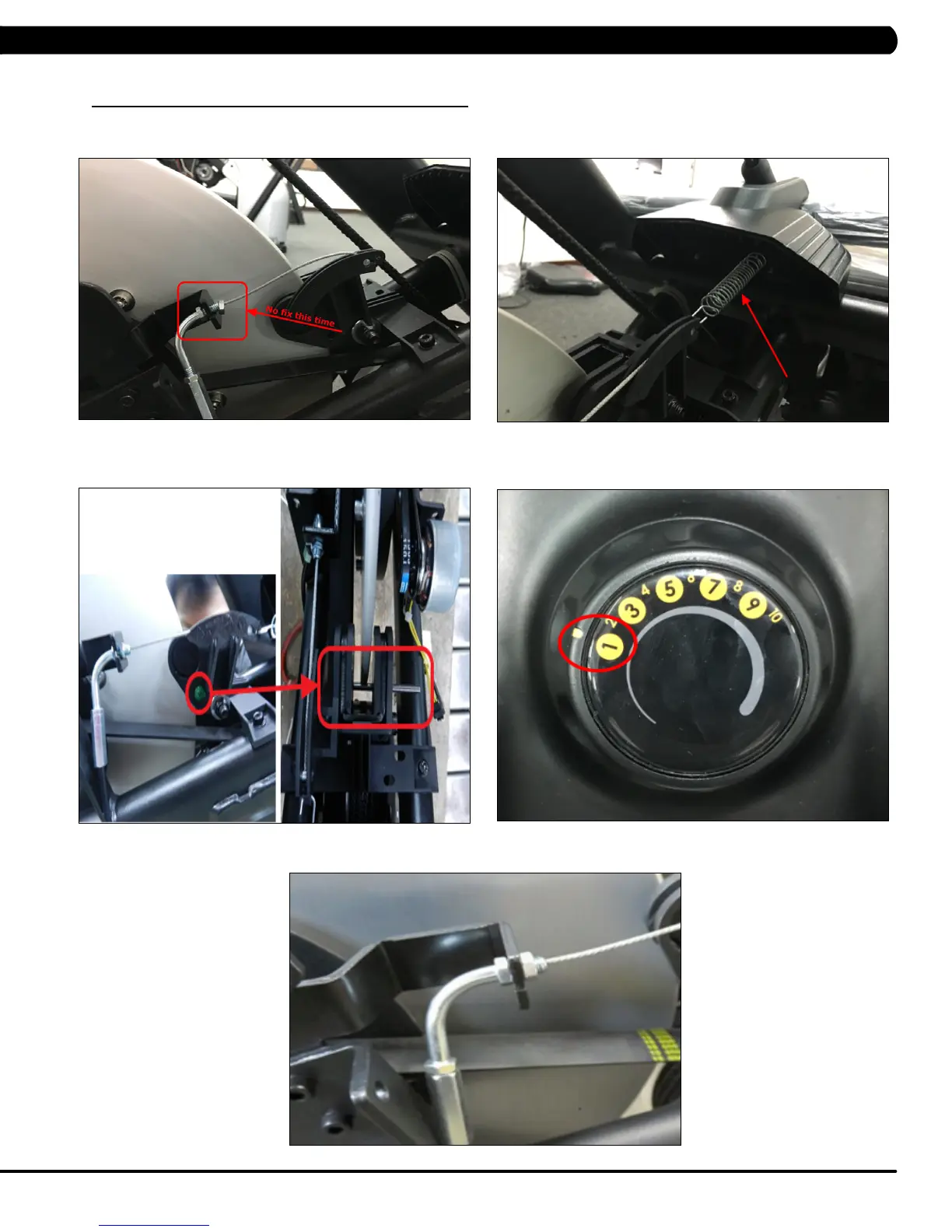

7) Install the tension wire (Figure G). Note: Don't fix the tension wire to the frame at this time.
8) Install the spring (Figure H).
9) Insert φ8 rod through the hole of ECB to touch the flywheel (Figure I).
10) Adjust Tension level to the first paragraph (Figure J).
11) Adjust the tightness of the cable (Figure K).
FIGURE K
FIGURE J
FIGURE G
FIGURE H
FIGURE I
