Matrix ROWER-02 Service Manual

25
9.6 BELT PULLEY SET REPLACEMENT - CONTINUED
CHAPTER 9: PARTS REPLACEMENT GUIDE

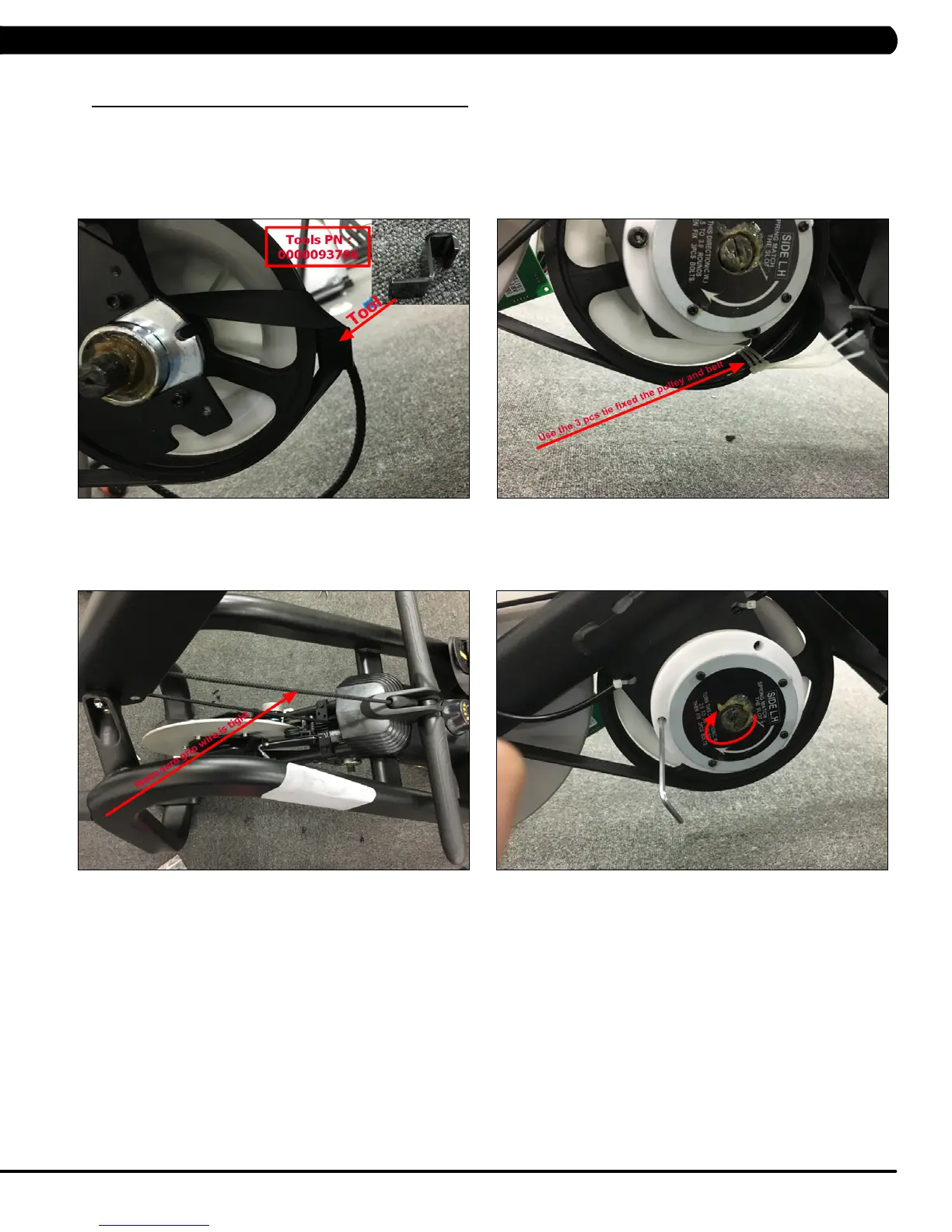

6) When the belt pulley set is fixed, put
the belt installation tool on the pulley, turn the pulley until the belt is installed (Figure E).
Note:
6-1 The belt installation tool part number: 0000093786.
6-2 If there’s no belt installation tool, please use 3 pcs cable tie to fix the pulley and belt (Figure F).
6-3 Rotate the pulley at least 3 full rotations to insure that the belt is centered. You may need to slowly help walk the belt into place by
hand.
7) Install the grip and make sure grip wire is tight (Figure G).
8) Insert a pointed screwdriver into the screw holes on Left/Right spiral spring and follow the direction of rotation indicated by 2½ (Figure H).
FIGURE G
FIGURE H
FI
GURE E
FIGURE F
