9.7 FLY WHEEL SET REPLACEMENT - CONTINUED
CHAPTER 9: PARTS REPLACEMENT GUIDE

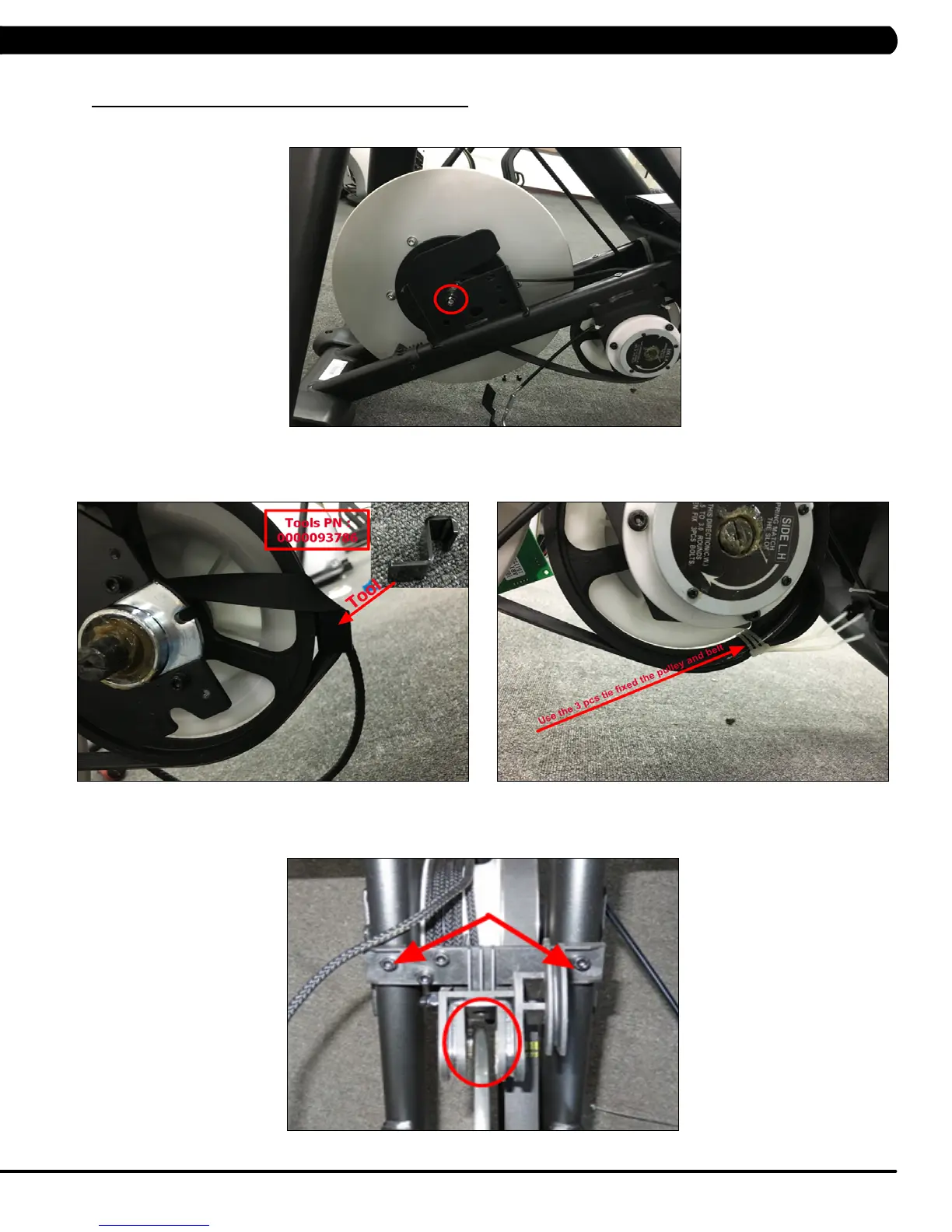

6) Tighten the fly wheel screws to 400kgf-cm (Figure E).
7) When the belt pulley set is fixed, put the belt installation tool on the pulley, turn the pulley until the belt is installed (Figure F & G).
Note: Please refer to 9.6 for installation steps.
8) Install the ECB set as outlined in Section 9.3 (Figure H).
FIGURE F
FIGURE G
FIGURE E
FIGURE H
