Matrix T1XE-04 User Manual

57
9.10 DRIVE BELT REPLACEMENT - CONTINUED

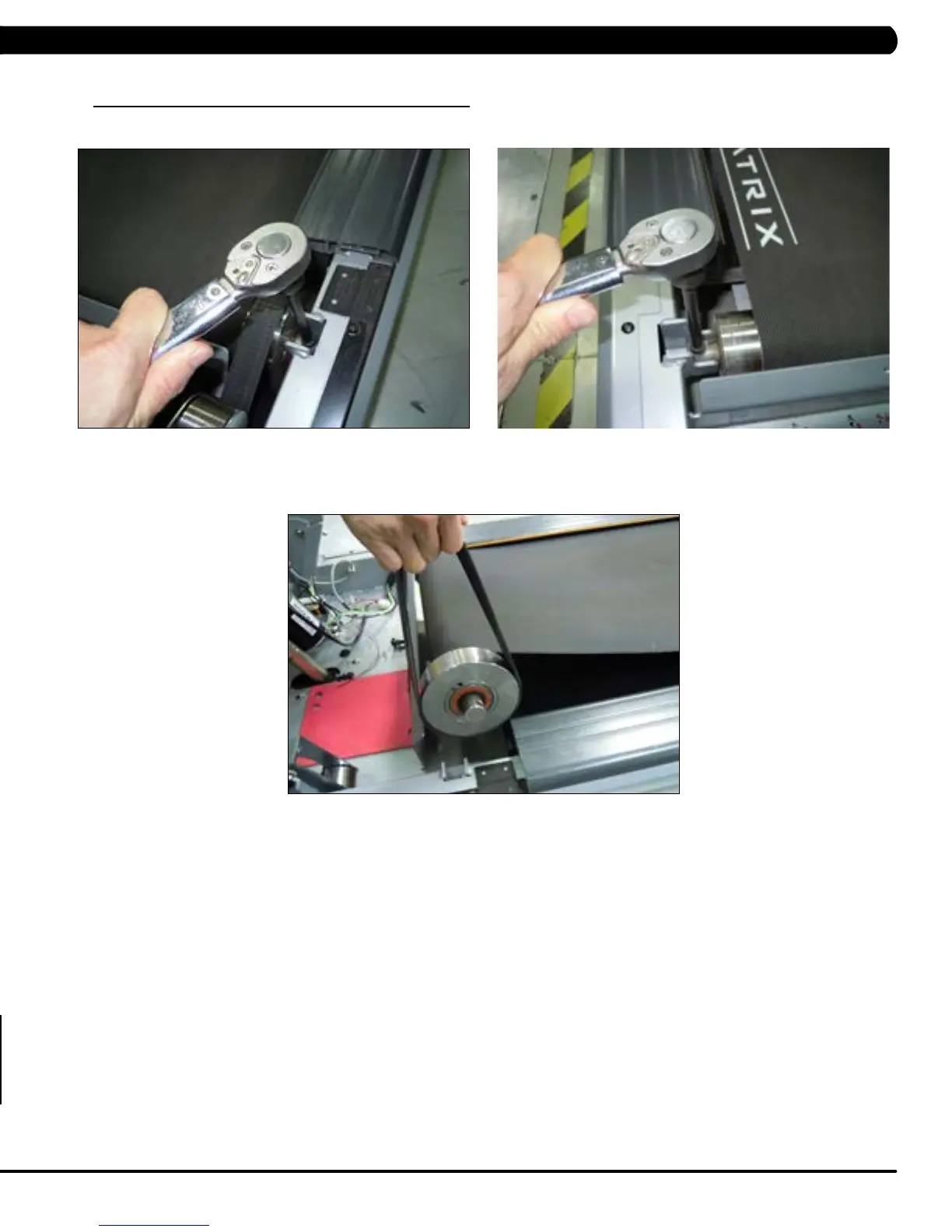

FIGURE E FIGURE F
FIGURE G
7) Remove the two 8 mm screws from front roller (Figures E & F).
8) Lift the roller and remove the old drive belt (Figure G).
9) Reverse Steps 1-8 to install a new drive belt. NOTE: After installing a new belt, check it for correct alignment to the motor pulley before
setting the tensioner in place.
10) Test the treadmill for function as outlined in Section 9.21.
CHAPTER 9: PART REPLACEMENT GUIDE
