9.14 CUP HOLDER REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Remove the console as outlined in Section 9.12.

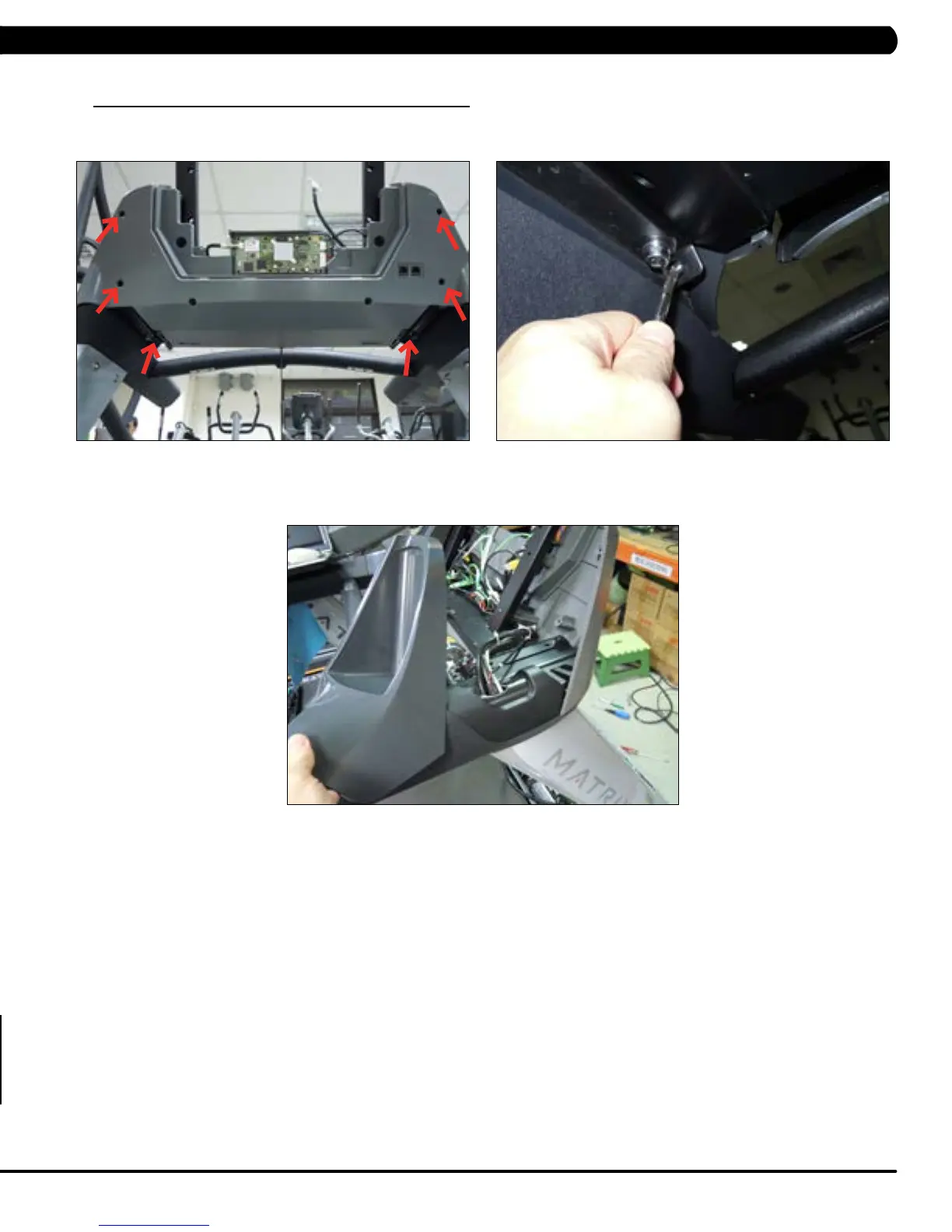

2) Remove the 3 screws holding the cup holder to the console frame (Figure A & B)
3) Remove the cup holder (Figure C).
4) Reverse Steps 1-3 to install a new cup holder.
FIGURE A
FIGURE B
FIGURE C
