Matrix T1XE-04 User Manual

62
FIGURE E
FIGURE F
FIGURE G FIGURE H

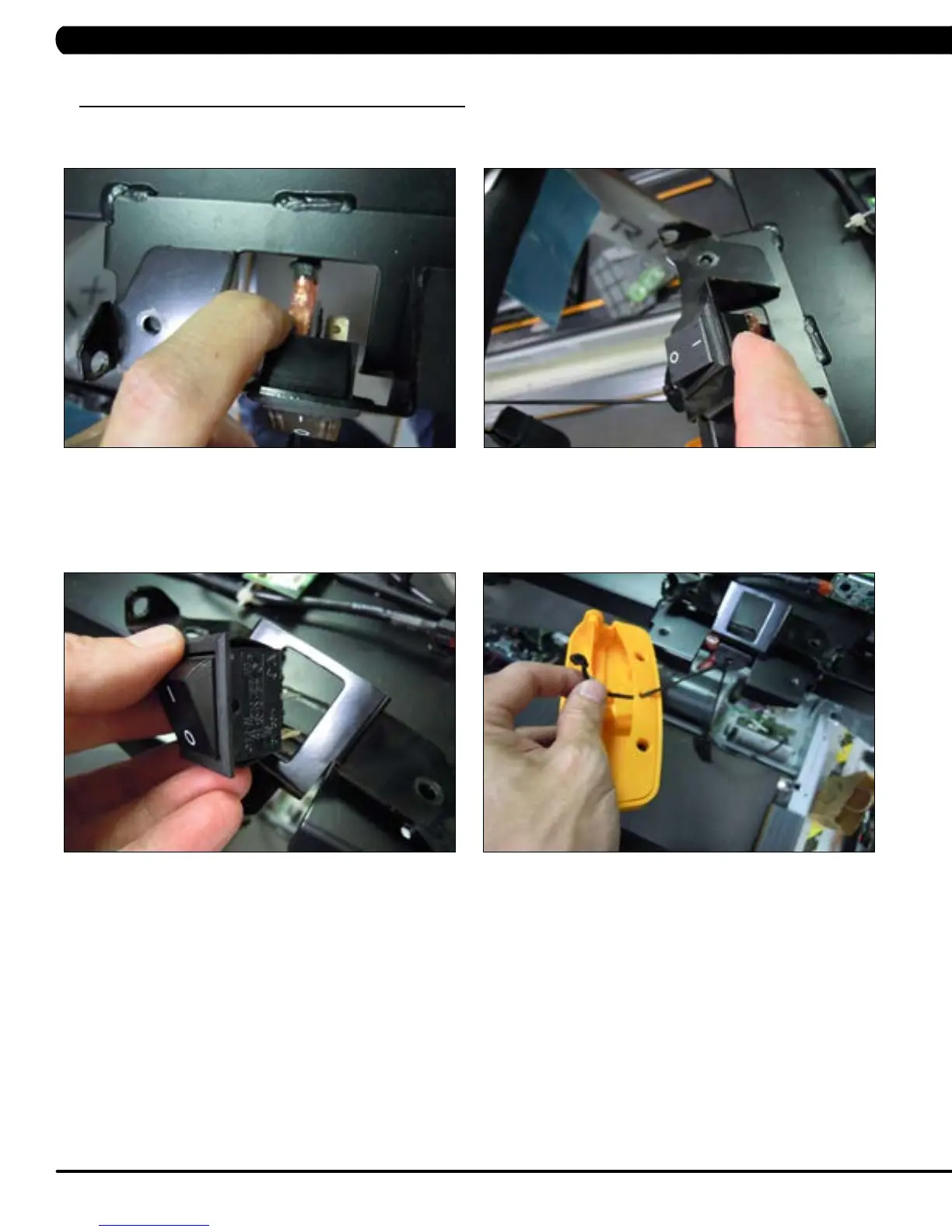

9.13 EMERGENCY STOP SWITCH REPLACEMENT - CONTINUED
6) Disconnect the 2 wires plugged into the back of the emergency stop switch (Figure E).
7) Depress the tabs on the top and the bottom of the emergency stop switch (Figure F).
8) Once the tabs are depressed, the emergency stop can be removed from the emergency stop frame (Figure G).
9) Reverse Steps 1-8 to install a new emergency stop switch. NOTE: If replacing the emergency stop key, be sure to attach the safety clip
string to the emergency stop key before installing it (Figure H).
10) Test the treadmill for function as outlined in Section 9.21.
CHAPTER 9: PART REPLACEMENT GUIDE
