Matrix VISIONPRO Quick Start 5
To connect the CO cables to the VISIONPRO,
• Use standard, good quality, twisted-wire pair telephone cables to connect the CO Ports of
VISIONPRO to the Trunk Lines from the CO (central office) network.
• Strip off about half a centimeter of the insulation off the wire ends of the CO cable.

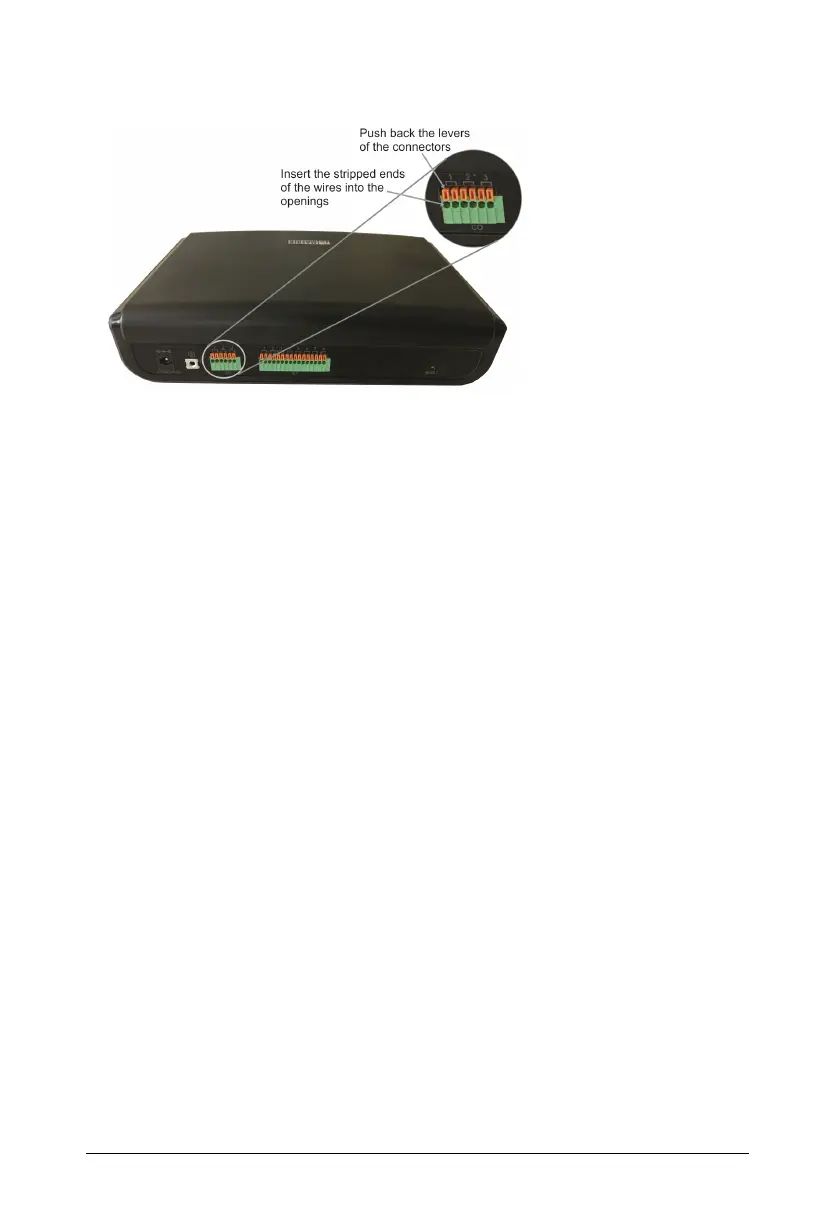

• Using a blunt pin or a small flat screw driver, push back the levers of the connector.
• Insert the stripped ends of the two wires into the two openings of the connector, with one wire
in each opening.
• Ensure that both wires fit neatly into the opening.
• Release pressure on the levers. Both wires will be held in place by spring clamp action.
If you need to remove the wires,
• Push back the levers.
• Pull out the wires gently.
• Release pressure on the levers.
To connect the SLT cables to the VISIONPRO,
• Use standard twisted wire pair cables of good quality to connect the analog single line
telephone instruments to the SLT Ports of VISIONPRO.
