27
ASSEMBLY
STEP 5 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES
PART 9: PREMIUM KIT ASSEMBLY

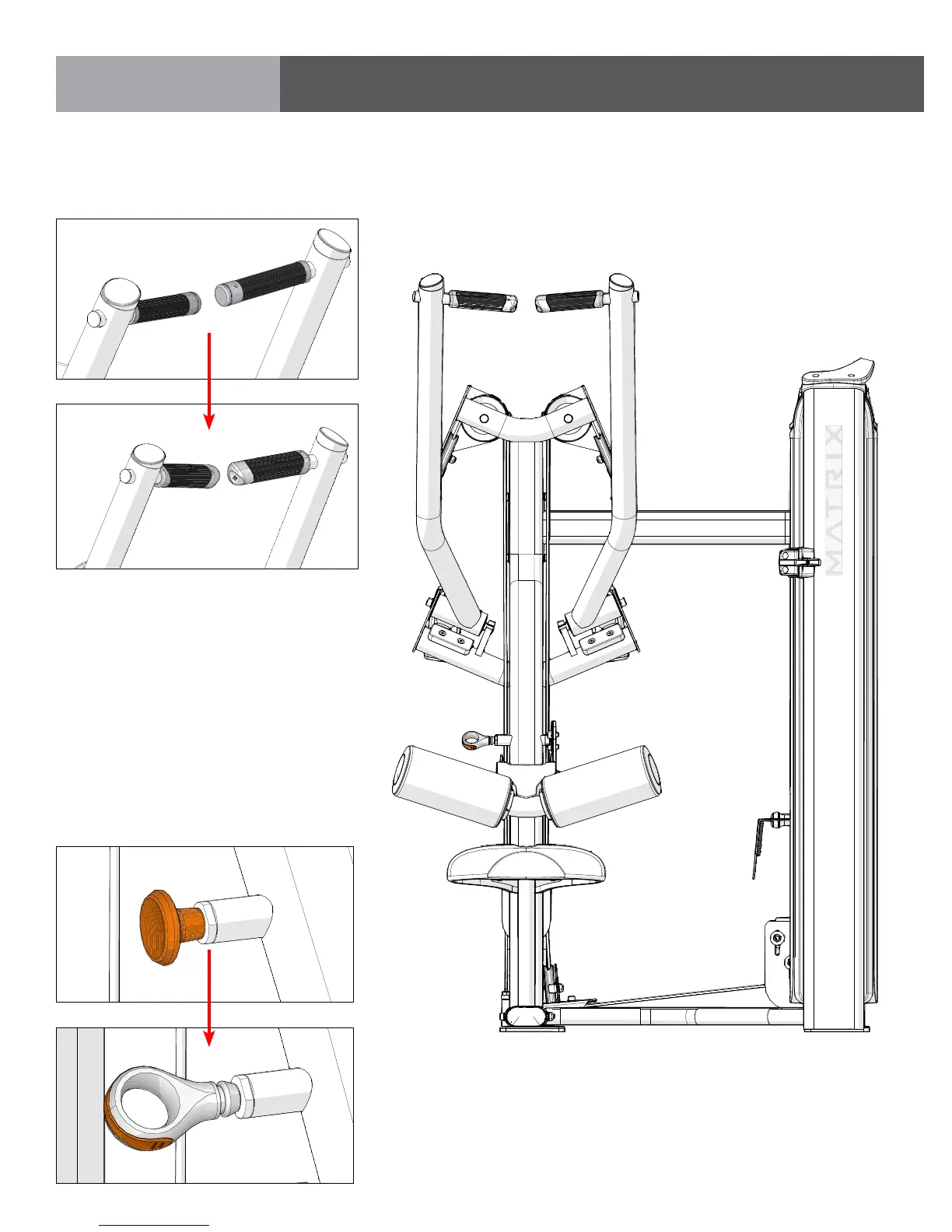

Grips & Pull Pin
1. Remove the end caps using a 3 mm
Allen wrench.
2. Cut off and discard the grips.
3. Remove inner collars with a 3 mm allen
wrench.
4. Assemble the ASG grip as shown; lock
inner collars using a 4 mm Allen wench
(torque to 8 N-m/5 ft-lbs.), and a 3 mm
Allen wrench to secure the end caps.
5. Orient ASG grips as shown, with
thumb index angled towards user for
comfort.
Remove value pull pin and replace with premium pull
pin using an adjustable wrench. Fully tighten.
