10
PART 1: USER FRAME ASSEMBLY
STEP 1 | USER FRAME INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
1 Outer Frame Support 1
2 M10 Nylock Nut 2
3 User Frame 1
4 M10 Flat Washer 4
5 Wide Cupped Flange 1
6 M10 X 125L SHC 2

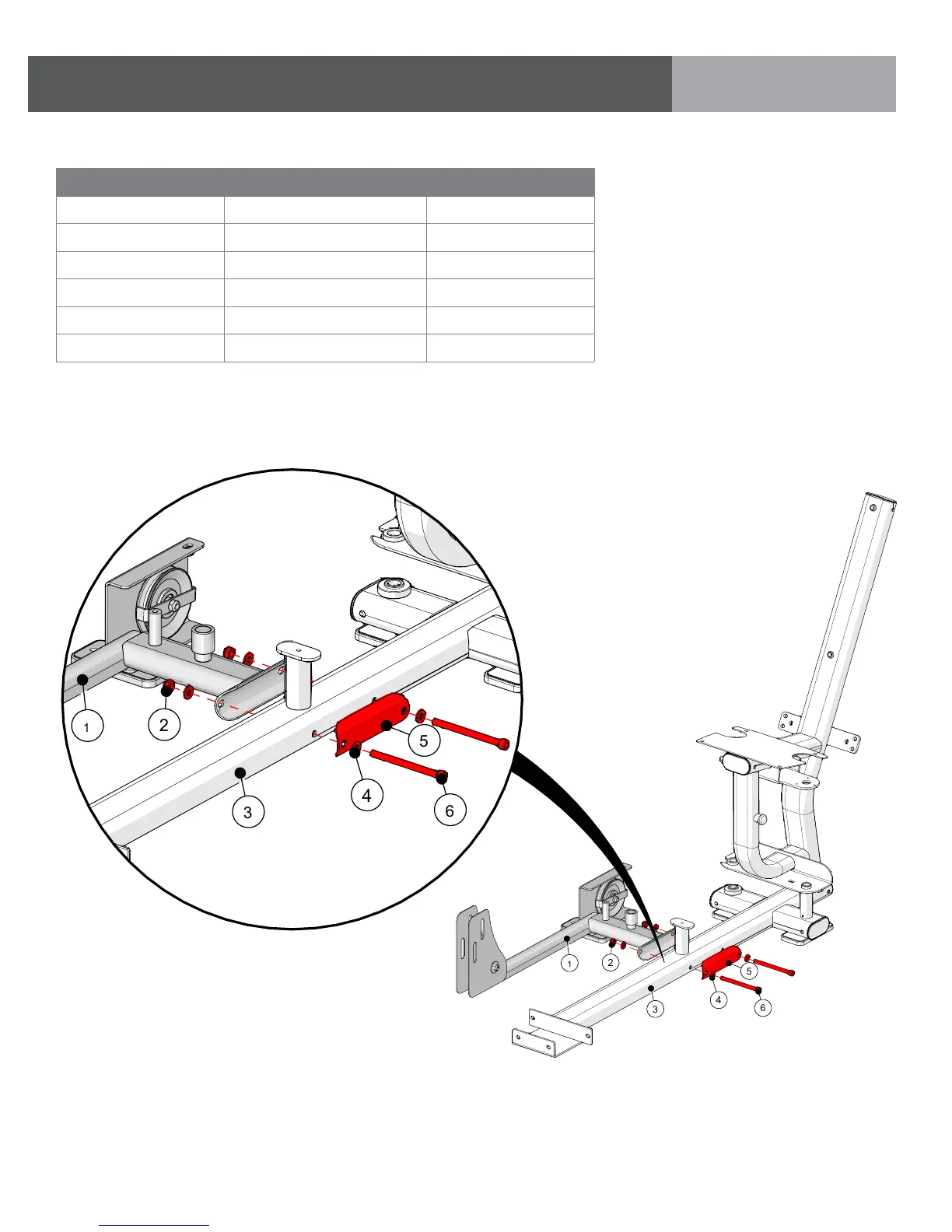

Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
ASSEMBLY
1
2
5
4
3
6
1
2
5
3
6
