PART 4: RIGHT ARM ASSEMBLY
STEP 2 | RIGHT ARM TO FRAME ASSEMBLY INSTRUCTIONS & NOTES
ASSEMBLY

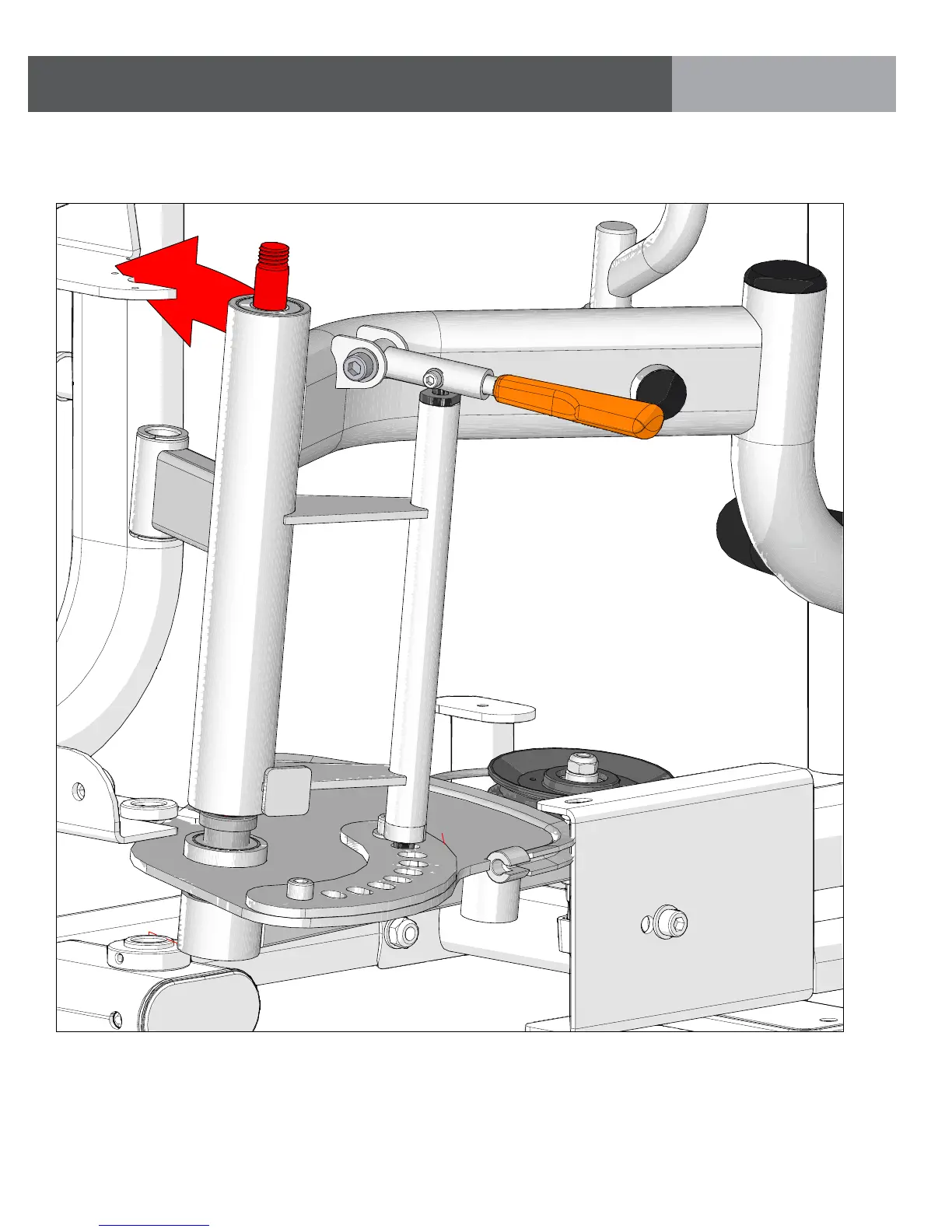

Assemble Right Arm Assembly as shown. Insert axle into housing at bottom, then rotate entire assembly,
locating the top threaded portion of the axle into the slotted bracket.
