Matrix VS-S74 User Manual

22
ASSEMBLY
STEP 2 | LINKAGE ASSEMBLY INSTRUCTIONS & NOTES
PART 6: LINKAGE ASSEMBLY
ID DESCRIPTION QUANTITY
4 M10 Flat Washer 2
26 M10 X 15L SHC 2
36 Axle 1

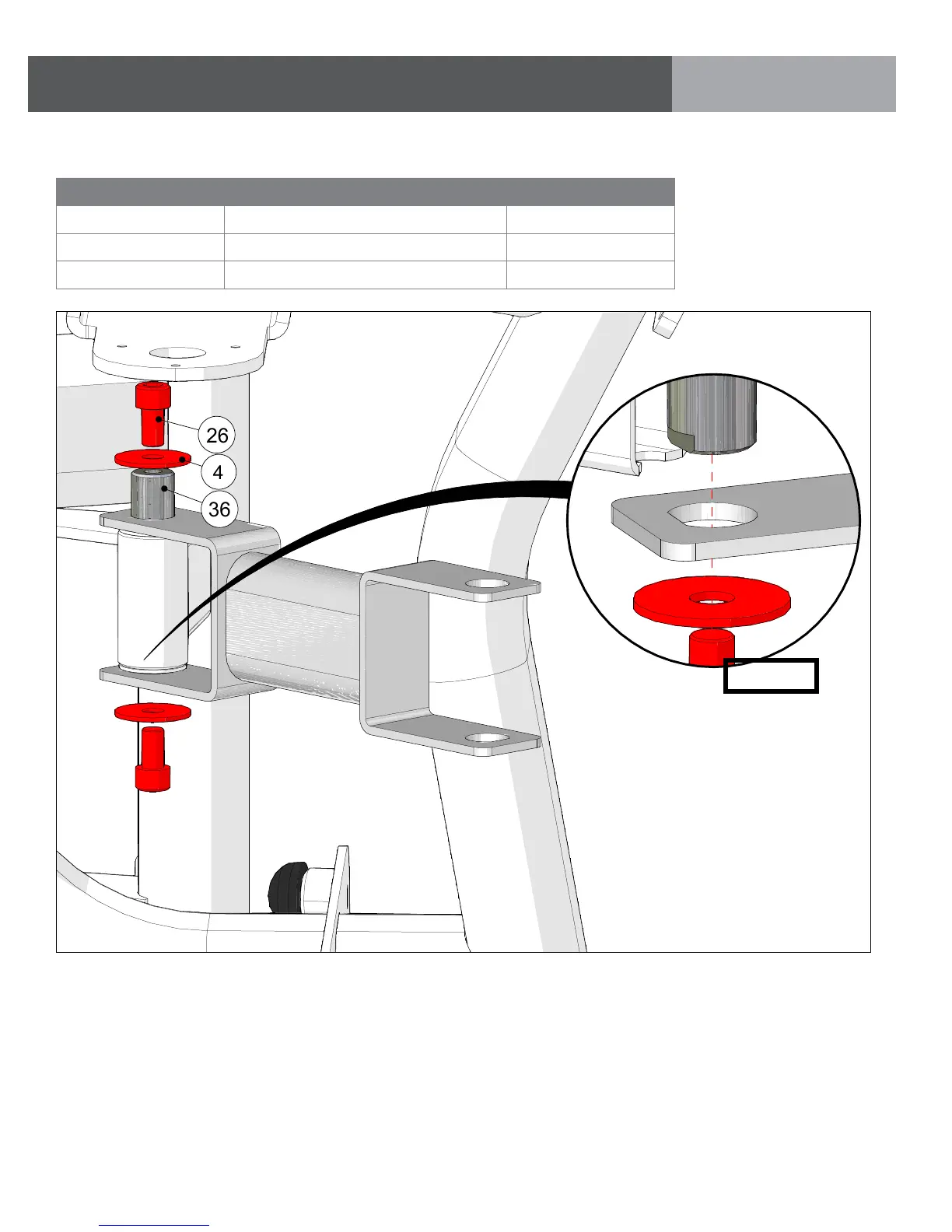

Assemble the axle from the top of the linkage, and locate the two “D” features to each other
as shown in Detail A. Torque to 77 N-m/57 ft-lbs.
36
26
4
Detail A
