Matrix XER Service Manual
4
of 1
of 1 rating
53 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
28
CH
APT
ER 7:
XI
R/ XER CONSOLE SERVI
C
E MODE

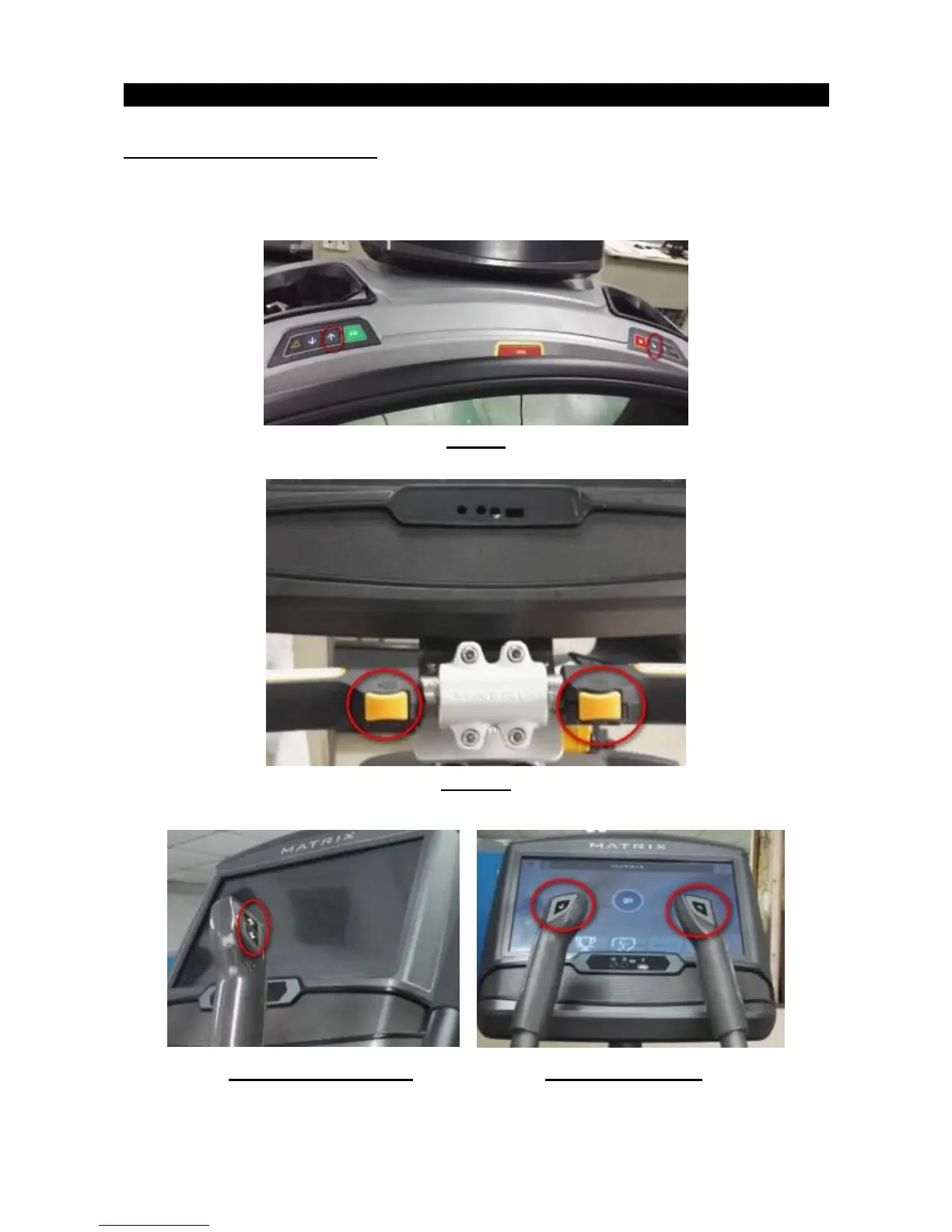

7.1 How to enter Service Mode
Hold
“I
ncline U
p”+ “
Speed D
own”
on
Treadmills
an
d
“Resist
ance U
p”+ “Resis
tance
Down”
on
AURE
for 5 seconds
on the
W
elcome/Go
Screen.
For TM
For Bike
For EP without incline
Fo
r EP
with incline
Notes: (T) Treadmill, (A) Ascent Tr
ainer, (E) Elliptical, (U) u
pright Bike,(R) Recumbent Bike
27
29
Table of Contents
Default Chapter
2
Table of Contents
2
Chapter 1: Console Instruction
4
Serial Number Location
4
XR/XER/XIR Console Overview
5
Chapter 2: Xr Console Instruction
6
XR Console Description
6
XR Display Description
7
Set up XID Account for Via Fit
8
Connect Wi-Fi
8
XR Console Getting Started
8
Chapter 3: Xr Console Engineering Mode
10
Initial Setup
10
How to Enter Engineering Mode
10
Engineering Mode Functions Description
11
Other Information
12
Software Updating
12
Chapter 4: Xer/Xir Console Instruction
13
XER/XIR Console Description
13
Initial Setup
19
Model Type List
20
Chapter 5: Xer/Xir Console Settings
21
General
21
Update
22
Network Setup
23
Network Setup (Wifi Setup)
23
Weather
24
Application
24
Hardware
25
Restore Factory Defaults
25
Chapter 6: Xer/Xir Console Engineering Mode
26
How to Enter Engineering Mode
26
Engineering Mode Instruction
26
Chapter 7: Xer/Xir Console Service Mode
28
How to Enter Service Mode
28
General
29
Workout
31
Setup Defaults
33
Update
34
Network Setup
36
Weather
37
Application
38
Calibration
39
Hardware
40
Service
41
Errors
42
Restore Factory Defaults
43
Chapter 8: Troubleshooting
44
XR/XER/XIR Electrical Diagram
44
Console Doesn't Light up
49
Speed Does Not Display(for BK/EP/AS)
49
All or some Function Keys Do Not Respond (for XR)
50
Speaker and Audio Issue (for XER/XIR)
50
Chapter 9: Parts Replacement
51
Console Control Board Replacement
51
Overlay and Keypad Replacement
51
Touch Panel Replacement
52
Speaker Replacement
52
