J1: Fax/modem Extension Bracket
The fax/modem extension bracket is supplied with this mainboard.
1. Locate the J1 fax/modem connector on the mainboard.
2. Remove the expansion slot blanking plate from the system chassis
that is adjacent to the fax/modem connector.

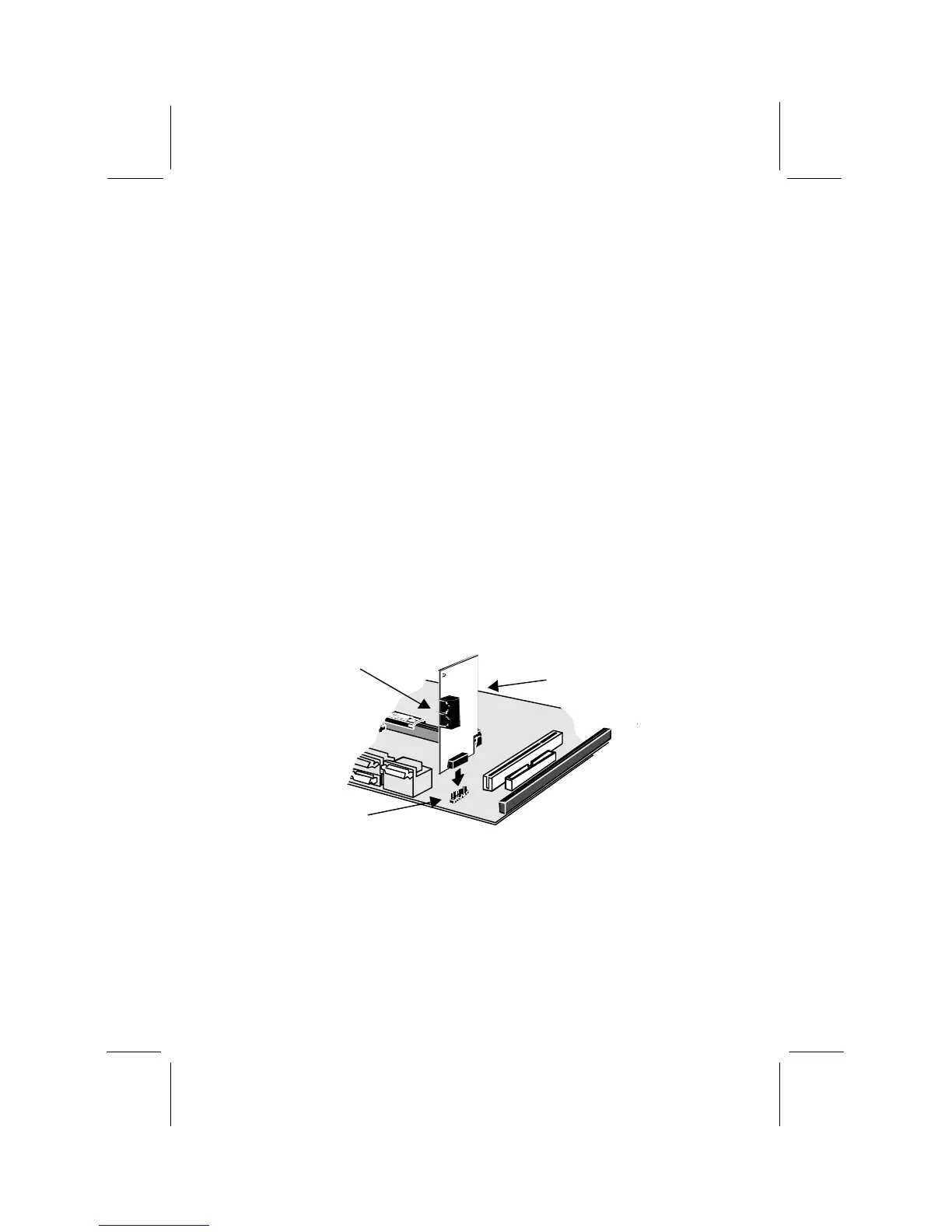

3. Install the fax/modem extension bracket on to the MDM1 connector
as shown below. The RJ11 Line and Telephone sockets on the
bracket are positioned in the expansion slot with the removed
blanking plate.
