enhanced IDE drives. Ensure that your case has sufficient power and
space for all the drives that you intend to install.
The mainboard has a set of I/O ports on the rear edge. Ensure that your
case has an I/O template that supports the I/O ports and expansion slots.
Mainboard Guide

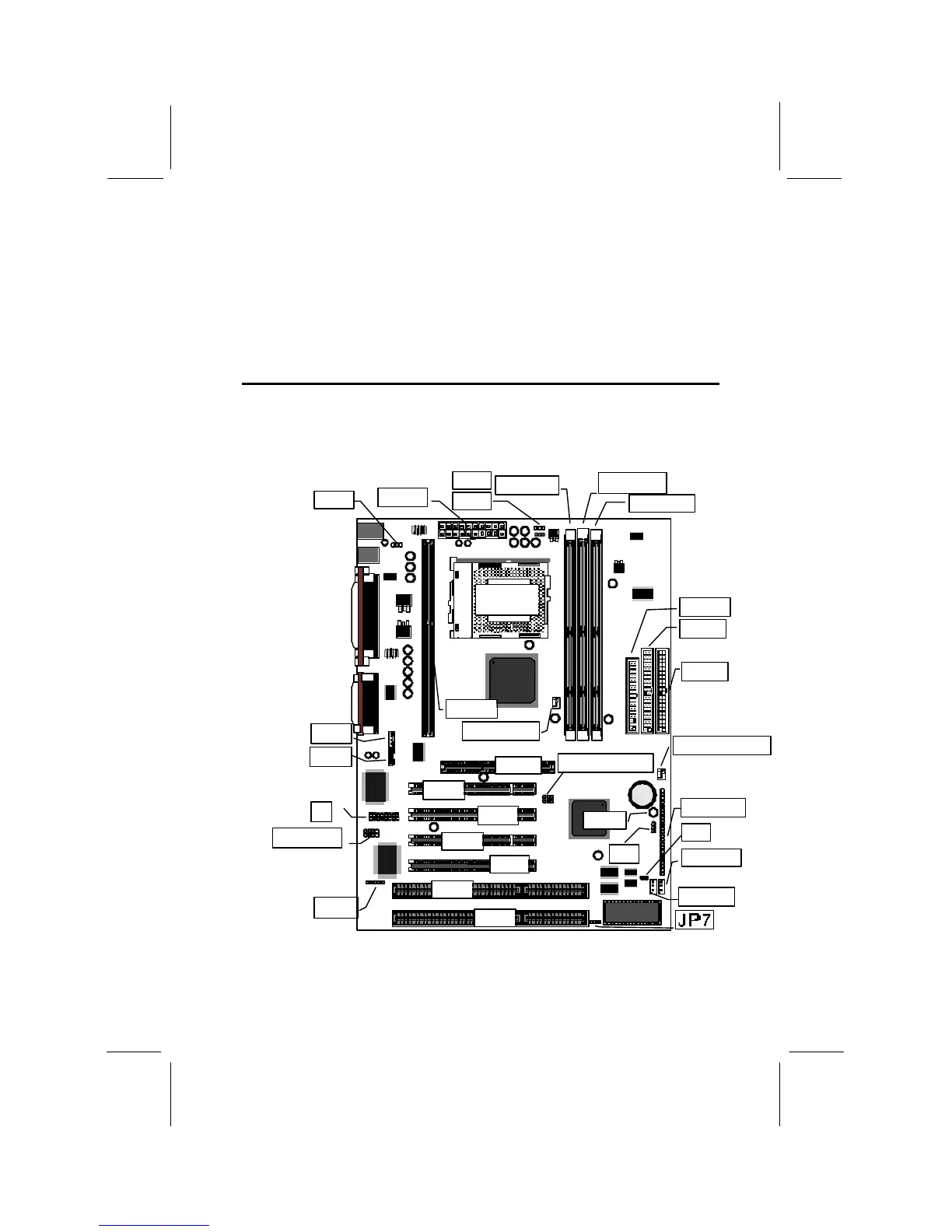

Use the following illustration and key to identify the components on your
mainboard.
JP2
ATX1
JP9
DIMM1
DIMM2
DIMM3
CD1
J1
SPDIF1
CD2
SIR1
FDD1
IDE2
IDE1
CASEFAN1
JP1
LED1
PANEL
WOM1
WOL1
SOCKET
PGA370
SLOT1
AGP1
PCI1
PCI2
PCI3
PCI4
ISA1
ISA2
SIDEBAND1
J2
CPUFAN1
JP4
