CAUTION
3
If you need to bend the exhaust
duct, please refer to the following:
Bending the duct, as in the diagram
below, can cause malfunction.
1. Keep the exhaust duct in
a horizontal position when
attaching to the product.
2. Do not add or connect any
other pipes to the product as
this could cause the air
conditioner to malfunction.
Please note: For product
servicing always contact a
qualified engineer.
Fig 1
Clip B
Clip A

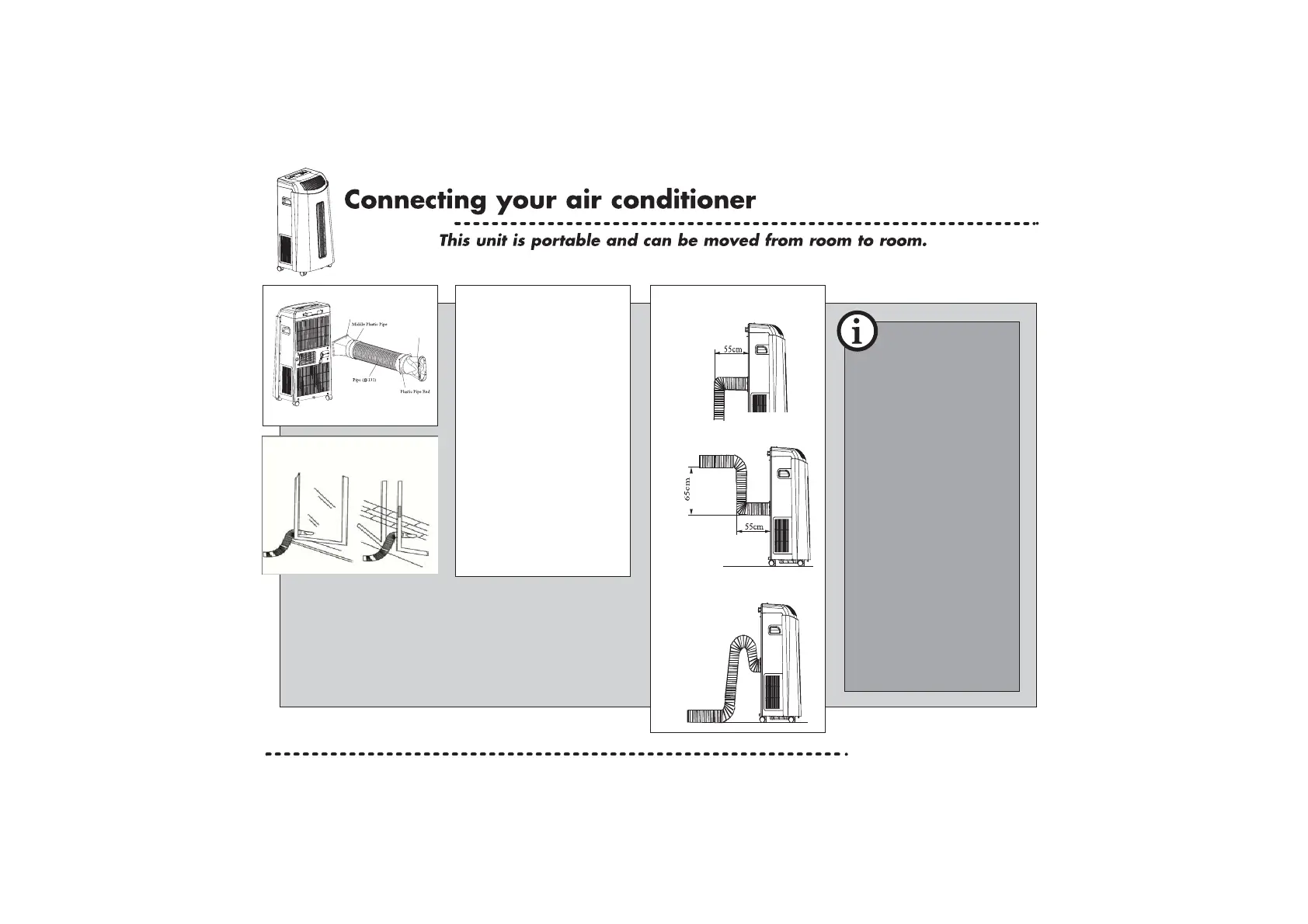

To connect the air exhaust:
1. Position the product close
to a window or outside door,
ie, Patio door.
2. Fix the square end of the
exhaust duct (Clip A) to the
exhaust terminal on the
product, see Fig. 1.
Attention: The length of the
air exhaust must be between
500mm-2000mm.
Please note that a window kit for attaching the exhaust
hose to a window is available through Partmaster,
(details at the back of the instruction book).
