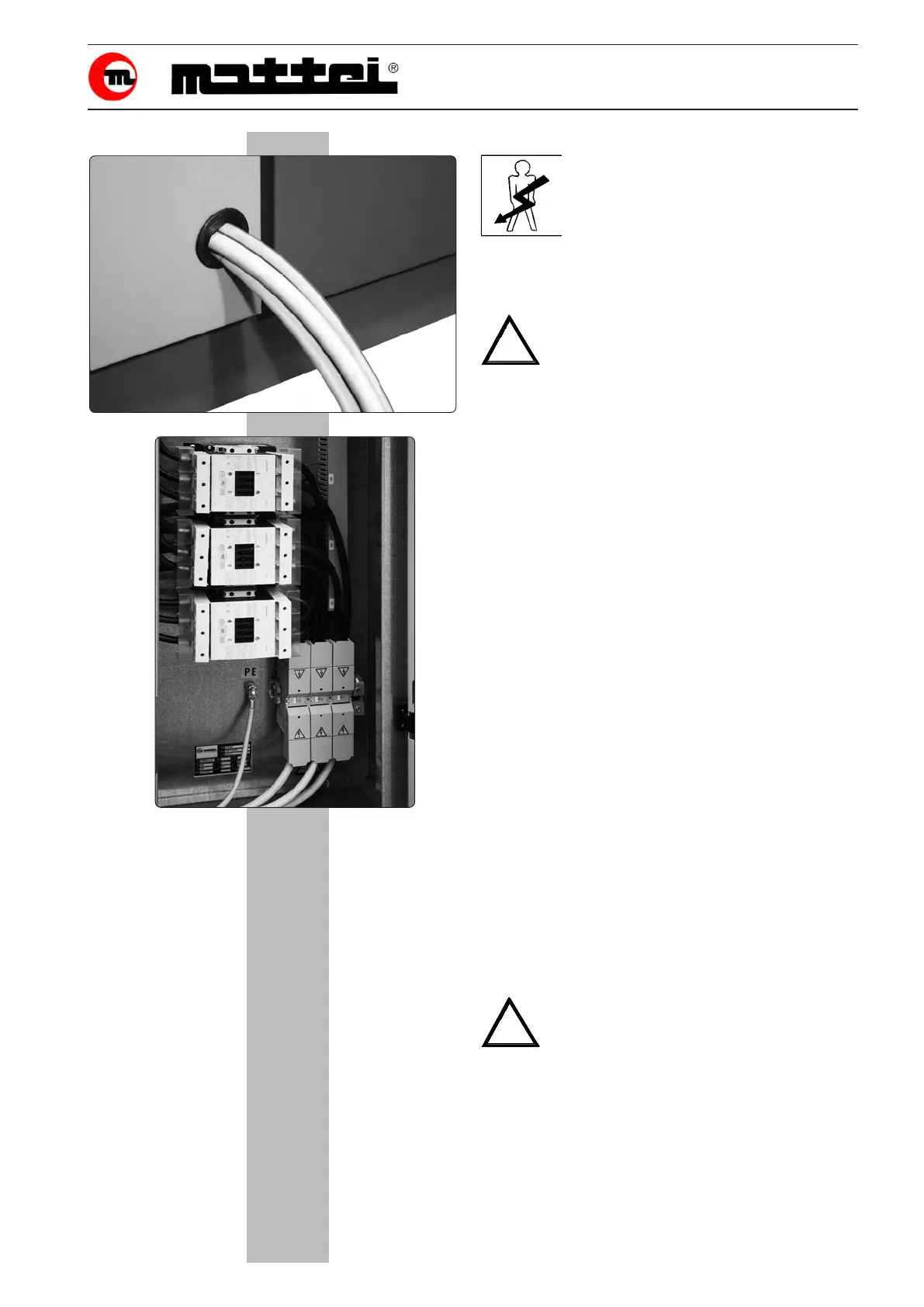

Installation
Electrical connection
Only qualied personnel should
make the electrical connections,
in compliance with current regula-
tions.
WARNING !!!
For safe maintenance of all com-
pressor components, including
the electric starter, the customer
should install a mains isolator
and a magneto-thermal switch of
suitable size as near as possible
to the machine.
The mains isolator and magneto-thermal switch
should be chosen by keeping into account the
start features of the electric motor.
Adapting the size of wires between the mains
isolator and the compressor starter should be
made using the values given on the “TECHNI-
CAL DATA” sheet.
All the machine auxiliary components are al-
ready connected to the start and control panel,
and are powered through a transformer.
For further details, use the specic electrical
diagram supplied with the machine.
WARNING !!!
Please note that the machine
should be ALWAYS connected to
the earth equipment.
